STHM-18KH - Scag Three-Wheel Riding Mower, 18hp Kohler (SN: 1001 - 9999) RIDER FRAME ASSEMBLY Parts Diagram

Three-Wheel Riding Mower, 18hp Kohler

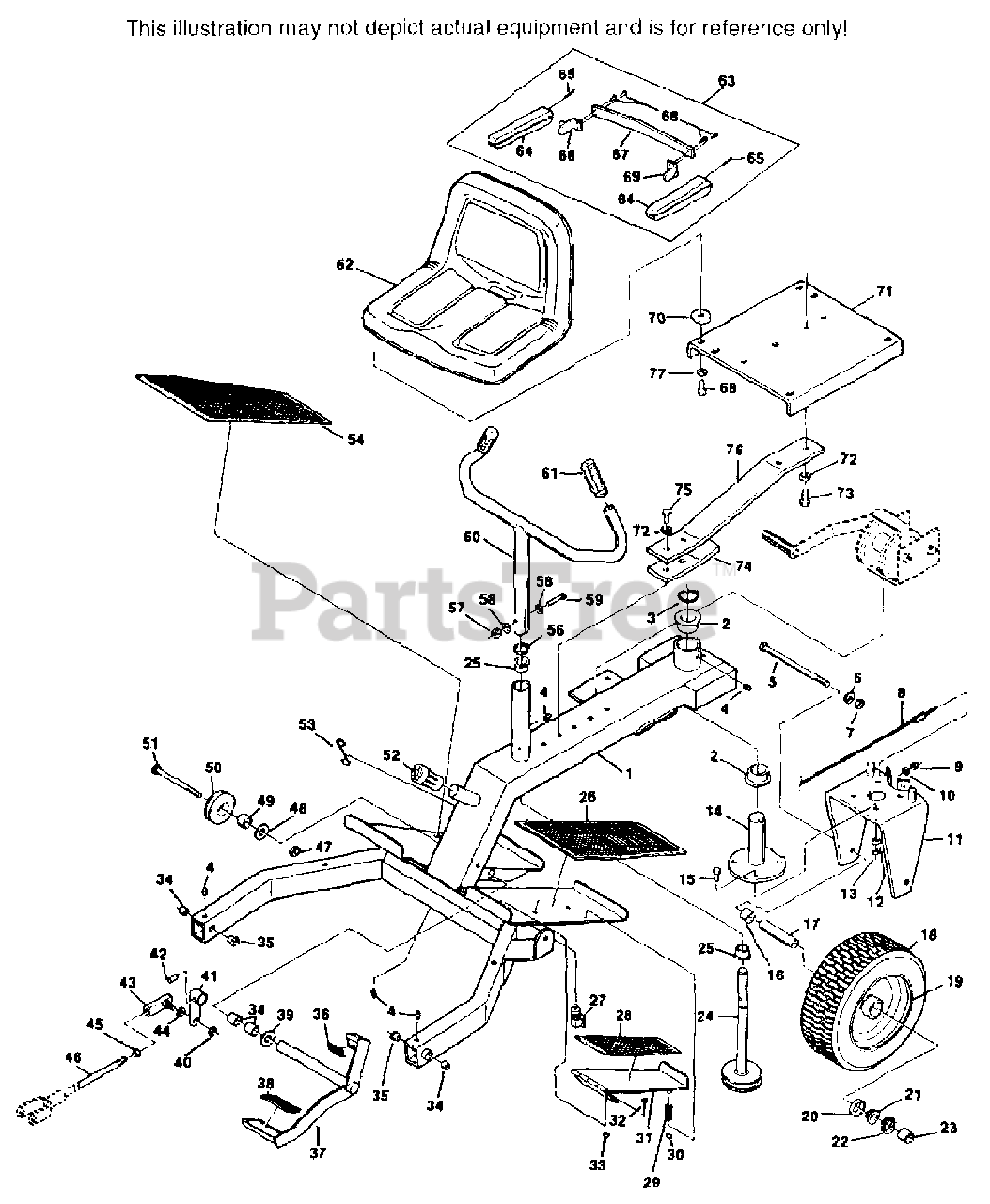

RIDER FRAME ASSEMBLY Parts Diagram

  • Title

1

Scag 45263

STEERING FRAME(INCL. BUSHINGS & GREASE
(Superseded to 46715)

$1472.99

$

Usually ships in 2-12 days

0

2

Scag 48100-02

BRONZE BUSHING

$3.99

$

In Stock, only 2 left!

0

3

Scag 04050-05

RETAINING RING, 1-1/8 EXTERNAL

$0.99

$

In Stock, Qty 20+

0

4

Scag 48114-01

GREASE FITTING
(Superseded to 48114-04)

$1.49

$

In Stock, Qty 20+

0

5

BOLT, HEX HD. 5/8-11 X 9

$

$

Not available

6

LOCK WASHER, 5/8 SPRING

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

7

HEX NUT, 5/8-11

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

8

Scag 48042

CABLE, STEERING
(Superseded to 48828)

$142.99

$

In Stock, only 1 left!

0

9

HEX NUT, 1/4-28 LOCK

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

10

FLAT WASHER, 1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

11

Scag 45035

REAR WHEEL YOKE

$184.99

$

Usually ships in 2-12 days

0

12

LOCK WASHER, 3/8 SPRING

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

13

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

14

Scag 45008

REAR WHEEL PIVOT

$144.99

$

Usually ships in 2-12 days

0

15

BOLT, HEX HD., 3/8-16 X 1-3/8

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

16

Scag 43020-02

SPACER, REAR WHEEL, LONG

$26.99

$

Usually ships in 2-12 days

0

17

Scag 43021

SLEEVE, REAR WHEEL

$50.99

$

Usually ships in 2-12 days

0

18

Scag 48005-01

REAR WHEEL ASSY.(INCL. 19, 20, 21, 22)
(Superseded to 48005)

$380.99

$

Usually ships in 2-12 days

0

19

Scag 48005-03

RIM ONLY
(Superseded to 481894)

$312.99

$

In Stock, only 1 left!

0

20

Scag 48005-04

BEARING CUP
(Superseded to 481895)

$19.99

$

Usually ships in 2-12 days

0

21

Scag 48005-05

BEARING CONE
(Superseded to 481896)

$22.99

$

In Stock, only 1 left!

0

22

Scag 48005-06

SEAL, GREASE
(Superseded to 481897)

$9.49

$

In Stock, only 1 left!

0

23

Scag 43020-01

SPACER, REAR WHEEL, SHORT

$44.99

$

Usually ships in 2-12 days

0

24

Scag 45009

STEERING SHAFT

$210.99

$

Usually ships in 2-12 days

0

25

Scag 48100-07

BRONZE BUSHING
(Superseded to 48100-01)

$2.99

$

In Stock, Qty 5

0

26

Scag 48369

PAD, LH

$

$

Not available

27

Scag 48026

SWITCH, FOOT SAFETY
(Superseded to 481476)

$58.99

$

Usually ships in 2-12 days

0

28

Scag 48370

PAD, SAFETY PEDAL

$5.49

$

Usually ships in 2-12 days

0

29

Scag 48049

SPRING, FOOT SAFETY SWITCH
(Superseded to 481056)

$30.99

$

Usually ships in 2-12 days

0

30

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 10

0

31

Scag 45175

PEDAL, FOOT SAFETY SWITCH

$

$

Not available

32

SCREW, SLOTTED FLAT HD # 10-32 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

34

Scag 48100-06

BRONZE BUSHING

$1.49

$

In Stock, only 1 left!

0

35

Scag 48100-03

BRONZE BUSHING

$2.99

$

Usually ships in 2-12 days

0

36

Scag 48338

PAD, FOOT PEDAL, REVERSE

$1.49

$

In Stock, only 1 left!

0

37

Scag 45151

FOOT PEDAL

$161.99

$

Usually ships in 2-12 days

0

38

Scag 48337

PAD, FOOT PEDAL, FORWARD

$1.49

$

In Stock, only 2 left!

0

39

FLAT WASHER, 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

40

HEX LOCKNUT, 3/8-24

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

41

Scag 45264

FOOT PEDAL ARM
(Superseded to 45506)

$45.99

$

Usually ships in 2-12 days

0

42

Scag 04065-01

PIN, DRIVE LOCK, 3/16 X 1-1/4

$2.49

$

Usually ships in 2-12 days

0

43

Scag 48118

BALL JOINT

$25.99

$

Usually ships in 2-12 days

0

44

FLAT WASHER, 3/8

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

45

HEX NUT, 3/8-24

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

46

Scag 44044

CONTROL ROD

$12.99

$

In Stock, only 1 left!

0

47

Scag 04021-07

HEX NUT, ELASTIC STOP NUT, 1/2-13

$0.99

$

In Stock, Qty 20+

0

48

FLAT WASHER, 1/2(.531 X 1.062 X .095)

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

49

Scag 48100-04

BRONZE BUSHING

$0.99

$

In Stock, only 4 left!

0

50

Scag 48208

PULLEY, WINCH CABLE

$75.99

$

Usually ships in 2-12 days

0

51

BOLT, HEX HD., 1/2-13 X 5-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

52

Scag 48097

BUMPER STOP COVER

$

$

Not available

54

Scag 48465

PAD, RH

$

$

Not available

56

Scag 04050-03

RETAINING RING, 7/8 EXTERNAL

$0.99

$

In Stock, Qty 5

0

57

HEX NUT, 5/16-18 CENTER LOCK

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

58

FLAT WASHER, 11/32 X 11/16 X 16 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

59

BOLT, HEX HD., 5/16-18 X 1-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

60

Scag 46029

STEERING HANDLE(INCL. 61)

$138.99

$

Usually ships in 2-12 days

0

61

Scag 48159

GRIP

$3.49

$

In Stock, Qty 8

0

62

Scag 48014-01

SEAT ONLY
(Superseded to 482027)

$651.99

$

Usually ships in 2-12 days

0

63

Scag 48014-02

ARM REST KIT(INC. 64,65,66,67,68,69)

$

$

Not available

64

Scag 48014-03

ARM REST

$

$

Not available

65

SETSCREW, 3/8-16 X 3/4 FLAT POINT

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

66

Scag 48014-04

MOUNTING BRACKET, RH

$

$

Not available

67

Scag 48014-07

BACK STRAP

$

$

Not available

68

BOLT, HEX HD., 5/16-18 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

69

Scag 48014-05

MOUNTING BRACKET, LH

$

$

Not available

70

Scag 04041-11

FLAT WASHER, 13/32 X 1-1/2 X 7 GA.

$1.99

$

In Stock, Qty 5

0

71

Scag 45210

SEAT PLATE

$125.99

$

In Stock, only 1 left!

0

72

LOCK WASHER, 7/16 SPRING

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

73

BOLT, HEX HD., 3/8-16 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

74

Scag 42366

REINFORCEMENT, SEAT SPRING

$50.99

$

Usually ships in 2-12 days

0

75

BOLT, HEX HD., 7/16-14 X 1-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

76

Scag 42026

SEAT SPRING

$73.99

$

Usually ships in 2-12 days

0

77

LOCK WASHER, 5/16 SPRING

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available
