STHM-18KH - Scag Three-Wheel Riding Mower, 18hp Kohler (SN: 1001 - 9999) CUTTER DECK SM-61 Parts Diagram

Three-Wheel Riding Mower, 18hp Kohler

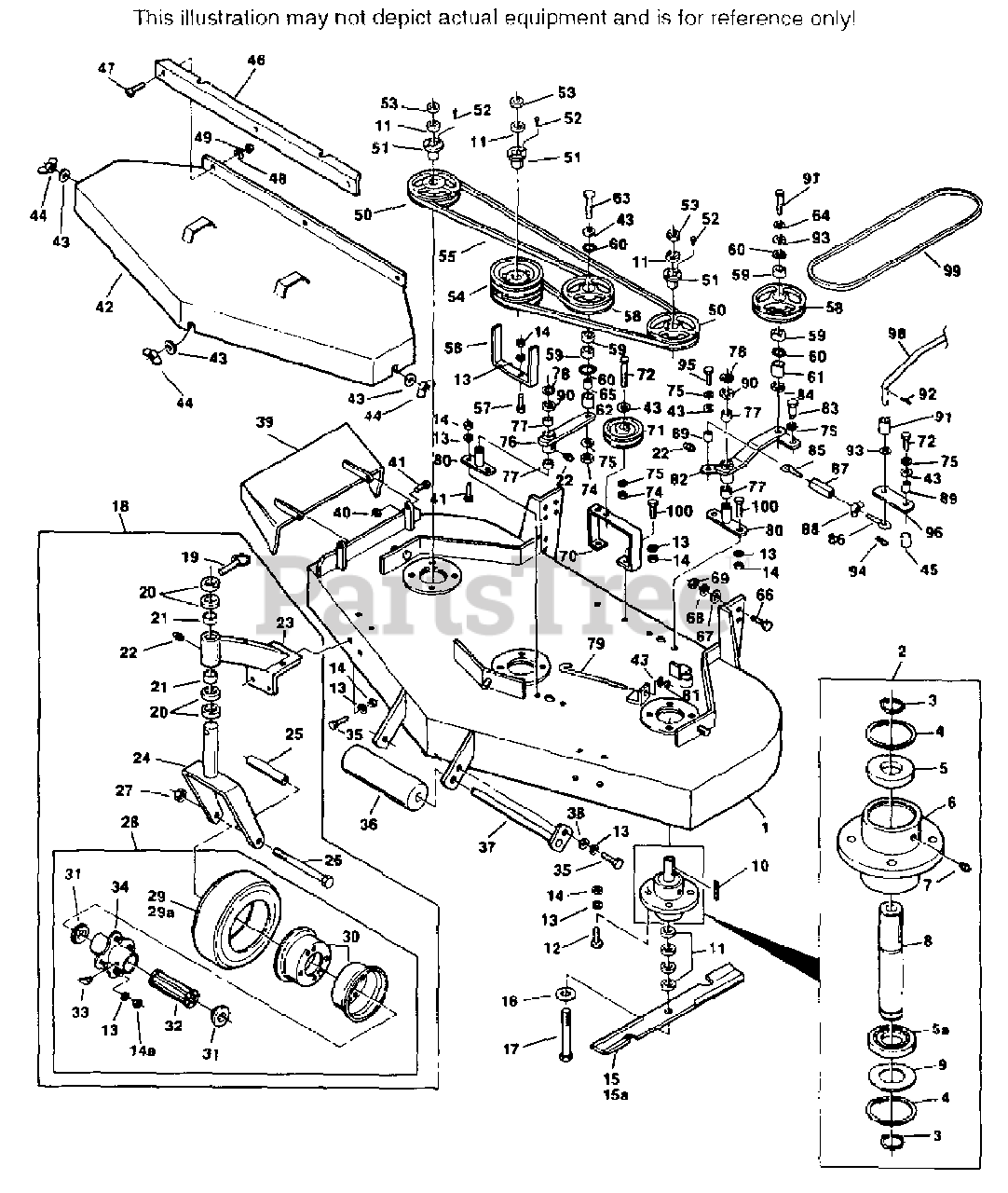

CUTTER DECK SM-61 Parts Diagram

  • Title

1

Scag 46150

CUTTER DECK(INCL. DECAL)
(Superseded to 461580)

$

$

Not available

2

Scag 46020

CUTTER SPINDLE ASSY.(INCL. 3-9)
(Superseded to 461663)

$257.99

$

In Stock, Qty 20+

0

3

Scag 04050-04

RETAINING RING, 1" EXT.-INVERTED

$1.99

$

In Stock, Qty 5

0

4

Scag 04050-07

RETAINING RING, 2-7/16 INT. BASIC

$3.99

$

Usually ships in 2-12 days

0

5

Scag 48101-01

BEARING, CUTTER SPINDLE UPPER
(Superseded to 48101-02)

$24.99

$

Usually ships in 2-12 days

0

5A

Scag 48101-02

BEARING, CUTTER SPINDLE LOWER

$24.99

$

Usually ships in 2-12 days

0

6

Scag 41001

SPINDLE HOUSING

$

$

Not available

7

Scag 48114-02

GREASE FITTING, STR. 5/16 SERR.

$1.99

$

In Stock, only 3 left!

0

8

Scag 43001-02

SPINDLE, CUTTER BLADE

$52.99

$

In Stock, only 3 left!

0

9

Scag 04041-02

WASHER, 1-5/16 X 2-7/16 X 16 GA.

$18.99

$

In Stock, only 2 left!

0

10

Scag 04063-08

KEY, 1/4 X 1/4 X 2

$1.49

$

In Stock, Qty 20+

0

11

Scag 43038

SPACER, CUTTER BLADE
(Superseded to 43592)

$4.49

$

In Stock, Qty 20+

0

12

BOLT, HEX HD., 5/16-18 X 1-1/4

$

$

Not available

13

LOCKWASHER, SPRING, 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

14

HEX NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

14A

HEX NUT, 5/16-24

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

15

Scag 48111

CUTTER BLADE, 21" STD.
(Superseded to 481708)

$26.99

$

In Stock, Qty 20+

0

16

Scag 04040-10

FLAT WASHER, 5/8W

$0.99

$

In Stock, Qty 11

0

17

Scag 04001-41

BOLT, HEX HD., 5/8-11 X 9-1/2

$12.99

$

In Stock, Qty 20+

0

18

Scag 46079

CASTER ASSY, COMP.(INCL. 19-28)

$395.99

$

Usually ships in 2-12 days

0

19

Scag 04066-01

QUICK PIN

$8.49

$

In Stock, Qty 16

0

20

Scag 43037-01

SPACER, CASTER YOKE, 1/2 LONG

$2.49

$

In Stock, Qty 20+

0

21

Scag 48100-01

BRONZE BEARING

$2.99

$

In Stock, Qty 20+

0

22

Scag 48114-01

GREASE FITTING, STR, 1/4-28
(Superseded to 48114-04)

$0.99

$

In Stock, Qty 20+

0

23

Scag 46082

SUPPORT ASSY.(INCL. 21-22)

$148.99

$

In Stock, only 1 left!

0

24

Scag 45006

CASTER YOKE WLD.

$65.99

$

In Stock, Qty 11

0

25

Scag 43022

SLEEVE, CASTER WHEEL BEARING

$6.99

$

In Stock, Qty 20+

0

26

Scag 04001-37

BOLT, HEX HD., 1/2-13 X 5-1/2

$4.49

$

In Stock, Qty 20+

0

27

HEX LOCKNUT, 1/2-13

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

28

Scag 48307-01

WHEEL ASSY.(INCL. 13-14, 14A, 29-34)
(Superseded to 48307)

$151.99

$

Usually ships in 2-12 days

0

29

Scag 48307-02

TIRE ONLY, CASTER WHEEL
(Superseded to 481774)

$87.99

$

Usually ships in 2-12 days

0

29A

Scag 48006-03

INNER TUBE ONLY, CASTER WHEEL
(Superseded to 481773)

$20.99

$

In Stock, only 2 left!

0

30

Scag 48307-04

RIM PAIR, CASTER WHEEL
(Superseded to 481772)

$70.99

$

In Stock, only 1 left!

0

31

Scag 48006-07

RETAINER, BEARING, CASTER WHEEL
(Superseded to 481770)

$4.99

$

In Stock, Qty 20+

0

32

Scag 48006-06

ROLLER BEARING, CASTER WHEEL
(Superseded to 481769)

$27.99

$

In Stock, Qty 20+

0

32

Scag 48006-06

ROLLER BEARING, CASTER WHEEL
(Superseded to 481769)

$27.99

$

In Stock, Qty 20+

0

33

Scag 48114-03

GREASE FITTING, 45' 1/4-28

$10.99

$

In Stock, Qty 16

0

34

Scag 48006-05

HUB ASSY. W/BOLTS
(Superseded to 481768)

$64.99

$

Usually ships in 2-12 days

0

35

BOLT, HEX HD., 5/16-18 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

36

Scag 48038

GUIDE ROLLER

$28.99

$

In Stock, Qty 17

0

37

Scag 45046

ROLLER SHAFT WLD.
(Superseded to 45944)

$21.99

$

In Stock, Qty 20+

0

38

WASHER, 11/32 X 11/16 X 16 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

39

Scag 45029

DISCHARGE CHUTE WLD.
(Superseded to 461292)

$68.99

$

In Stock, only 2 left!

0

40

HEX NUT, 5/16-18 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

41

BOLT, HEX HD., 5/16-18 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

42

Scag 45032

BELT COVER
(Superseded to 46151)

$

$

Not available

43

WASHER, 25/64 X 15/16 X 12 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

44

Scag 04022-04

WING NUT, 3/8-16
(Superseded to 04029-03)

$2.49

$

In Stock, Qty 20+

0

45

Scag 43123

SPACER

$22.99

$

Usually ships in 2-12 days

0

46

Scag 42045

BELT COVER SKIRT

$

$

Not available

47

MACH SCRW, 1/4-20 X 1/2 TRUSS HD.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

48

LOCKWASHER, SPRING, 1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

49

HEX NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

50

Scag 48127

PULLEY(INCL. 51-52)
(Superseded to 482744)

$

$

Not available

51

Scag 48141

TAPER HUB

$29.99

$

In Stock, Qty 5

0

52

BOLT, HEX HD., 1/4-20 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

53

HEX NUT, 5/8-11

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

54

Scag 48128

PULLEY, DOUBLE(INCL. 51-52)
(Superseded to 48940)

$184.99

$

Usually ships in 2-12 days

0

55

Scag 48084

BELT, BLADE DRIVE

$142.99

$

Usually ships in 2-12 days

0

56

Scag 42063

BELT GUIDE

$

$

Not available

57

BOLT, HEX HD., 5/16-18 X 1-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

58

Scag 48062

PULLEY IDLER

$85.99

$

Usually ships in 2-12 days

0

59

Scag 48102

BEARING

$11.99

$

Usually ships in 2-12 days

0

60

Scag 04050-06

RETAINING RING, 1-9/16 INT. BASIC

$2.49

$

Usually ships in 2-12 days

0

61

Scag 43045

SLEEVE, IDLER BEARING

$

$

Not available

62

Scag 43040

SPACER, IDLER BEARING

$

$

Not available

63

BOLT, HEX HD., 3/8-16 X 2-3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

64

LOCKWASHER, SPRING 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

65

Scag 43105

SLEEVE, IDLER PULLEY

$

$

Not available

66

BOLT, HEX HD., 1/2-13 X 1-1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

66

BOLT, HEX HD., 1/2-13 X 1-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

67

FLAT WASHER, 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

68

LOCKWASHER, 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

69

HEX NUT, 1/2-13, ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

70

Scag 42536

IDLER PULLEY SUPPORT

$

$

Not available

71

Scag 48413

PULLEY, BELT GUIDE

$39.99

$

Usually ships in 2-12 days

0

72

BOLT, HEX HD., 3/8-16 X2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

74

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

75

LOCKWASHER, SPRING, 3/8

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

76

Scag 46081

IDLER ARM ASSY.(INCL. 22 & 77)

$46.99

$

Usually ships in 2-12 days

0

77

Scag 48100-05

BRONZE BEARING

$0.99

$

In Stock, Qty 13

0

78

Scag 04050-02

RETAINING RING, 3/4 EXT.-"E"

$0.99

$

In Stock, Qty 7

0

79

Scag 43028

ROD, IDLER PULL, J

$4.99

$

In Stock, only 2 left!

0

80

Scag 45037

IDLER PIVOT WLD.

$30.99

$

Usually ships in 2-12 days

0

81

HEX NUT, 3/8-16 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

82

Scag 46260

IDLER ARM ASSY.(INCL. 22 & 77)

$

$

Not available

83

Scag 43054

SHOULDER BOLT

$

$

Not available

84

Scag 43041

SPACER, IDLER

$4.99

$

Usually ships in 2-12 days

0

85

Scag 04070-02

EYEBOLT, LH

$

$

Not available

86

Scag 04070-01

EYEBOLT, RH

$26.99

$

In Stock, only 1 left!

0

87

Scag 43025

TURNBUCKLE

$14.99

$

In Stock, only 1 left!

0

88

Scag 04022-02

WING NUT, 5/16-18

$7.99

$

Usually ships in 2-12 days

0

89

Scag 43042

SLEEVE, CAM CLUTCH

$6.49

$

In Stock, only 1 left!

0

90

Scag 04041-08

WASHER 3/4(49/64 X 1-1/4 X 16 GA.

$0.99

$

In Stock, Qty 20+

0

91

Scag 43043

SLEEVE, CLUTCH ROD

$12.99

$

Usually ships in 2-12 days

0

92

COTTER PIN, 3/32 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

93

WASHER, 33/64 X 1 X 16 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

94

Scag 04062-01

HAIR PIN, LARGE

$0.99

$

In Stock, Qty 20+

0

95

BOLT, HEX HD., 3/8-16 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

96

Scag 42057

CAM LINK

$84.99

$

Usually ships in 2-12 days

0

97

BOLT, HEX HD., 1/2-20 X 2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

98

Scag 44054

ROD, BLADE ENGAGE(APPROX. 27" LONG)

$

$

Not available

99

Scag 48083

BELT, CUTTER DRIVE

$53.99

$

In Stock, only 1 left!

0

100

Scag 45212

IDLER PIVOT WLD.

$29.99

$

In Stock, only 1 left!

0
