STH-18KH - Scag Three-Wheel Riding Mower, 18hp Kohler (SN: 1001 - 9999) HYDROSTATIC TRANSAXLE EATON 850 Parts Diagram

Three-Wheel Riding Mower, 18hp Kohler

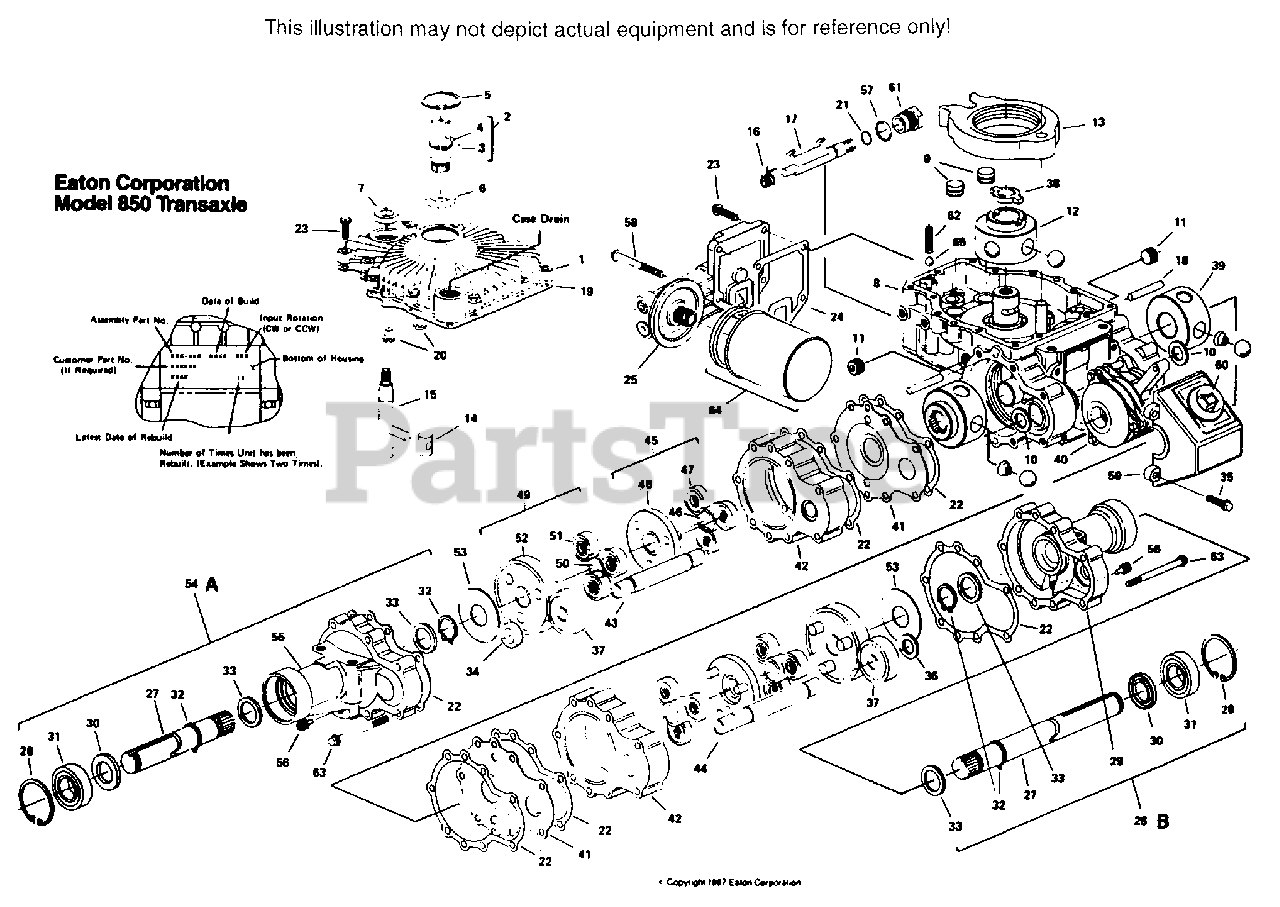

HYDROSTATIC TRANSAXLE EATON 850 Parts Diagram

  • Title

1

COVER SUBASSEMBLY S/A

$

$

Not available

2

SHAFT, INPUT, S/A CONTAINS ITEMS 3, 4

$

$

Not available

3

BEARING, INPUT SHAFT

$

$

Not available

4

RING, RETAINING, EXTERNAL

$

$

Not available

5

RING, RETAINING, INTERNAL

$

$

Not available

6

SEAL, INPUT SHAFT

$

$

Not available

7

SEAL, CONTROL SHAFT

$

$

Not available

8

HOUSING, S/A CW CONTAINS ITEMS 9, 10

$

$

Not available

9

PISTON, DAMPENING, S/A

$

$

Not available

10

SEAL, BRAKE SHAFT

$

$

Not available

11

PLUG, SOCKET PIPE

$

$

Not available

12

PUMP ROTOR-BALL-PIN, S/A

$

$

Not available

13

CAM RING, S/A

$

$

Not available

14

INSERT

$

$

Not available

15

CONTROL SHAFT, S/A

$

$

Not available

16

SPRING, DUMP VALVE

$

$

Not available

17

BRACKET, DUMP VALVE(ALUMINUN SHAFT)

$

$

Not available

18

DOWEL

$

$

Not available

19

GASKET, COVER

$

$

Not available

20

BUTTON

$

$

Not available

21

"O"-RING, DUMP VALVE BRACKET

$

$

Not available

22

GASKET, AXLE HOUSING

$

$

Not available

23

SCREW, 1/4-20 HEX FLANGE

$

$

Not available

24

GASKET, FILTER BASE OR PORT PLATE

$

$

Not available

25

FILTER BASE, S/A

$

$

Not available

26

AXLE HOUSING, S/A SIDE B(FOR 850-030 &

$

$

Not available

26

AXLE HOUSING S/A SIDE B(FOR 850-026)

$

$

Not available

27B

SHAFT, AXLE SIDE B(FOR 850-030 & 021)

$

$

Not available

27B

SHAFT, AXLE SIDE B(FOR 850-026 ONLY)

$

$

Not available

27A

SHAFT, AXLE SIDE A

$

$

Not available

28

RETAINING RING, INTERNAL

$

$

Not available

29

HOUSING, AXLE B

$

$

Not available

30

SEAL, AXLE SHAFT

$

$

Not available

31

BEARING, AXLE SHAFT

$

$

Not available

32

RETAINING RING

$

$

Not available

33

WASHER, THRUST

$

$

Not available

34

SPACER, THICK

$

$

Not available

35

SCREW, 1/4 SELF TAPPING

$

$

Not available

36

SPACER, THIN

$

$

Not available

37

BRAKE GEAR

$

$

Not available

38

DRIVE

$

$

Not available

39

MOTOR, ROTOR-BALL, A&B S/A, 15T(FOR 850-030)

$

$

Not available

39

MOTOR, ROTOR-BALL, A&B S/A, 18T(FOR 850-021

$

$

Not available

40

PARKING BRAKE ASSY.

$

$

Not available

41

PLATE, WEAR

$

$

Not available

42

RING GEAR, A&B S/A, 57T(FOR 850-030)

$

$

Not available

42

RING GEAR, A&B S/A, 54T(FOR 850-021 & 026)

$

$

Not available

43

BRAKE SHAFT - SIDE A

$

$

Not available

44

BRAKE SHAFT - SIDE B

$

$

Not available

45

PLANETARY GEAR, FIRST, A&B S/A(FOR 850-030)

$

$

Not available

45

PLANETARY GEAR, FIRST, A&B S/A(FOR 850-021

$

$

Not available

46

SUN GEAR, FIRST, 15T

$

$

Not available

47

PRIMARY CARRIER, A&B S/A, 15T

$

$

Not available

48

PLANETARY GEAR, FIRST, A&B S/A, 21T

$

$

Not available

49

PLANETARY GEAR, SECOND, A&B S/A(FOR 850-030)

$

$

Not available

49

PLANETARY GEAR, SECOND, A&B S/A(FOR 850-021

$

$

Not available

50

SUN GEAR, SECOND, 15T

$

$

Not available

51

SECONDARY CARRIER, A&B S/A

$

$

Not available

52

PLANETARY GEAR, SECOND, A&B S/A, 21T

$

$

Not available

53

WASHER, THRUST

$

$

Not available

54

AXLE HOUSING, S/A SIDE A(FOR 850-030 &

$

$

Not available

55

HOUSING AXLE A

$

$

Not available

56

PLUG, MAGNETIC

$

$

Not available

57

"O"-RING, DUMP VALVE

$

$

Not available

58

SCREW, 1/4-20 HEX FLANGE

$

$

Not available

59

COVER, PARKING BRAKE

$

$

Not available

60

BOOT, DUST

$

$

Not available

61

DUMP VALVE NUT

$

$

Not available

62

SPRING, RELIEF VALVE

$

$

Not available

63

SCREW, 1/4-20 HEX FLANGE

$

$

Not available

64

FILTER, W/SEAL

$

$

Not available

65

BALL, GRADE 200

$

$

Not available
