STH-13KH - Scag Three-Wheel Riding Mower, 13hp Kohler (SN: 1001 - 9999) RIDER FRAME ASSEMBLY Parts Diagram

Three-Wheel Riding Mower, 13hp Kohler

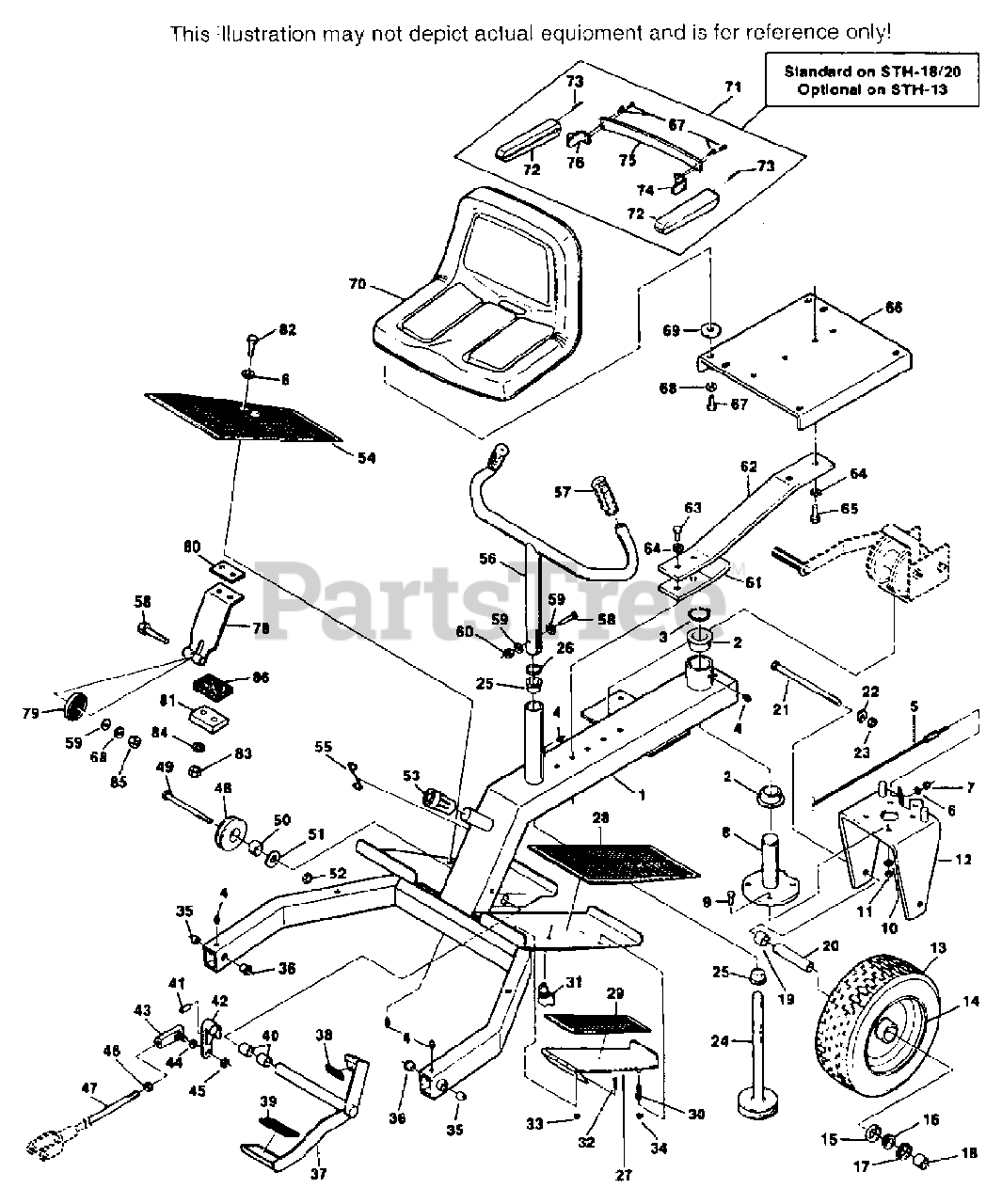

RIDER FRAME ASSEMBLY Parts Diagram

  • Title

1

Scag 46248

STEERING FRAME(INCL. BUSHINGS & GREASE

$

$

Not available

2

Scag 48100-02

BRONZE BUSHING

$3.49

$

In Stock, only 2 left!

0

3

Scag 04050-05

RETAINING RING, 1-1/8 EXTERNAL

$0.99

$

In Stock, Qty 20+

0

4

Scag 48114-01

GREASE FITTING
(Superseded to 48114-04)

$0.99

$

In Stock, Qty 20+

0

5

Scag 48153

CABLE, STEERING
(Superseded to 461100)

$66.99

$

Usually ships in 2-12 days

0

6

FLAT WASHER, 1/4

$

$

Not available

7

HEX NUT, 1/4-28 LOCK

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

8

Scag 45008

REAR WHEEL PIVOT

$140.99

$

Usually ships in 2-12 days

0

9

BOLT, HEX HD., 3/8-16 X 1-3/8

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

10

LOCK WASHER, 3/8 SPRING

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

11

HEX NUT, 3/8-16

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

12

Scag 45035

REAR WHEEL YOKE

$180.99

$

Usually ships in 2-12 days

0

13

Scag 48005-01

REAR WHEEL ASSEMBLY(INCL. 14, 15, 16, 17)
(Superseded to 48005)

$371.99

$

Usually ships in 2-12 days

0

14

Scag 48005-03

RIM ONLY
(Superseded to 481894)

$304.99

$

In Stock, only 1 left!

0

15

Scag 48005-04

BEARING CUP
(Superseded to 481895)

$18.99

$

Usually ships in 2-12 days

0

16

Scag 48005-05

BEARING CONE
(Superseded to 481896)

$21.99

$

In Stock, only 1 left!

0

17

Scag 48005-06

SEAL, GREASE
(Superseded to 481897)

$8.99

$

In Stock, only 1 left!

0

18

Scag 43020-01

SPACER, REAR WHEEL SHORT

$43.99

$

Usually ships in 2-12 days

0

19

Scag 43020-02

SPACER, REAR WHEEL LONG

$25.99

$

Usually ships in 2-12 days

0

20

Scag 43021

SLEEVE, REAR WHEEL

$48.99

$

Usually ships in 2-12 days

0

21

BOLT, HEX HD., 5/8-11 X 9

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

22

LOCK WASHER, 5/8 SPRING

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

23

HEX NUT, 5/8-11

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

24

Scag 45009

STEERING SHAFT

$205.99

$

Usually ships in 2-12 days

0

25

Scag 48100-07

BRONZE BUSHING
(Superseded to 48100-01)

$2.99

$

In Stock, Qty 13

0

26

Scag 04050-03

RETAINING RING, 7/8" EXTERNAL

$0.99

$

In Stock, Qty 5

0

27

Scag 45175

PEDAL, FOOT SAFETY SWITCH

$

$

Not available

28

Scag 48369

PAD, LH

$

$

Not available

29

Scag 48370

PAD, SAFETY PEDAL

$5.49

$

Usually ships in 2-12 days

0

30

Scag 48049

SPRING, FOOT SAFETY SWITCH
(Superseded to 481056)

$29.99

$

Usually ships in 2-12 days

0

31

Scag 48026

SWITCH, FOOT SAFETY
(Superseded to 481476)

$56.99

$

Usually ships in 2-12 days

0

32

SCREW, SLOTTED FLAT HD., #10-32 X 3/4

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

33

HEX NUT, #10-32

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

34

Scag 04021-08

HEX NUT, ELASTIC STOP LOCK 1/4-20

$0.99

$

In Stock, Qty 9

0

35

Scag 48100-06

BRONZE BUSHING

$1.49

$

In Stock, only 1 left!

0

36

Scag 48100-03

BRONZE BUSHING

$2.99

$

Usually ships in 2-12 days

0

37

Scag 45151

FOOT PEDAL

$

$

Not available

38

Scag 48338

PAD, FOOT PEDAL REVERSE

$1.49

$

In Stock, only 1 left!

0

39

Scag 48337

PAD, FOOT PEDAL FORWARD

$1.49

$

In Stock, only 2 left!

0

40

Scag 48100-06

BRONZE BUSHING

$1.49

$

In Stock, only 1 left!

0

41

Scag 04065-01

PIN, DRIVE LOCK, 3/16 X 1-1/4

$2.49

$

Usually ships in 2-12 days

0

42

Scag 45209

FOOT PEDAL ARM

$

$

Not available

43

Scag 48118

BALL JOINT

$24.99

$

Usually ships in 2-12 days

0

44

FLAT WASHER, 3/8

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

45

HEX LOCKNUT, 3/8

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

46

HEX NUT, 3/8-24

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

47

Scag 44022

CONTROL ROD

$32.99

$

Usually ships in 2-12 days

0

48

Scag 48208

PULLEY, WINCH CABLE

$74.99

$

Usually ships in 2-12 days

0

49

BOLT, HEX HD., 1/2-13 X 5 1/2

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

50

Scag 48100-04

BRONZE BUSHING

$0.99

$

In Stock, only 4 left!

0

51

FLAT WASHER, 1/2(.531 X 1.062 X .095)

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

52

Scag 04021-07

HEX NUT, ELASTIC STOP LOCK 1/2-13

$0.99

$

In Stock, Qty 20+

0

53

Scag 48097

BUMPER STOP COVER

$

$

Not available

54

Scag 48336

PAD, RH

$

$

Not available

55

Scag 44028

RETAINER, WINCH CABLE

$

$

Not available

56

Scag 46036

STEERING HANDLE(INCL. 57)

$

$

Not available

57

Scag 48159

GRIP

$3.49

$

In Stock, Qty 8

0

58

BOLT, HEX HD., 5/16-18 X 1-1/2

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

59

FLAT WASHER, 11/32 X 11/16 X 16 GA.

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

60

HEX NUT, 5/16-18 CENTER LOCK

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

61

Scag 42366

REINFORCEMENT, SEAT SPRING

$

$

Not available

62

Scag 42026

SEAT SPRING

$71.99

$

Usually ships in 2-12 days

0

63

BOLT, HEX HD., 7/16-14 X 1-1/2

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

64

LOCK WASHER, 7/16 SPRING

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

65

BOLT, HEX HD., 3/8-16 X 1

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

66

Scag 45210

SEAT PLATE

$125.99

$

In Stock, only 1 left!

0

67

BOLT, HEX HD., 5/16-18 X 3/4

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

68

LOCK WASHER, 5/16 SPRING

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

69

Scag 04041-11

FLAT WASHER, 13/32 X 1-1/2 X 7 GA.

$1.99

$

In Stock, only 3 left!

0

70

Scag 48427

SEAT ONLY
(Superseded to 48592)

$

$

Not available

78

Scag 42527

SPRING, NEUTRAL

$24.99

$

Usually ships in 2-12 days

0

79

Scag 48409

BEARING, NEUTRAL DETENT

$13.99

$

Usually ships in 2-12 days

0

80

Scag 42528

SHIM, SPRING

$

$

Not available

81

Scag 42529

KEEPER, SPRING

$

$

Not available

82

BOLT, HEX HD., 1/4-20 X 1-1/4

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

83

HEX NUT, 1/4-20, ELASTIC STOP LOCK NUTS

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

84

LOCK WASHER 1/4

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

85

HEX NUT, 5/16-18

Note: COMMON HARDWARE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

86

Scag 48411

RUBBER BLOCK

$

$

Not available
