STH-13KH - Scag Three-Wheel Riding Mower, 13hp Kohler (SN: 1001 - 9999) ENGINE DECK Parts Diagram

Three-Wheel Riding Mower, 13hp Kohler

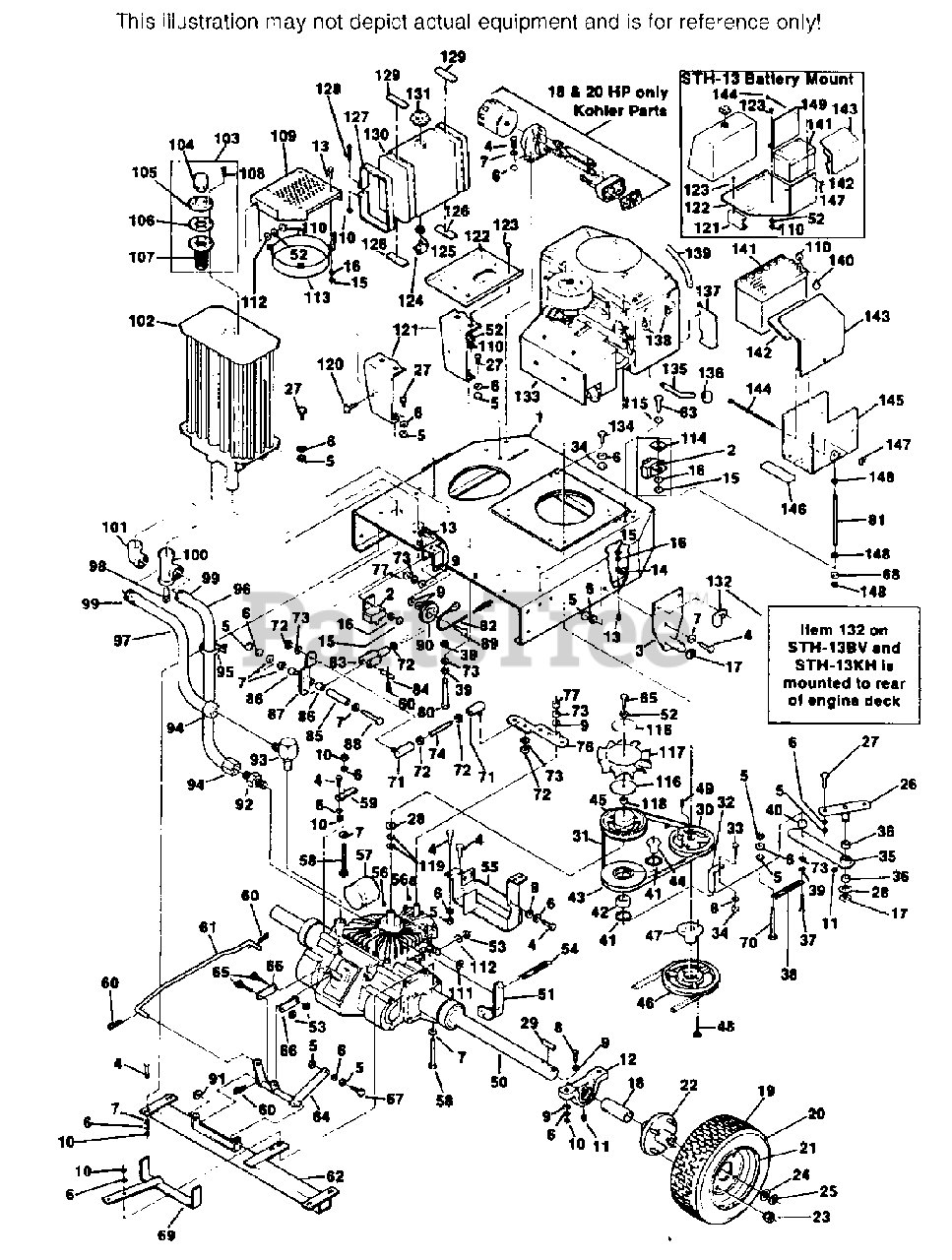

ENGINE DECK Parts Diagram

  • Title

1

Scag 45204

ENGINE DECK

$

$

Not available

3

Scag 45149

HITCH BRACKET

$

$

Not available

4

BOLT, HEX HD., 5/16-18 X 1

$

$

Not available

5

HEX NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

6

LOCK WASHER, 5/16 SPRING

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

7

FLAT WASHER, 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

8

BOLT, HEX HD., 5/16-18 X 1 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

9

Scag 04041-07

FLAT WASHER, 3/8(25/64 X 15/16 X 12 GA.)

$0.99

$

In Stock, Qty 20+

0

10

HEX LOCKNUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

11

Scag 48114-01

GREASE FITTING
(Superseded to 48114-04)

$0.99

$

In Stock, Qty 20+

0

12

Scag 48104-02

BEARING, PILLOW BLOCK 1"

$

$

Not available

13

SCREW, PHILLIPS WASHER HD., #10-32 X 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

14

Scag 48030-01

CLIP, CABLE
(Superseded to 48030-17)

$3.49

$

Usually ships in 2-12 days

0

15

HEX NUT, #10-32

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

16

LOCK WASHER, EXTERNAL TOOTH #10

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

17

Scag 04050-02

RETAINING RING, 3/4" "E"

$0.99

$

In Stock, Qty 7

0

18

Scag 43107

SPACER, DRIVE AXLE

$

$

Not available

19

Scag 48374

WHEEL ASSY. COMPLETE(INCL., 20-23)

$

$

Not available

20

Scag 48004-02

TIRE, 16 X 6.50-8, 2 PLY
(Superseded to 481893)

$217.99

$

Usually ships in 2-12 days

0

21

Scag 48004-04

RIM
(Superseded to 481890)

$89.99

$

In Stock, only 1 left!

0

22

Scag 48374-05

HUB AND FLANGE(INCL. BOLT & NUT)
(Superseded to 481898)

$

$

Not available

23

Scag 48004-06

BOLT AND NUT

$

$

Not available

24

FLAT WASHER, 1.062 X 1 1/2 X 18 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

24

FLAT WASHER, 1.062 X 1 3/4 X .100

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

25

Scag 04050-08

RETAINING RING, 1" "E"

$0.99

$

In Stock, Qty 12

0

26

Scag 45037

PIVOT BASE, IDLER

$30.99

$

Usually ships in 2-12 days

0

27

BOLT, HEX HD., 5/16-18 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

28

Scag 04041-08S

FLAT WASHER, 49/64 X 1 1/4 X .035

$0.99

$

In Stock, Qty 20+

0

29

Scag 04063-03

KEY, 1/4 X 1/4 X 2 1/2

$2.49

$

Usually ships in 2-12 days

0

30

Scag 48063

PULLEY, ENGINE TRANSAXLE DRIVE

$75.99

$

Usually ships in 2-12 days

0

31

Scag 48344

BELT, TRANSAXLE DRIVE

$28.99

$

Usually ships in 2-12 days

0

33

CARRIAGE BOLT, 5/16-18 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

34

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK 5/16-18

$0.99

$

In Stock, Qty 20+

0

35

Scag 46210

IDLER ARM, TRANSMISSION(INCL.(2) 36 &(1)

$

$

Not available

36

Scag 48100-05

BRONZE BUSHINGS

$0.99

$

In Stock, only 3 left!

0

37

BOLT, HEX HD., 3/8-16 X 1 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

38

Scag 48051

SPRING, TRANSMISSION IDLER

$5.49

$

In Stock, only 2 left!

0

39

HEX NUT, JAM 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

40

Scag 43063

SPACER, IDLER

$7.99

$

In Stock, only 2 left!

0

41

Scag 04050-06

RETAINING RING, 1 9/16 INTERNAL

$2.49

$

Usually ships in 2-12 days

0

42

Scag 48102

BEARING, IDLER PULLEY

$11.99

$

Usually ships in 2-12 days

0

43

Scag 48065

PULLEY, TRANSAXLE IDLER

$

$

Not available

44

Scag 43117

SLEEVE, IDLER TAPPED

$10.99

$

Usually ships in 2-12 days

0

45

Scag 48346

PULLEY, TRANSAXLE DRIVE

$

$

Not available

46

Scag 48168-01

PULLEY, ENGINE BLADE DRIVE(INCL. 47, 48)
(Superseded to 482744)

$30.99

$

Usually ships in 2-12 days

0

47

Scag 48168-03

HUB, TAPERED
(Superseded to 48141)

$29.99

$

In Stock, only 1 left!

0

48

BOLT, HEX HD., 1/4-20 X 1 3/8

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

49

Scag 04063-11

KEY, 1/4 X 1/4 X 2 1/2 PLATED

$5.49

$

Usually ships in 2-12 days

0

50

Scag 48388

TRANSAXLE, EATON

Note: (Used Only On Model(s): 850-026).

$

$

Not available

51

Scag 45181

CONTROL ARM, DUMP VALVE

$

$

Not available

52

LOCK WASHER, 1/4 SPRING

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

53

Scag 04021-01

HEX NUT, ELASTIC STOP LOCK 1/4-20

$0.99

$

In Stock, Qty 10

0

54

Scag 48052

SPRING, RETURN

$

$

Not available

55

Scag 45156

PROTECTOR, TRANSAXLE

$

$

Not available

56

Scag 04063-12

KEY, WOODRUFF #61, 3/16 X 5/8

$0.99

$

In Stock, Qty 12

0

56A

Scag 04063-13

KEY, WOODRUFF #3, 1/8 X 1/2

$0.99

$

In Stock, Qty 6

0

57

FILTER, EATON 10 MICRON

$

$

Not available

58

BOLT, HEX HD. 5/16-18 X 3

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

59

Scag 42391

SPACER, TRANSAXLE

$

$

Not available

60

Scag 04062-02

HAIR PIN COTTER, SMALL

$0.99

$

In Stock, Qty 20+

0

61

Scag 44021

BRAKE ROD

$

$

Not available

62

Scag 45188

SUPPORT, TRANSAXLE

$

$

Not available

63

SCREW, HEX HD., #10-32 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

64

Scag 45174

BELLCRANK, BRAKE SHAFT

$

$

Not available

65

BOLT, HEX HD., 1/4-20 X 1 1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

66

Scag 42428

LINK, BRAKE

$

$

Not available

67

BOLT, HEX HD., 5/16-18 X 2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

68

LOCK WASHER, 7/16 SPRING

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

69

Scag 45214

BELT GUIDE, BLADE DRIVE

$

$

Not available

71

Scag 48118

BALL JOINT

$24.99

$

Usually ships in 2-12 days

0

72

HEX NUT, 3/8-24

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

73

LOCK WASHER, 3/8 SPRING

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

74

Scag 44023

CONNECTOR ROD

$

$

Not available

75

BOLT, HEX HD., 5/16-18 X 1 1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

76

Scag 45157

CONTROL ARM

$

$

Not available

77

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

80

BOLT, HEX HD. DECK SUPPORT 3/8-16 X 5

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

81

Scag 44025

ROD, BATTERY SUPPORT

$12.99

$

Usually ships in 2-12 days

0

82

Scag 48387

SPRING/CABLE ASSY.

$

$

Not available

83

Scag 48343-01

CLEVIS, HYDRO CONTROL

$

$

Not available

84

Scag 44024

CLEVIS PIN

$

$

Not available

85

Scag 43110

SLEEVE, CONTROL ARM BELLCRANK

$8.49

$

Usually ships in 2-12 days

0

86

Scag 48100-04

BRONZE BUSHING

$0.99

$

In Stock, only 4 left!

0

87

Scag 46211

BELLCRANK, CONTROL ARM

$

$

Not available

88

BOLT, HEX HD., 5/16-18 X 2 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

89

BOLT, HEX HD., 3/8-16 X 1 3/8

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

90

Scag 48066

PULLEY, SPRING/CABLE

$

$

Not available

91

1/2" FLAT WASHER

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

92

Scag 48347

ADAPTER, 37' FLARE

$

$

Not available

93

Scag 48350

ELBOW, O-RING SEAL ADAPTER
(Superseded to 48350-01)

$28.99

$

Usually ships in 2-12 days

0

94

Scag 48353

COUPLING 37' FLARE
(Superseded to 48353-01)

$18.99

$

Usually ships in 2-12 days

0

95

Scag 48028

CABLE TIE
(Superseded to 48028-01)

$

$

Not available

96

Scag 48351-04

HOSE, LONG
(Superseded to 48351)

$0.99

$

In Stock, Qty 12

0

97

Scag 48351-03

HOSE, SHORT
(Superseded to 48351)

$0.99

$

In Stock, Qty 12

0

98

Scag 48363

PIPE PLUG, 1/2 NPT

$4.99

$

Usually ships in 2-12 days

0

99

Scag 48352

COUPLING 1/2 NPT
(Superseded to 48352-01)

$8.49

$

Usually ships in 2-12 days

0

100

Scag 48365

TEE, 1/2 NPT

$6.49

$

Usually ships in 2-12 days

0

101

Scag 48364

ELBOW 90' 1/2 NPT

$

$

Not available

102

Scag 45160

OIL RESOVOIR
(Superseded to 45211)

$

$

Not available

103

Scag 48376

FILER CAP AND MOUNTING ASSY.(INCL. 104-107)

$16.99

$

Usually ships in 2-12 days

0

104

Scag 48354-01

CAP
(Superseded to 48354)

$181.99

$

Usually ships in 2-12 days

0

105

Scag 48354-02

SEAL RING

$

$

Not available

106

Scag 48354-03

GASKET

$

$

Not available

107

Scag 48354-04

BASKET

$

$

Not available

108

SCREW, PHILLIPS PAN HD. TYPE F #10-24 X 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

109

Scag 42484

FAN SHIELD

$

$

Not available

110

HEX NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

111

Scag 04042-07

FLAT WASHER, .594 X 1.125 X .063

$

$

Currently unavailable

112

FLAT WASHER, 1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

113

Scag 45190

FAN SHROUD

$

$

Not available

114

Scag 42459

STOP, MOWER ENGAGE

$24.99

$

Usually ships in 2-12 days

0

115

FLAT WASHER #10

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

116

Scag 04041-10

FLAT WASHER, 3/8 X 2 X 16 GA.

$1.99

$

Usually ships in 2-12 days

0

117

Scag 48349

FAN, HYDRO
(Superseded to 46636)

$

$

Not available

118

Scag 43077

SPACER, FAN

$4.99

$

In Stock, only 1 left!

0

119

Scag 04041-08

FLAT WASHER, 49/64 X 1 1/4 X 16 GA.

$0.99

$

In Stock, Qty 20+

0

120

BOLT, HEX HD., 1/4-20 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

121

Scag 42505

BRACKET, FUEL TANK AND BATTERY

$

$

Not available

122

Scag 42487

PLATE, FUEL TANK AND BATTERY MTG.

$

$

Not available

123

CARRIAGE BOLT, 1/4-20 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

124

Scag 48308

FUEL SHUT-OFF VALVE
(Superseded to 483747)

$29.99

$

In Stock, only 4 left!

0

125

Scag 48309

BUSHING, FUEL TANK/VALVE
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

126

Scag 48205

PAD, TANK SUPPORT

$4.49

$

Usually ships in 2-12 days

0

127

Scag 42369

STRAP, FUEL TANK
(Superseded to 421239)

$24.99

$

In Stock, only 4 left!

0

128

SCREW, SLOTTED RD. HD. MACHINE 1/4-20 X 2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

129

Scag 48292

PAD, STRAP CUSHION

$3.49

$

In Stock, only 2 left!

0

130

Scag 46174

FUEL TANK ASSY.(INCLS TANK, 124, 125, 131)
(Superseded to 46846)

$242.99

$

In Stock, only 1 left!

0

131

Scag 48311

FUEL TANK CAP
(Superseded to 483791)

$35.99

$

Usually ships in 2-12 days

0

132

Scag 48030-07

CLIP, BATTERY OVERFLOW TUBE

$

$

Not available

133

Scag 48395

SWITCH, INTERLOCK

$26.99

$

Usually ships in 2-12 days

0

135

Scag 48402

OIL DRAIN EXTENSION
(Superseded to 48402-01)

$11.99

$

Usually ships in 2-12 days

0

136

Scag 48257

PIPE CAP, 3/8 HEX

$2.49

$

In Stock, only 1 left!

0

140

BOLT, HEX HD., 1/4-20 X 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

141

Scag 48405

BATTERY

$

$

Not available

142

Scag 48099

INSULATION, BATTERY COVER

$5.99

$

Usually ships in 2-12 days

0

143

Scag 42506

BATTERY COVER

$

$

Not available

144

CARRIAGE HD. BOLT, 1/4-20 X 4 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

146

Scag 48333

PAD, BATTERY SUPPORT
(Superseded to 48661)

$4.99

$

Usually ships in 2-12 days

0

147

Scag 04022-01

WING NUT, ESNA SELF LOCK 1/4-20
(Superseded to 04029-01)

$2.49

$

In Stock, Qty 19

0

148

HEX NUT, 7/16-14

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

149

Scag 42486

BATTERY CLAMP

$

$

Not available
