STG-18KH - Scag Three-Wheel Riding Mower, 18hp Kohler (SN: 30000 - 39999) TRANSAXLE ASSY PEERLESS 820-003B / SCAG 48310 Parts Diagram

Three-Wheel Riding Mower, 18hp Kohler

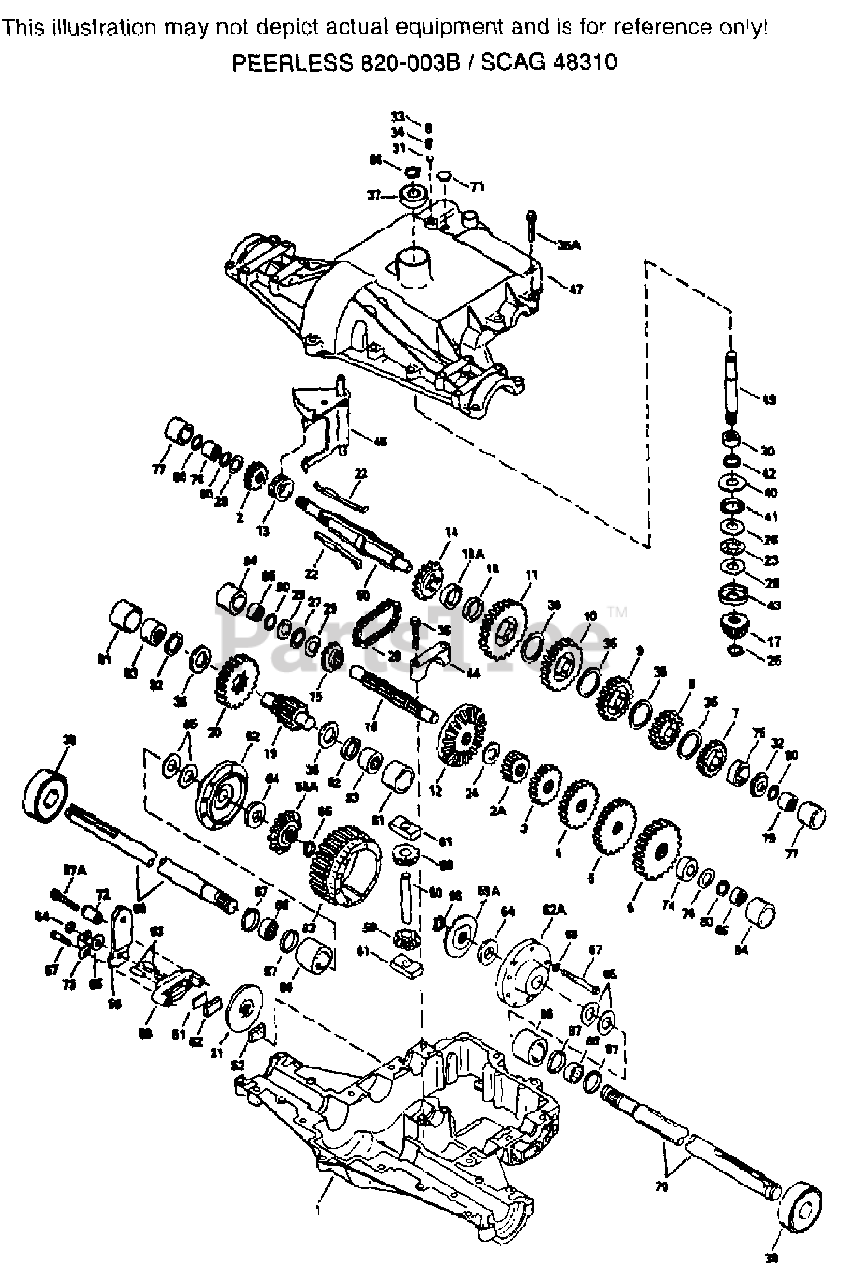

TRANSAXLE ASSY PEERLESS 820-003B / SCAG 48310 Parts Diagram

  • Title

1

Scag 770088

CASE, TRANSAXLE

$

$

Not available

2

Scag 778253

GEAR, SPUR(15 TEETH)

$

$

Not available

3

Scag 778199

GEAR, SPUR(15 TEETH)

$

$

Not available

4

Scag 778200

GEAR, SPUR(20 TEETH)

$

$

Not available

5

Scag 778201

GEAR, SPUR(25 TEETH)

$

$

Not available

6

Scag 778202

GEAR, SPUR(28 TEETH)

$

$

Not available

7

Scag 778203

GEAR, SPUR(22 TEETH)

$

$

Not available

8

Scag 778204

GEAR, SPUR(25 TEETH)

$

$

Not available

9

Scag 778205

GEAR, SPUR(30 TEETH)

$

$

Not available

10

Scag 778206

GEAR, SPUR(35 TEETH)

$

$

Not available

11

UNKNOWN

$

$

Not available

12

Scag 778246

GEAR, BEVEL(33 TEETH)

$

$

Not available

13

Scag 784216

COLLAR, SHIFT

$

$

Not available

14

Scag 786123

SPROCKET(18 TEETH)

$

$

Not available

15

Scag 786082

SPROCKET(9 TEETH)

$

$

Not available

16

Scag 776276

SHAFT, COUNTER

$

$

Not available

17

Scag 778245

BEVEL PINION, INPUT

$

$

Not available

18

Scag 786121

SPACER, NEUTRAL

$

$

Not available

18A

Scag 786122

SPACER, NEUTRAL

$

$

Not available

19

Scag 776275

SHAFT, OUTPUT(9 TEETH)

$

$

Not available

20

Scag 778247

GEAR, OUTPUT(35 TEETH)

$

$

Not available

21

Scag 790043

DISC, BRAKE

$

$

Not available

22

Scag 792123A

KEY

$

$

Not available

23

Scag 780084

BEARING, THRUST

$

$

Not available

24

Scag 780051

WASHER, THRUST

$

$

Not available

25

Scag 788040

RING, RETAINING

$

$

Not available

26

Scag 780051

WASHER, THRUST

$

$

Not available

27

Scag 780071

BEARING, THRUST

$

$

Not available

28

Scag 786081

CHAIN, ROLLER(NO. 41 CHAIN, 24 LINKS)

$

$

Not available

29

Scag 780072

WASHER, THRUST

$

$

Not available

30

Scag 780155

BEARING, NEEDLE

$

$

Not available

31

Scag 792077

BALL, STEEL

$

$

Not available

32

Scag 780139

WASHER, THRUST

$

$

Not available

33

Scag 792078

SCREW, SET, 3/8-16 X 3/8"

$

$

Not available

34

Scag 792079

SPRING

$

$

Not available

?35

Scag 792073

SCREW, HEX HEAD. THRD. FRM, 1/4-20 X 1-1/4"

$

$

Not available

35A

Scag 792129

SCREW, HEX HEAD. THRD. FRM, 5/16-18 X 1-1/4"

$

$

Not available

36

Scag 780108

WASHER, THRUST

$

$

Not available

37

Scag 780119

BEARING, BALL

$

$

Not available

38

Scag 780128

WASHER, THRUST

$

$

Not available

39

Scag 780050

BEARING, BALL

$

$

Not available

40

Scag 780165

WASHER, FLAT

$

$

Not available

41

Scag 788077

"O" RING

$

$

Not available

42

Scag 788042

SEAL, OIL

$

$

Not available

43

Scag 780166

WASHER, CUPPED

$

$

Not available

?44

Scag 786131

CAP, BEARING

$

$

Not available

47

Scag 772097A

COVER, TRANSAXLE

$

$

Not available

48

Scag 784342

ROD & FORK ASSEMBLY, SHIFT

$

$

Not available

49

Scag 776274

SHAFT, INPUT

$

$

Not available

50

Scag 776277

SHAFT BRAKE

$

$

Not available

51

Scag 790007

PLATE, BRAKE PAD

$15.99

$

In Stock, only 4 left!

0

52

Scag 790006

PAD, BRAKE

$27.99

$

Usually ships in 2-12 days

0

53

Scag 786026

PIN, DOWEL

$

$

Not available

54

Scag 792075

LOCKNUT, 5/16-24

$

$

Not available

55

Scag 792076

WASHER, FLAT

$

$

Not available

56

Scag 790016

LEVER, BRAKE

$

$

Not available

57

Scag 792073

SCREW, HEX HEAD, THRD. FRM, 1/4-20 X 1-1/4"

$

$

Not available

57A

Scag 792085

SCREW, HEX HEAD, THRD. FRM, 1/4-20 X 2-1/4"

$

$

Not available

58

Scag 790025

HOLDER, BRAKE PAD

$

$

Not available

59

Scag 778197

PINION, DIFFERENTIAL BEVEL

$

$

Not available

59A

Scag 778198

GEAR, BEVEL

$

$

Not available

?60

Scag 786019

PIN, DRIVE

$

$

Not available

61

Scag 776027

BLOCK, DRIVE

$

$

Not available

62

Scag 774833

CARRIER, DIFFERENTIAL(THREADED HOLES)

$

$

Not available

62A

Scag 774834

CARRIER, DIFFERENTIAL

$

$

Not available

63

Scag 778248

GEAR, RING(31 TEETH)

$

$

Not available

64

Scag 780107

WASHER

$

$

Not available

65

Scag 780042

WASHER, THRUST

$

$

Not available

66

Scag 792018

RING, SNAP

$

$

Not available

67

Scag 792020

SCREW, HEX HD., 1/4-20 X 2-1/4"

$

$

Not available

?68

Scag 792006

LOCKWASHER, 1/4"

$

$

Not available

69

Scag 774796

AXLE(12-1/4" LONG)

$

$

Not available

70

Scag 774823

AXLE(24-1/4" LONG)

$

$

Not available

71

Scag 792074

PLUG, HEX HD., 9/16-18

$

$

Not available

72

Scag 786092

SPACER

$

$

Not available

73

Scag 786086

BRACKET, BRAKE LEVER

$

$

Not available

74

Scag 786071

SPACER

$

$

Not available

75

Scag 786072

SPACER

$

$

Not available

76

Scag 780153

WASHER

$

$

Not available

77

Scag 786144

SLEEVE(STEPPED)

$

$

Not available

78

Scag 780150

BEARING, NEEDLE

$

$

Not available

79

Scag 780152

BEARING, NEEDLE(CAPPED)

$

$

Not available

80

Scag 792001

"O" RING

$

$

Not available

81

Scag 786142

SLEEVE(STEPPED)

$

$

Not available

82

Scag 788071

RING, SQUARE CUT

$

$

Not available

83

Scag 780168

BEARING, NEEDLE(CAPPED)

$

$

Not available

84

Scag 786143

SLEEVE(STEPPED)

$

$

Not available

85

Scag 780151

BEARING, NEEDLE(CAPPED)

$

$

Not available

86

Scag 786145

SLEEVE(STEPPED)

$

$

Not available

87

Scag 788070

RING, SQUARE CUT

$

$

Not available

88

Scag 780031

BEARING, NEEDLE

$

$

Not available

Scag 788067

GEAR GREASE, BENTONITE

$

$

Not available
