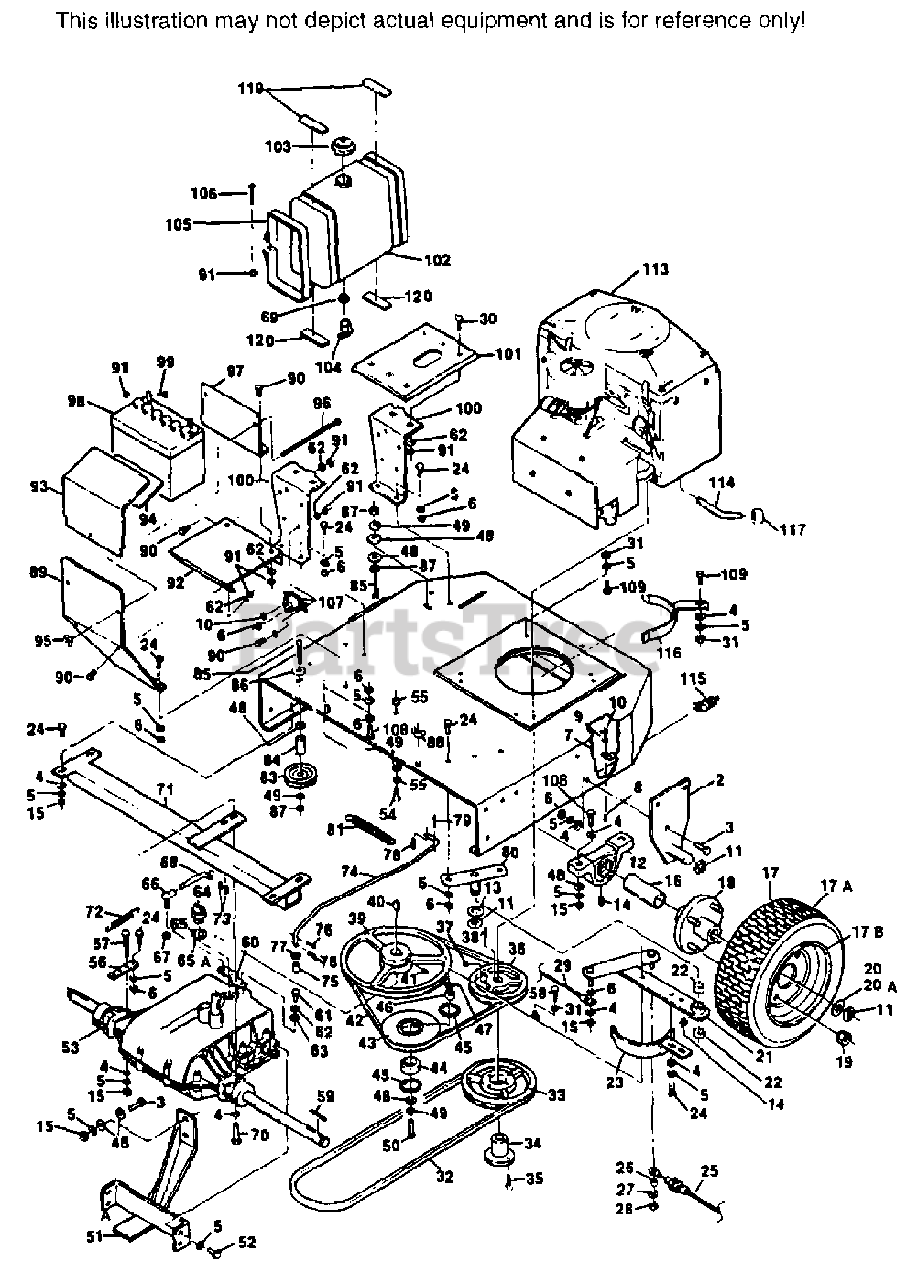

STG-18KH - Scag Three-Wheel Riding Mower, 18hp Kohler (SN: 30000 - 39999) ENGINE DECK Parts Diagram

Three-Wheel Riding Mower, 18hp Kohler

ENGINE DECK Parts Diagram

  • Title

?1

Scag 45146

ENGINE DECK

$

$

Not available

2

Scag 45149

HITCH BRACKET

$

$

Not available

3

HEX HEAD BOLT, 5/16-18 X 1"

$

$

Not available

4

WASHER, 11/32 X 11/16 X 16 GA.

$

$

Not available

5

LOCKWASHER, SPRING, 5/16"

$

$

Not available

6

HEX NUT, 5/16-18

$

$

Not available

7

Scag 48030-01

CLAMP
(Superseded to 48030-17)

$3.49

$

Usually ships in 2-12 days

0

8

PHLPS WSHR HD. SCREW #10-32 X 1/2"

$

$

Not available

9

LOCKWASHER, #10 EXT TOOTH

$

$

Not available

10

HEX NUT, #10-32

$

$

Not available

11

Scag 04050-08

RETAINING RING, 1 EXT. "E"

$0.99

$

In Stock, Qty 12

0

12

Scag 48104-02

BEARING, PILLOW BLOCK 1"

$113.99

$

Usually ships in 2-12 days

0

13

Scag 04041-08

WASHER 49/64 X 1 1/4 X 16 GA.

$0.99

$

In Stock, Qty 20+

0

14

Scag 48114-01

GREASE FITTING, STR., 1/4-28
(Superseded to 48114-04)

$1.49

$

In Stock, Qty 20+

0

15

HEX LOCK NUT, 5/16-18

$

$

Not available

16

Scag 43107

SPACER - LH AXLE

$

$

Not available

17

Scag 48321

DRIVE WHEEL ASSEMBLY

$264.99

$

Usually ships in 2-12 days

0

17A

Scag 48321-02

TIRE, 18 X 8.50-8, 4 PLY

$143.99

$

Usually ships in 2-12 days

0

17B

Scag 48321-04

RIM
(Superseded to 481725)

$262.99

$

Usually ships in 2-12 days

0

?18

Scag 48321-05

HUB & FLANGE(INCLUDES BOLTS)
(Superseded to 481908)

$173.99

$

Usually ships in 2-12 days

0

19

Scag 48321-06

BOLT AND NUT

$

$

Not available

20

Scag 04042-05

WASHER, 1-1/16 X 1-3/4 X 12 GA.

$0.99

$

In Stock, Qty 18

0

20A

Scag 04041-14

WASHER, 1-1/16 X 1-3/4 X 18 GA.

$0.99

$

In Stock, Qty 15

0

21

Scag 46144

IDLER ARM(INCLUDES 14 & 22)

$

$

Not available

22

Scag 48100-05

BRONZE BEARING

$0.99

$

In Stock, only 3 left!

0

23

Scag 45014

BELT GUIDE

$129.99

$

Usually ships in 2-12 days

0

24

HEX HEAD BOLT, 5/16-18 X 3/4"

$

$

Not available

25

Scag 48241

FOOT CABLE ASSEMBLY

$199.99

$

Usually ships in 2-12 days

0

26

Scag 43049

SLEEVE, FOOT CABLE

$6.49

$

Usually ships in 2-12 days

0

27

WASHER, 9/32 X 5/8 X 16 GA.

$

$

Not available

28

HEX LOCK NUT, 1/4-20

$

$

Not available

29

Scag 48046

BRAKE CABLE

$171.99

$

Usually ships in 2-12 days

0

30

CARRIAGE HEAD BOLT, 1/4-20 X 3/4"

$

$

Not available

31

HEX NUT, 5/16-18, ELASTIC STOP

$

$

Not available

32

Scag 48083

BELT, BLADE DRIVE SM61

$55.99

$

In Stock, only 1 left!

0

33

Scag 48168

PULLEY, MOWER DRIVE(INCL. 34 & 35)
(Superseded to 482744)

$

$

Not available

34

Scag 48168-03

TAPER HUB
(Superseded to 48141)

$30.99

$

In Stock, only 1 left!

0

35

HEX HEAD BOLT, 1/4-20 X 1-3/8"

$

$

Not available

36

Scag 48063

PULLEY

$77.99

$

Usually ships in 2-12 days

0

37

SETSCREW, HEX SKT, 5/16-18 X 1-1/4"

$

$

Not available

38

Scag 04063-03

KEY, 1/4 X 1/4 X 2-1/2"

$2.49

$

Usually ships in 2-12 days

0

39

Scag 48322

PULLEY, TRANSAXLE

$135.99

$

Usually ships in 2-12 days

0

40

Scag 04063-09

KEY, HI PRO #9

$1.49

$

In Stock, Qty 9

0

?41

SETSCREW, HEX SKT, 5/16-18 X 3/8"

$

$

Not available

42

Scag 48085

BELT, TRANSAXLE DRIVE

$31.99

$

Usually ships in 2-12 days

0

43

Scag 48065

PULLEY, IDLER

$68.99

$

Usually ships in 2-12 days

0

44

Scag 48102

BEARING, IDLER PULLEY

$11.99

$

Usually ships in 2-12 days

0

45

Scag 04050-06

RETAINING RING, 1-9/16" INT. BASIC

$2.99

$

Usually ships in 2-12 days

0

46

Scag 43044

SLEEVE, TRANSMISSION IDLER BEARING

$17.99

$

Usually ships in 2-12 days

0

47

Scag 43039

SPACER, TRANSMISSION IDLER

$

$

Not available

48

WASHER, 25/64 X 15/16 X 12 GA.

$

$

Not available

49

LOCKWASHER, SPRING, 3/8"

$

$

Not available

50

HEX HEAD BOLT, 3/8-16 X 1-1/2"

$

$

Not available

51

Scag 45148

TRANSAXLE PROTECTOR

$

$

Not available

52

HEX HEAD BOLT, TAPTITE, 5/16-18 X 3/4"

$

$

Not available

53

Scag 48310

TRANSAXLE

$

$

Not available

54

HEX HEAD BOLT, 3/8-16 X 5"

$

$

Not available

55

HEX JAM NUT, 3/8-16

$

$

Not available

56

Scag 42367

SPACER, TRANSAXLE

$

$

Not available

57

HEX HEAD BOLT, 5/16-18 X 3"

$

$

Not available

58

CARRIAGE HEAD BOLT, 5/16-18 X 1"

$

$

Not available

59

Scag 04063-11

KEY, 1/4 X 1/4 X 2-1/2" PLATED

$5.49

$

Usually ships in 2-12 days

0

60

Scag 42368

SHIFT LEVER

$

$

Not available

61

Scag 04001-55

HEX HD. BOLT, 1/4-28 X 3/4 GRD. 8

$0.99

$

Usually ships in 2-12 days

0

62

LOCKWASHER, SPRING, 1/4"

$

$

Not available

63

Scag 04043-01

WASHER, 17/64 X 7/8 X 1/8 H.T.

$40.99

$

In Stock, only 3 left!

0

64

Scag 48021

NEUTRAL SAFETY SWITCH

$33.99

$

Usually ships in 2-12 days

0

65

Scag 48122-01

FIBER WASHER, .010

$0.99

$

Usually ships in 2-12 days

0

65A

Scag 48122-02

FIBER WASHER, .020

$0.99

$

Usually ships in 2-12 days

0

66

Scag 48118

BALL JOINT

$25.99

$

Usually ships in 2-12 days

0

67

Scag 04021-06

HEX LOCK NUT, 3/8-24

$

$

Currently unavailable

68

Scag 44016

SHIFT CONNECTOR ROD

$5.99

$

Usually ships in 2-12 days

0

69

Scag 48309

BUSHING, FUEL TANK VALVE
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

70

HEX HEAD BOLT, 5/16-18 X 3"

$

$

Not available

71

Scag 45147

TRANSAXLE SUPPORT

$

$

Not available

72

Scag 48052

SPRING, BRAKE RETURN

$6.99

$

Usually ships in 2-12 days

0

73

Scag 04062-02

HAIR PIN, SMALL

$0.99

$

In Stock, Qty 20+

0

74

Scag 44017

BLADE CLUTCH ROD

$29.99

$

Usually ships in 2-12 days

0

75

Scag 43043

SLEEVE

$12.99

$

Usually ships in 2-12 days

0

76

COTTER PIN, 3/32 X 1"

$

$

Not available

77

WASHER, 33/64 X 1 X 16 GA.

$

$

Not available

78

Scag 04062-01

HAIR PIN, LARGE

$0.99

$

In Stock, Qty 20+

0

?79

COTTER PIN, 3/32 X 3/4"

$

$

Not available

80

Scag 45037

PIVOT BASE WLD.

$31.99

$

Usually ships in 2-12 days

0

81

Scag 48051

SPRING, BELT CLUTCH

$5.99

$

In Stock, only 2 left!

0

?82

Scag 42060

BRACKET, SPRING MOUNTING

$

$

Not available

83

Scag 48066

PULLEY, BRAKE CABLE

$51.99

$

Usually ships in 2-12 days

0

84

Scag 43024

SPACER, PULLEY

$

$

Not available

85

HEX HEAD BOLT, 3/8-16 X 3"

$

$

Not available

86

WASHER, 13/32 X 1-1/2 X 7 GA.

$

$

Not available

87

HEX NUT, 3/8-16

$

$

Not available

88

Scag 04029-03

WING NUT, 3/8-16

$2.49

$

In Stock, Qty 20+

0

89

Scag 42187

BATTERY MOUNTING BRACKET

$

$

Not available

90

HEX HEAD BOLT, 1/4-20 X 3/4"

$

$

Not available

91

HEX NUT, 1/4-20

$

$

Not available

92

Scag 42188

BATTERY SHELF

$

$

Not available

93

Scag 42024

BATTERY COVER

$11.99

$

Usually ships in 2-12 days

0

94

Scag 48099

BATTERY COVER PAD

$5.99

$

Usually ships in 2-12 days

0

95

Scag 04029-01

WING NUT, 1/4-20

$2.49

$

In Stock, Qty 19

0

96

Scag 04003-01

CARRIAGE BOLT, 1/4-20 X 6"
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 10

0

97

Scag 42055

BATTERY CLAMP

$

$

Not available

?98

Scag 48015

BATTERY

$

$

Not available

99

HEX HEAD BOLT, 1/4-20 X 1/2"

$

$

Not available

100

Scag 42370

TANK MTG. BRACKET(VERTICAL)

$7.99

$

Usually ships in 2-12 days

0

101

Scag 42377

SUPPORT, FUEL TANK(HORIZONTAL)

$51.99

$

Usually ships in 2-12 days

0

102

Scag 46174

FUEL TANK(INCL. 103, 104, & 132)
(Superseded to 46846)

$248.99

$

In Stock, only 1 left!

0

103

Scag 48311

FUEL TANK CAP
(Superseded to 483791)

$36.99

$

Usually ships in 2-12 days

0

104

Scag 48308

FUEL SHUT-OFF VALVE
(Superseded to 483747)

$30.99

$

In Stock, only 4 left!

0

105

Scag 42369

FUEL TANK STRAP
(Superseded to 421239)

$25.99

$

In Stock, only 4 left!

0

106

SCREW, SLOTTED RD HD MACH. 1/4-20 X 2"

$

$

Not available

107

Scag 48016

SOLENOID

$88.99

$

Usually ships in 2-12 days

0

108

HEX HEAD BOLT, 5/16-18 X 1-1/2"

$

$

Not available

109

HEX HEAD BOLT, 5/16-18 X 1-3/4"

$

$

Not available

?110

HEX HEAD BOLT, 5/16-18 X 2"

$

$

Not available

?111

Scag 48059-01

FUEL HOSE CLAMP

$0.99

$

In Stock, Qty 7

0

?112

Scag 48058-07

FUEL HOSE
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

113

Scag 48258

ENGINE, 18 HP KOHLER

$

$

Not available

114

Scag 48115

OIL DRAIN EXTENSION

$

$

Not available

115

Scag 48019

SAFETY SWITCH, BLADE CLUTCH

$37.99

$

Usually ships in 2-12 days

0

116

Scag 45222

BELT GUIDE WELDMENT

$167.99

$

Usually ships in 2-12 days

0

117

PIPE CAP, 3/8 NPT

$

$

Not available

?118

Scag 48255

PIPE NIPPLE W/SPECIAL THREADS

$

$

Not available

119

Scag 48292

PAD, STRAP CUSHION

$3.99

$

In Stock, only 2 left!

0

120

Scag 48205

PAD, TANK SUPPORT

$4.49

$

Usually ships in 2-12 days

0
