STG-18KH - Scag Three-Wheel Riding Mower, 18hp Kohler (SN: 30000 - 39999) CUTTER DECK SM-61 Parts Diagram

Three-Wheel Riding Mower, 18hp Kohler

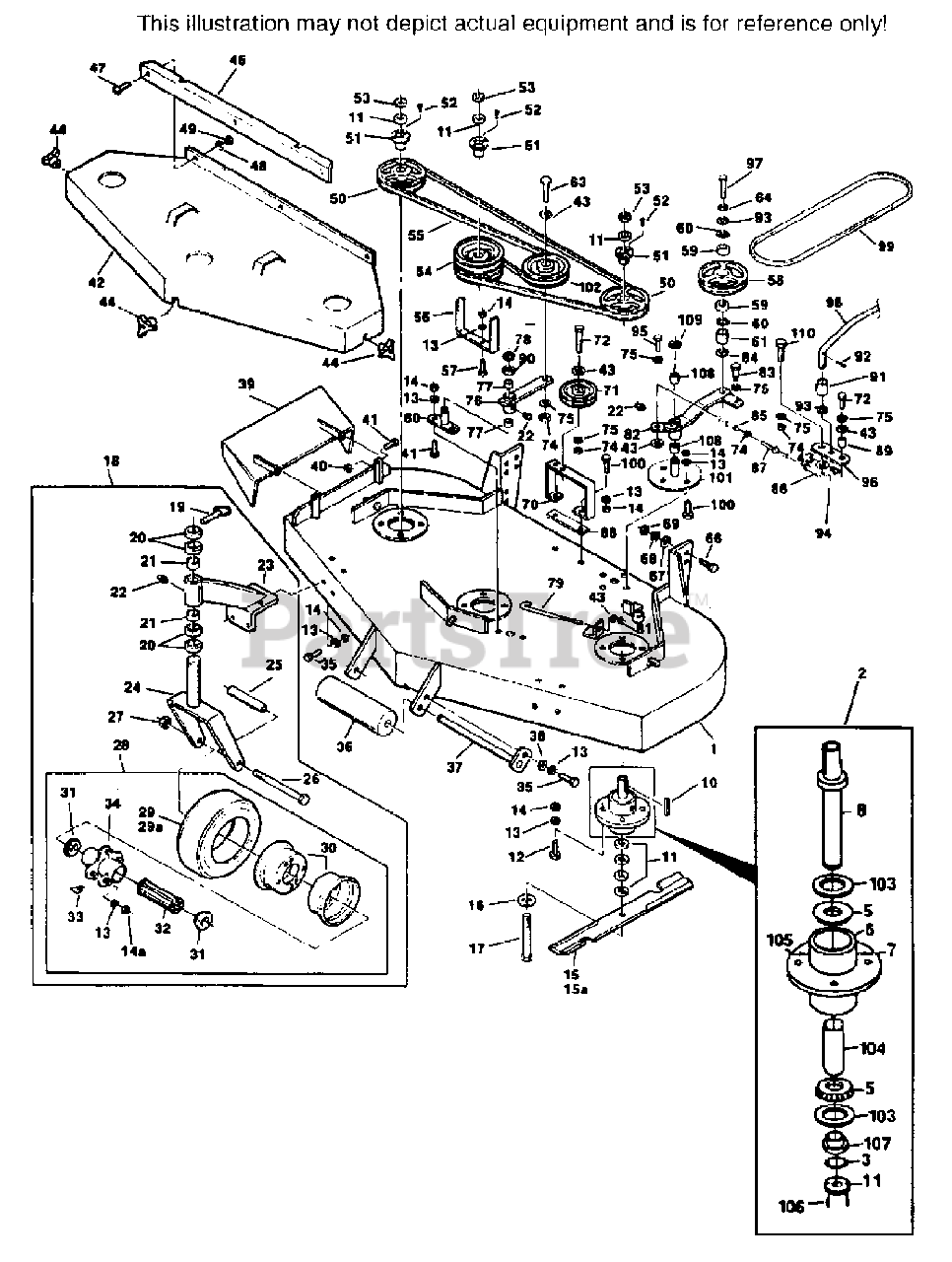

CUTTER DECK SM-61 Parts Diagram

  • Title

1

Scag 46245

CUTTER DECK(INCL. DECAL)

$

$

Not available

2

Scag 46400

SPINDLE ASSEMBLY, TAPERED BEARING

$

$

Not available

3

Scag 04050-04

RETAINING RING, 1" EXT.-INVERTED

$1.99

$

In Stock, Qty 5

0

?4

Scag 04050-07

RETAINING RING, 2-7/16" INT.-BASIC

$3.99

$

Usually ships in 2-12 days

0

5

Scag 48668

TAPERED BEARING

$24.99

$

In Stock, Qty 20+

0

6

Scag 41007

SPINDLE HOUSING, TAPERED BEARING
(Superseded to 461663)

$263.99

$

In Stock, Qty 20+

0

7

Scag 48114-02

GREASE FITTING, STR. 5/16 SERRATED

$1.99

$

In Stock, only 3 left!

0

8

Scag 45391

SPINDLE SHAFT, TAPERED BEARING
(Superseded to 43275)

$68.99

$

Usually ships in 2-12 days

0

?9

Scag 04041-02

WASHER, 1-5/16 X 2-7/16 X 16 GA.

$22.99

$

In Stock, only 2 left!

0

10

Scag 04063-08

KEY, 1/4 X 1/4 X 2"

$1.49

$

In Stock, Qty 20+

0

11

Scag 43201

SPACER, CUTTER BLADE

$20.99

$

Usually ships in 2-12 days

0

12

BOLT, HEX HD., 5/16-18 X 1-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

13

LOCKWASHER, SPRING, 5/16"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

14

HEX NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

14A

HEX NUT, 5/16-24

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

15

Scag 48111

CUTTER BLADE, 21" STANDARD LIFT
(Superseded to 481708)

$27.99

$

In Stock, Qty 20+

0

15A

Scag 48304

CUTTER BLADE, 21" HIGH LIFT
(Superseded to 481712)

$53.99

$

Usually ships in 2-12 days

0

16

Scag 04040-10

FLAT WASHER, 5/8W

$0.99

$

In Stock, Qty 11

0

17

Scag 04001-41

BOLT, HEX HD., 5/8-11 X 9-1/2"

$15.99

$

In Stock, Qty 20+

0

18

Scag 46079

CASTER ASSY, COMP.(INCL. 19-28)

$405.99

$

Usually ships in 2-12 days

0

19

Scag 04066-01

QUICK PIN

$8.99

$

In Stock, Qty 7

0

20

Scag 43037-01

SPACER, CASTER YOKE, 1/2" LONG

$2.49

$

In Stock, Qty 20+

0

21

Scag 48100-01

BRONZE BEARING

$2.99

$

In Stock, Qty 5

0

22

Scag 48114-04

GREASE FITTING, STR, 1/4-28

$1.49

$

In Stock, Qty 20+

0

23

Scag 46082

SUPPORT ASSY.(INCL. 21-22)

$152.99

$

In Stock, only 1 left!

0

24

Scag 45006

CASTER YOKE

$67.99

$

In Stock, only 1 left!

0

25

Scag 43022

SLEEVE, CASTER WHEEL BEARING

$6.99

$

In Stock, Qty 20+

0

26

Scag 04001-37

BOLT, HEX HD., 1/2-13 X 5-1/2"

$4.49

$

In Stock, Qty 15

0

27

HEX LOCKNUT, 1/2-13

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

28

Scag 48307-01

WHEEL ASSY.(INCL. 13-14, 14A, 29-34)
(Superseded to 48307)

$155.99

$

Usually ships in 2-12 days

0

29

Scag 48307-02

TIRE ONLY, CASTER WHEEL
(Superseded to 481774)

$89.99

$

Usually ships in 2-12 days

0

29A

Scag 48006-03

INNER TUBE ONLY, CASTER WHEEL
(Superseded to 481773)

$21.99

$

In Stock, only 2 left!

0

30

Scag 48307-04

RIM PAIR, CASTER WHEEL
(Superseded to 481772)

$72.99

$

In Stock, only 1 left!

0

31

Scag 48006-07

RETAINER, BEARING, CASTER WHEEL
(Superseded to 481770)

$4.99

$

In Stock, Qty 20+

0

32

Scag 48006-06

ROLLER BEARING, CASTER WHEEL
(Superseded to 481769)

$28.99

$

In Stock, only 2 left!

0

33

Scag 48114-03

GREASE FITTING, 45' 1/4-28

$5.49

$

In Stock, Qty 6

0

34

Scag 48006-05

HUB ASSY. W/BOLTS
(Superseded to 481768)

$66.99

$

Usually ships in 2-12 days

0

35

BOLT, HEX HD., 5/16-18 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

36

Scag 48038

GUIDE ROLLER

$29.99

$

In Stock, only 2 left!

0

37

Scag 45046

ROLLER SHAFT
(Superseded to 45944)

$22.99

$

In Stock, Qty 20+

0

38

WASHER, 3/8 X 7/8 X 13 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

39

Scag 45029

DISCHARGE CHUTE
(Superseded to 461292)

$70.99

$

In Stock, only 2 left!

0

40

HEX NUT, 5/16-18 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

41

BOLT, HEX HD., 5/16-18 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

42

Scag 46151

BELT COVER(INCL. DECALS)

$

$

Not available

43

WASHER, 25/64 X 15/16 X 12 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

44

Scag 04029-03

WING NUT, 3/8-16

$2.49

$

In Stock, Qty 20+

0

?45

Scag 43123

SPACER

$23.99

$

Usually ships in 2-12 days

0

46

Scag 42045

BELT COVER SKIRT

$98.99

$

Usually ships in 2-12 days

0

47

MACHINE SCREW, 1/4-20 X 1/2 TRUSS HEAD

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

48

LOCKWASHER, SPRING, 1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

49

HEX NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

50

Scag 48127

PULLEY(INCL. 51-52)
(Superseded to 482744)

$

$

Not available

51

Scag 48141

TAPER HUB

$30.99

$

In Stock, only 1 left!

0

52

BOLT, HEX HD., 1/4-20 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

53

HEX NUT, 5/8-11

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

54

Scag 48128

PULLEY, DOUBLE(INCLUDES 51-52)
(Superseded to 48940)

$188.99

$

Usually ships in 2-12 days

0

55

Scag 48607

BELT, BLADE DRIVE

$110.99

$

Usually ships in 2-12 days

0

56

Scag 42063

BELT GUIDE

$31.99

$

Usually ships in 2-12 days

0

57

BOLT, HEX HD., 5/16-18 X 1-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

58

Scag 48062

PULLEY IDLER

$87.99

$

Usually ships in 2-12 days

0

59

Scag 48102

BEARING

$11.99

$

Usually ships in 2-12 days

0

60

Scag 04050-06

RETAINING RING, 1-9/16" INT. BASIC

$2.99

$

Usually ships in 2-12 days

0

?61

Scag 43045

SLEEVE, IDLER BEARING

$10.99

$

Usually ships in 2-12 days

0

?62

Scag 43040

SPACER, IDLER BEARING

$3.99

$

Usually ships in 2-12 days

0

63

BOLT, HEX HD., 3/8-16 X 2-3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

64

LOCKWASHER, SPRING 1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

66

BOLT, HEX HD., 1/2-13 X 1-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

66

BOLT, HEX HD., 1/2-13 X 1-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

67

FLAT WASHER, 1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

68

LOCKWASHER, 1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

?69

HEX NUT, 1/2-13, ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

70

Scag 42536

IDLER PULLEY SUPPORT

$

$

Not available

71

Scag 48413

PULLEY, BELT GUIDE

$40.99

$

Usually ships in 2-12 days

0

72

BOLT, HEX HD., 3/8-16 X 2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

73

UNKNOWN

$

$

Not available

74

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

75

LOCKWASHER, SPRING, 3/8"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

?76

Scag 46081

IDLER ARM ASSY.(INCL. 22 & 77)

$47.99

$

Usually ships in 2-12 days

0

77

Scag 48100-05

BRONZE BEARING

$0.99

$

In Stock, only 3 left!

0

78

Scag 04050-02

RETAINING RING, 3/4" EXT.-"E"

$0.99

$

In Stock, Qty 7

0

79

Scag 43028

ROD, IDLER PULL, J

$4.99

$

In Stock, only 2 left!

0

?80

Scag 45037

IDLER PIVOT

$31.99

$

Usually ships in 2-12 days

0

81

HEX NUT, 3/8-16 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

82

Scag 46383

IDLER ARM ASSY.(INCL. 22 & 77)

$266.99

$

Usually ships in 2-12 days

0

83

Scag 43054

SHOULDER BOLT

$18.99

$

Usually ships in 2-12 days

0

?84

Scag 43041

SPACER, IDLER

$5.49

$

Usually ships in 2-12 days

0

?85

Scag 48544

ROD END, LH(GOLD COLORED)

$27.99

$

Usually ships in 2-12 days

0

86

Scag 48464

ROD END, RH(SILVER COLORED)

$23.99

$

In Stock, only 1 left!

0

87

Scag 48590

LINK, TURNBUCKLE

$33.99

$

Usually ships in 2-12 days

0

88

Scag 42917

SPACER BAR

$

$

Not available

89

Scag 43042

SLEEVE, CAM CLUTCH

$6.49

$

In Stock, only 1 left!

0

90

Scag 04041-08

WASHER 3/4(49/64 X 1-1/4 X 16 GA.)

$0.99

$

In Stock, Qty 20+

0

91

Scag 43043

SLEEVE, CLUTCH ROD

$12.99

$

Usually ships in 2-12 days

0

92

COTTER PIN, 3/32 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

93

WASHER, 33/64 X 1 X 16 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

94

Scag 04062-01

HAIR PIN, LARGE

$0.99

$

In Stock, Qty 20+

0

95

BOLT, HEX HD., 3/8-16 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

96

Scag 421107

CAM LINK

$56.99

$

In Stock, only 1 left!

0

97

BOLT, HEX HD., 1/2-20 X 2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

?98

Scag 44017

ROD, BLADE ENGAGE(APPROXIMATELY 27" LONG)

$29.99

$

Usually ships in 2-12 days

0

99

Scag 48083

BELT, CUTTER DRIVE

$55.99

$

In Stock, only 1 left!

0

100

BOLT, HEX HEAD, 5/16-18 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

101

Scag 45329

IDLER PIVOT

$40.99

$

Usually ships in 2-12 days

0

102

Scag 48531

PULLEY, IDLER

$

$

Not available

103

Scag 48681

SEAL, TAPERED BEARING SPINDLE
(Superseded to 481024)

$4.99

$

In Stock, Qty 20+

0

104

Scag 43218

SLEEVE, TAPERED BEARING SPINDLE

$8.99

$

Usually ships in 2-12 days

0

105

Scag 48677

RELIEF FITTING, TAPERED BEARING SPINDLE

$9.49

$

Usually ships in 2-12 days

0

106

ROLL PIN, 1/8 X 1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

107

Scag 43217

BUSHING, TAPERED BEARING SPINDLE

$15.99

$

Usually ships in 2-12 days

0

108

Scag 48100-02

BRONZE BEARING

$3.99

$

In Stock, only 2 left!

0

109

Scag 04050-05

RETAINING RING - EST. "E" - 1-1/8"

$0.99

$

In Stock, Qty 20+

0

?110

HEX HD. BOLT, 3/8-16 X 1-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available
