STE600GKA44300 - Exmark 44" Staris E-Series Stand-On Mower, Kaw (SN: 404314159 - 406294344) (Rev C) (2019) Hydraulic Assembly Parts Diagram

44" Staris E-Series Stand-On Mower, Kaw

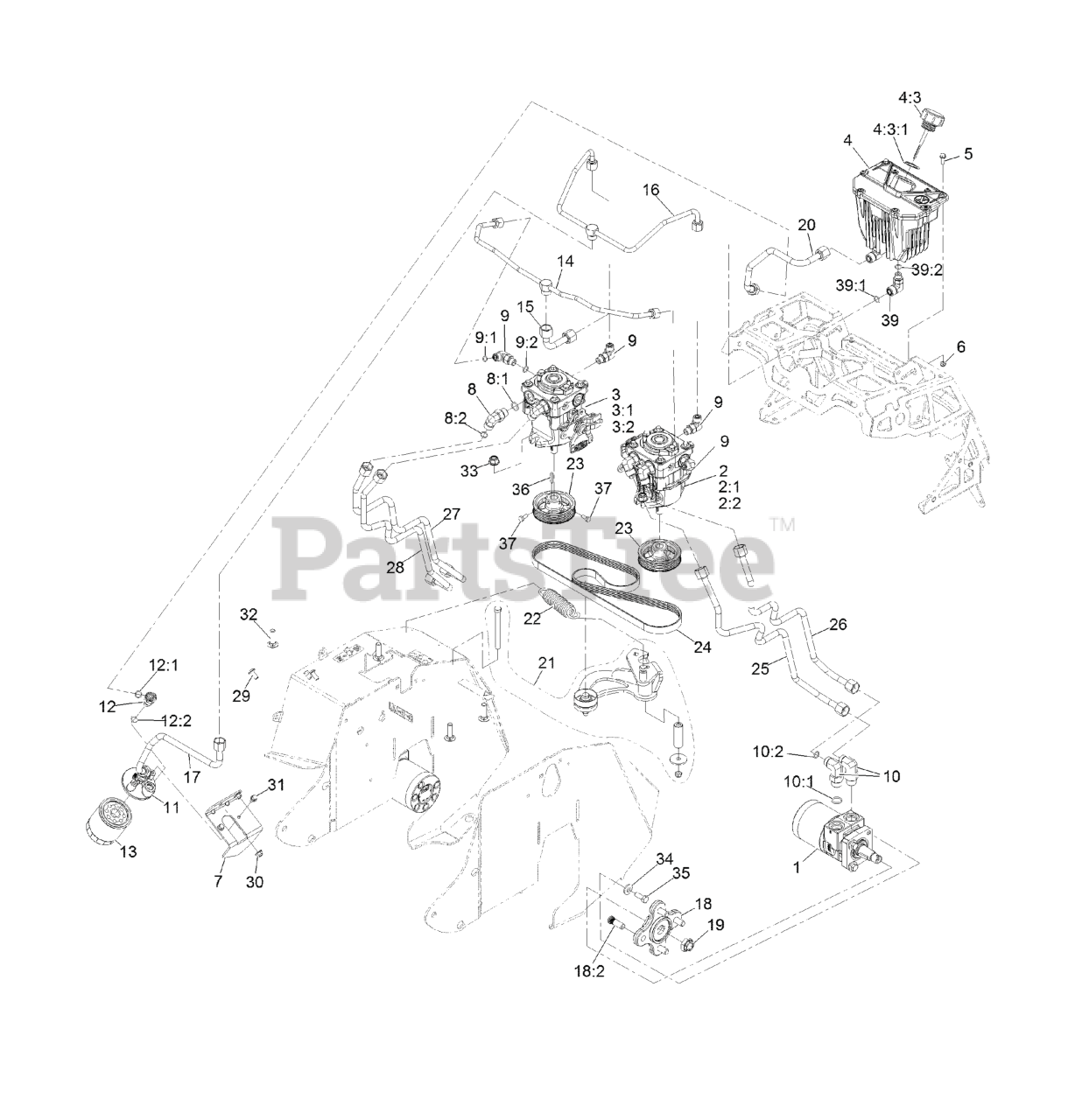

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 135-1274

MOTOR-WHEEL

$864.99

$

Usually ships in 3-6 days

0

2

Exmark 135-2212

PUMP-HYDRAULIC 10CC

$1176.99

$

Usually ships in 3-6 days

0

2:1

Exmark 126-2479

KIT, 10CC/12CC PUMP KIT

$406.99

$

Usually ships in 3-6 days

0

2:2

Exmark 105-6184

SEAL OVERHAUL KIT

$84.99

$

In Stock, Qty 12

0

3

Exmark 135-2211

PUMP-HYDRAULIC 10CC

$1176.99

$

Usually ships in 3-6 days

0

3:1

Exmark 126-2479

KIT, 10CC/12CC PUMP KIT

$406.99

$

Usually ships in 3-6 days

0

3:2

Exmark 105-6184

SEAL OVERHAUL KIT

$84.99

$

In Stock, Qty 12

0

4

Exmark 135-3305

ASM, HYDRAULIC RESERVOIR

$201.99

$

In Stock, only 1 left!

0

4:3

Exmark 116-9273

RESERVOIR CAP ASM

$27.99

$

Usually ships in 3-6 days

0

4:3:1

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

5

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

6

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Exmark 135-1634-03

BRACKET-FILTER

$25.99

$

Usually ships in 3-6 days

0

8

Exmark 340-98

FITTING-ELBOW, 90 DEG

$33.99

$

In Stock, only 2 left!

0

8:1

Exmark 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

8:2

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

9

Exmark 340-77

FITTING-ELBOW, 90 DEG

$27.99

$

Usually ships in 3-6 days

0

9:1

Exmark 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

9:2

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

10

Exmark 340-105

FITTING-ELBOW, 90 DEG

$44.99

$

In Stock, only 1 left!

0

10:1

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

10:2

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

11

Exmark 103-2888

HEAD-FILTER

$88.99

$

Usually ships in 3-6 days

0

12

Exmark 340-96

Adapter

$43.99

$

Usually ships in 3-6 days

0

12:1

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

12:2

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

13

Exmark 109-4180

FILTER-25 MICRON, BI-DIRECTIONAL

$49.99

$

In Stock, Qty 13

0

14

Exmark 135-7056

LINE, HYDRAULIC, CASE TEE

$94.99

$

Usually ships in 3-6 days

0

15

Exmark 135-7054

LINE, HYDRAULIC, CASE

$44.99

$

Usually ships in 3-6 days

0

16

Exmark 135-7055

LINE, HYDRAULIC, CHARGE TEE

$94.99

$

Usually ships in 3-6 days

0

17

Exmark 135-7154

LINE-HYDRAULIC CHARGE

$75.99

$

Usually ships in 3-6 days

0

18

Exmark 135-1621

ASM-HUB AND STUDS

$53.99

$

In Stock, only 1 left!

0

18:2

Exmark 116-1696

STUD-WHEEL

$3.99

$

In Stock, Qty 20+

0

19

Exmark 116-2839

NUT-LOCK

$11.99

$

In Stock, only 3 left!

0

20

Exmark 135-7153

LINE-HYDRAULIC SUPPLY

$75.99

$

Usually ships in 3-6 days

0

21

Exmark 135-1270

ASM, IDLER ARM

$105.99

$

In Stock, only 3 left!

0

22

Exmark 135-1272

SPRING, EXTENSION

$17.99

$

In Stock, only 2 left!

0

23

Exmark 135-1197

USE 142-3044
(Superseded to 142-3044)

$108.99

$

In Stock, only 1 left!

0

24

Exmark 135-1196

BELT, PVK5

$36.99

$

In Stock, only 1 left!

0

25

Exmark 135-2962

USE 142-5457
(Superseded to 142-5457)

$79.99

$

Usually ships in 3-6 days

0

26

Exmark 135-2963

USE 142-5458
(Superseded to 142-5458)

$79.99

$

Usually ships in 3-6 days

0

27

Exmark 135-2964

USE 142-5459
(Superseded to 142-5459)

$79.99

$

Usually ships in 3-6 days

0

28

Exmark 135-2965

USE 142-5461
(Superseded to 142-5461)

$79.99

$

Usually ships in 3-6 days

0

29

Exmark 126-6268

SCREW-TORX

$1.49

$

In Stock, Qty 5

0

30

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Exmark 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

32

Exmark 3232-3

BOLT-CARR

$3.49

$

In Stock, Qty 5

0

33

Exmark 114-8417

NUT-HF, NI

$2.49

$

In Stock, Qty 18

0

34

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

35

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

36

Exmark 135-7971

KEY, 5MM X 5MM X 29MM

$2.99

$

In Stock, only 3 left!

0

37

Exmark 3241-7

Screw-SQH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$3.99

$

In Stock, Qty 12

0

39

Exmark 340-99

Fitting-HYD, 90 DEG

$40.99

$

Usually ships in 3-6 days

0

39:1

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

39:2

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

40

Exmark 73-0041

Washer-Thrust

$1.99

$

Usually ships in 3-6 days

0
