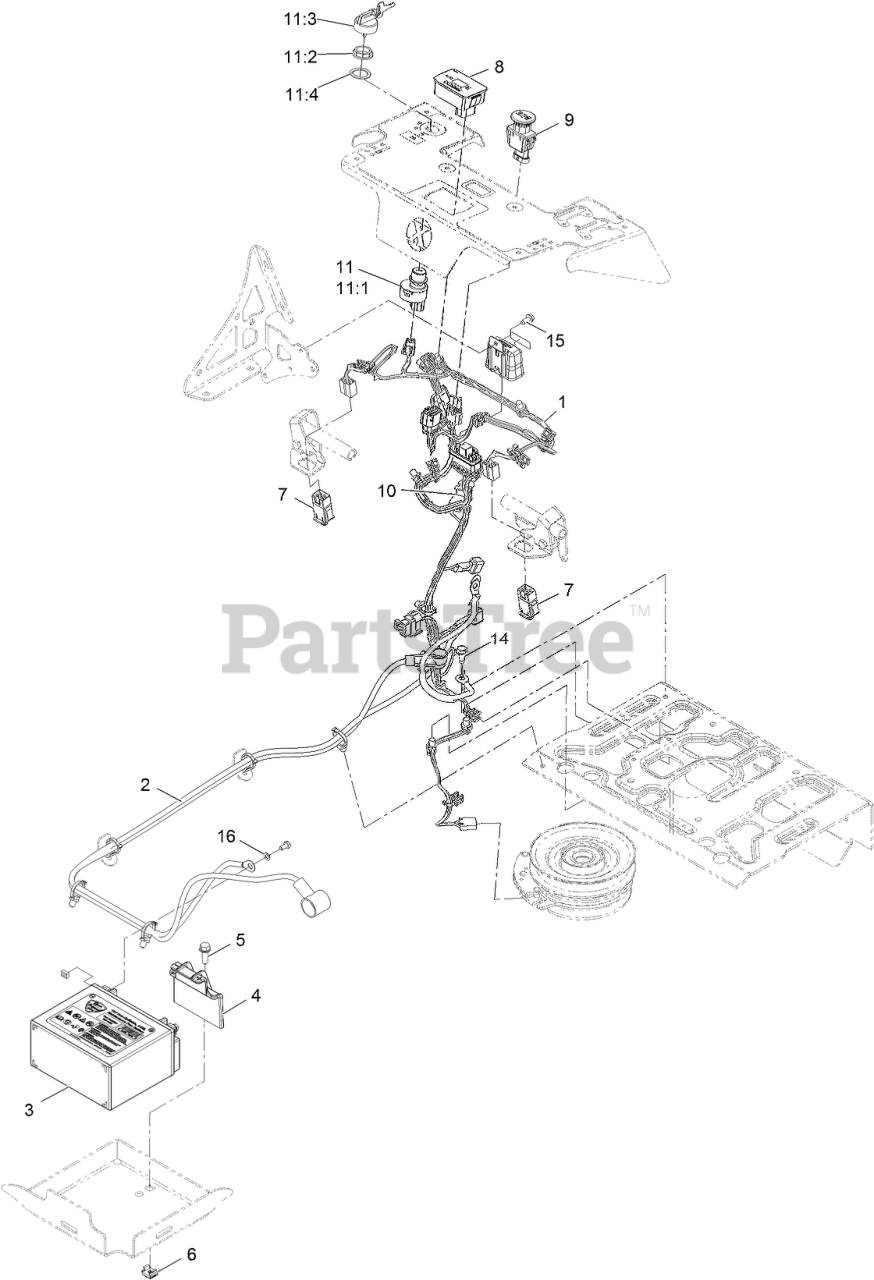

STE600GKA36300 - Exmark 36" Staris E-Series Stand-On Mower, Kaw (SN: 406294345 - 408644345) (Rev A) (2020) Electrical Assembly Parts Diagram

36" Staris E-Series Stand-On Mower, Kaw

Electrical Assembly Parts Diagram

  • Title

1

Exmark 135-2249

HARNESS-WIRING
(Superseded to 142-2947)

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$353.99

$

Usually ships in 3-6 days

0

2

Exmark 135-2255

Harness-Battery

$115.99

$

Usually ships in 3-6 days

0

3

Exmark 135-4421

Battery, Agm
(Superseded to 142-7345)

$244.90

$

Usually ships in 4-12 days

0

4

Exmark 135-4422

Hold Down, Battery

$7.49

$

Usually ships in 3-6 days

0

5

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

6

Exmark 135-4473

Nut, Snap

$2.99

$

Usually ships in 3-6 days

0

7

Exmark 104-3338

SWITCH-DELTA

$54.99

$

Usually ships in 3-6 days

0

8

Exmark 135-7189

Module-Hour Meter

$212.99

$

In Stock, only 1 left!

0

9

Exmark 126-6187

SWITCH-PTO, SEALED

$54.99

$

In Stock, Qty 20+

0

10

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

11

Exmark 126-6285

IGNITION SWITCH ASM

$54.99

$

In Stock, Qty 20+

0

11:1

Switch-Ignition

Note: Not serviced separately

$

$

Not available

11:2

Exmark 108-8660

NUT-MOUNTING

$35.99

$

In Stock, only 3 left!

0

11:3

Exmark 106-5270

IGNITION KEY SET

$22.99

$

In Stock, Qty 18

0

11:4

Exmark 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 1 left!

0

14

Exmark 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

15

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

16

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

99

Exmark 135-7732

Hardware Kit, Battery

Note: Not illustrated

$2.99

$

Usually ships in 3-6 days

0
