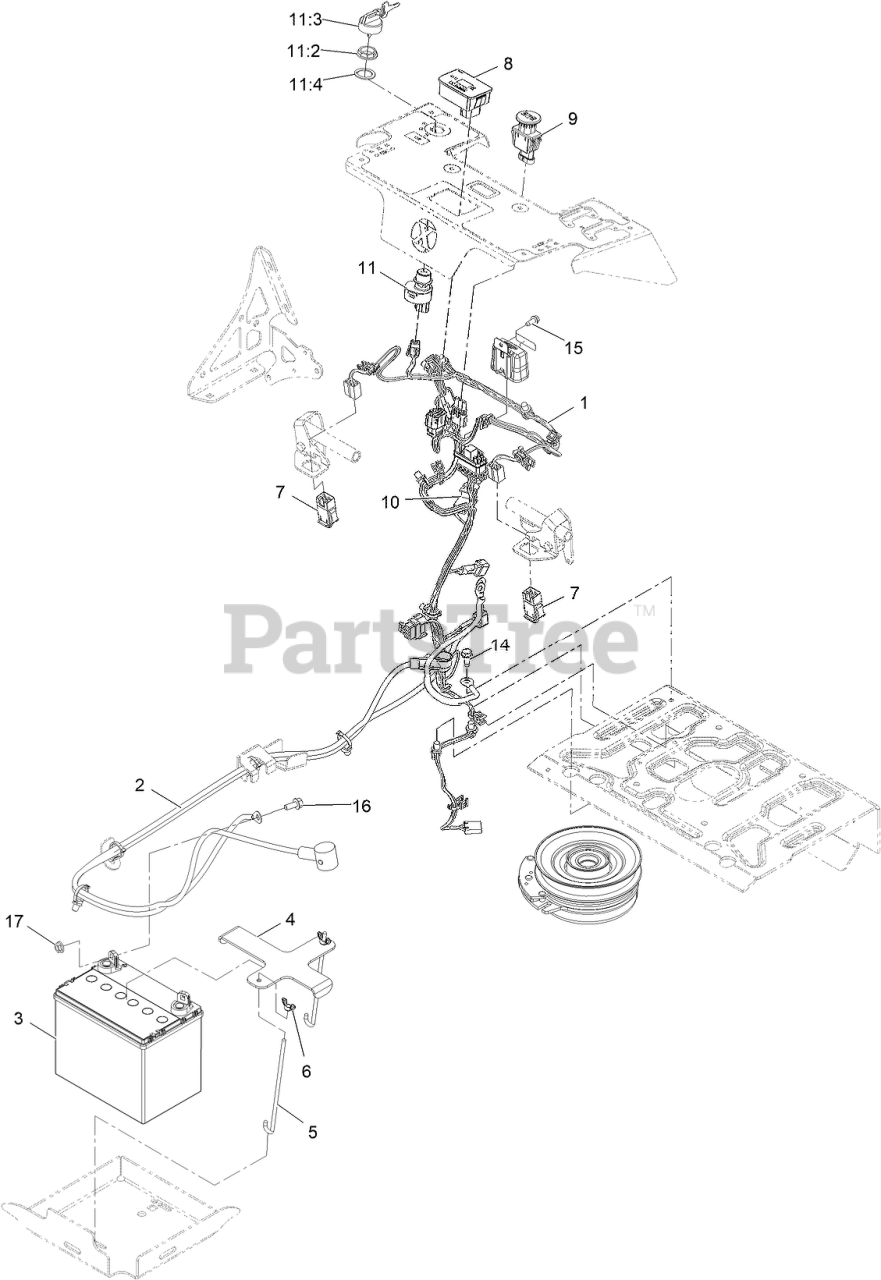

STE600CKA363H1 - Exmark 36" Staris E-Series Stand-On Mower, Kaw (SN: 413950474 - 999999999) (Rev A) (2023) Electrical Assembly Parts Diagram

36" Staris E-Series Stand-On Mower, Kaw

Electrical Assembly Parts Diagram

  • Title

1

Exmark 142-2926

HARNESS-WIRING

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$315.99

$

Usually ships in 3-6 days

0

2

Exmark 135-2255

HARNESS-BATTERY

$112.99

$

Usually ships in 3-6 days

0

3

Exmark 99-7421

Battery
(Superseded to 104-8162)

$

$

Not available

4

Exmark 135-2056

BRACKET, BATTERY HOLD DOWN

$27.99

$

In Stock, only 1 left!

0

5

Exmark 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, only 2 left!

0

6

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

7

Exmark 104-3338

SWITCH-DELTA

$54.99

$

Usually ships in 3-6 days

0

8

Exmark 135-7189

Module-Hour Meter

$192.99

$

In Stock, only 1 left!

0

9

Exmark 126-6187

SWITCH-PTO, SEALED

$54.99

$

In Stock, Qty 11

0

10

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 11

0

11

Exmark 126-6285

IGNITION SWITCH ASM

$54.99

$

In Stock, Qty 20+

0

11:2

Exmark 108-8660

NUT-MOUNTING

$35.99

$

In Stock, only 3 left!

0

11:3

Exmark 106-5270

IGNITION KEY SET

$21.99

$

In Stock, Qty 18

0

11:4

Exmark 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 1 left!

0

14

Exmark 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

15

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 9

0

16

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 14

0

17

Exmark 32128-20

NUT-HF

Note: Not illustrated

$1.49

$

In Stock, Qty 20+

0
