STE600CKA363H1 - Exmark 36" Staris E-Series Stand-On Mower, Kaw (SN: 411294212 - 413950473) (Rev A) (2022) Platform Assembly Parts Diagram

36" Staris E-Series Stand-On Mower, Kaw

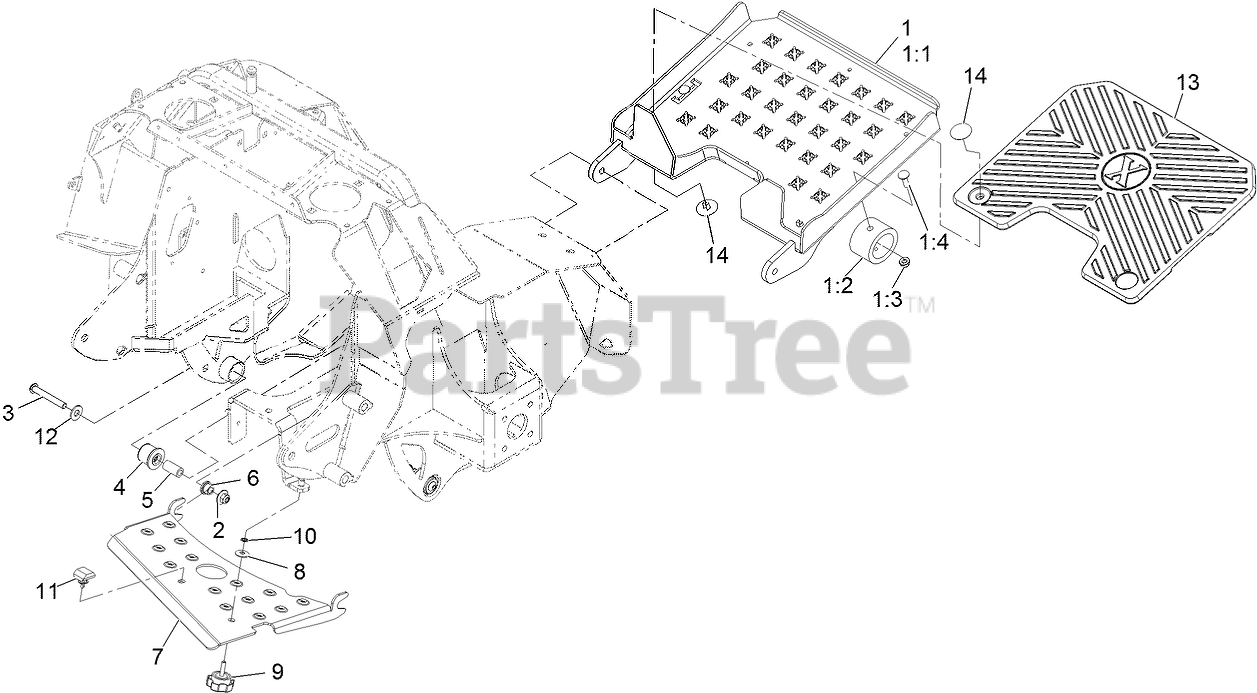

Platform Assembly Parts Diagram

  • Title

1

Exmark 142-2710

ASM-PLATFORM

$311.99

$

Usually ships in 3-6 days

0

1:1

Exmark 142-2470-05

WELD-PLATFORM

$269.99

$

Usually ships in 3-6 days

0

1:2

Exmark 135-2548

BUMPER-ISOLATOR

$20.99

$

In Stock, only 2 left!

0

1:3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

1:4

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

2

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

Usually ships in 3-6 days

0

3

Exmark 135-7158

SCREW-HSBH

$5.49

$

Usually ships in 3-6 days

0

4

Exmark 126-8360

BUSHING-RUBBER, SUSPENSION

$2.99

$

In Stock, Qty 12

0

5

Exmark 108-6544

SPACER

$12.99

$

In Stock, Qty 8

0

6

Exmark 109-8788

BUSHING-FLANGED

$6.99

$

In Stock, only 3 left!

0

7

Exmark 142-2590-03

DEFLECTOR, AIR, 36

$78.99

$

Usually ships in 3-6 days

0

8

Exmark 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

9

Exmark 135-7382

KNOB

$5.49

$

In Stock, only 1 left!

0

10

Exmark 1-803037

NUT-RETAINING

$1.49

$

Usually ships in 3-6 days

0

11

Exmark 126-9966

BUMPER-ROPS

$2.99

$

In Stock, only 1 left!

0

12

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

13

Exmark 142-3224

PAD-PLATFORM

$70.99

$

Usually ships in 3-6 days

0

14

Exmark 142-3247

RIVET-RATCHET

$2.99

$

Usually ships in 3-6 days

0
