STE600CKA363H1 - Exmark 36" Staris E-Series Stand-On Mower, Kaw (SN: 411294212 - 413950473) (Rev A) (2022) Deck Assembly Parts Diagram

36" Staris E-Series Stand-On Mower, Kaw

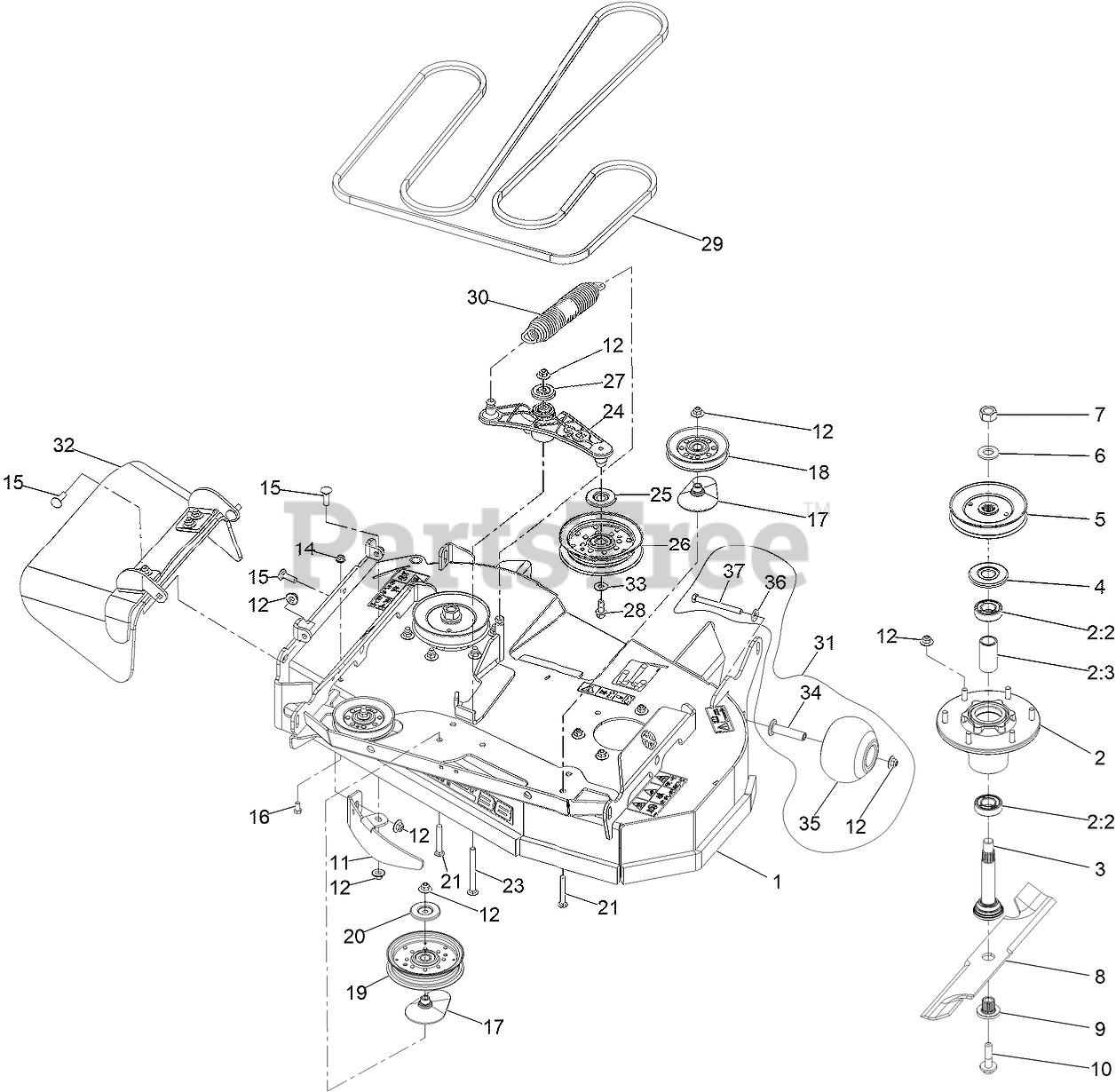

Deck Assembly Parts Diagram

  • Title

1

Exmark 142-2607

ASM, 36" DECK W/ DECALS

$1273.99

$

Usually ships in 3-6 days

0

2

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$158.99

$

In Stock, Qty 20+

0

2:2

Exmark 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 18

0

2:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, Qty 6

0

3

Exmark 116-3342

ASM-SPINDLE AND SEAL

$85.99

$

In Stock, only 1 left!

0

4

Exmark 116-1286

GUARD,BEARING TOP .989

$5.49

$

In Stock, Qty 10

0

5

Exmark 135-4809

SHEAVE-BLADE DRIVE

$34.99

$

In Stock, only 3 left!

0

6

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 16

0

7

Exmark 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 11

0

8

Exmark 116-5175

USE 116-5175-S
(Superseded to 116-5175-S)

Note: Optional Equipment

$30.99

$

In Stock, only 4 left!

0

8

Exmark 103-6402

USE 103-6402-S
(Superseded to 103-6402-S)

$30.99

$

In Stock, Qty 20+

0

8

Exmark 103-6392

USE 103-6392-S
(Superseded to 103-6392-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$30.99

$

In Stock, Qty 20+

0

8

Exmark 103-6387

USE 103-6387-S
(Superseded to 103-6387-S)

Note: Optional Equipment

$31.99

$

In Stock, Qty 11

0

8

Exmark 103-6382

USE 103-6382-S
(Superseded to 103-6382-S)

Note: Optional Equipment

$36.99

$

In Stock, only 4 left!

0

9

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

10

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

11

Exmark 126-2783-01

BAFFLE, DOGLEG

$49.99

$

In Stock, only 1 left!

0

12

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

Usually ships in 3-6 days

0

14

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

15

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 17

0

16

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

17

Exmark 109-2872

SPACER-PULLEY

$22.99

$

Usually ships in 3-6 days

0

18

Exmark 135-4398

Idler - V 4.13 Eod-A

$34.99

$

In Stock, only 2 left!

0

19

Exmark 126-9187

PULLEY-IDLER, FLAT

$60.99

$

In Stock, Qty 19

0

20

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, only 3 left!

0

21

Exmark 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

23

Exmark 135-0313

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

24

Exmark 135-1679

ASM.-ARM, IDLER

$123.99

$

Usually ships in 3-6 days

0

25

Exmark 126-9195

SHIELD-GUARD, DUST

$2.99

$

In Stock, only 3 left!

0

26

Exmark 126-9196

IDLER-PULLEY, FLAT

$60.99

$

In Stock, Qty 9

0

27

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

28

Exmark 126-1680

SCREW-HFH

$1.99

$

In Stock, Qty 11

0

29

Exmark 135-3214

USE 135-3214-SL
(Superseded to 135-3214-SL)

$161.99

$

In Stock, only 1 left!

0

30

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 11

0

31

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$52.99

$

In Stock, Qty 20+

0

32

Exmark 135-2160

RUBBER DEFLECTOR ASM

$172.99

$

Usually ships in 3-6 days

0

33

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

34

Exmark 116-8131

AXLE, ROLLER

$12.99

$

In Stock, Qty 5

0

35

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 12

0

36

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

37

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

0
