STE600CKA363H1 - Exmark 36" Staris E-Series Stand-On Mower, Kaw (SN: 408644346 - 411294211) (Rev A) (2021) Hydraulic Assembly Parts Diagram

36" Staris E-Series Stand-On Mower, Kaw

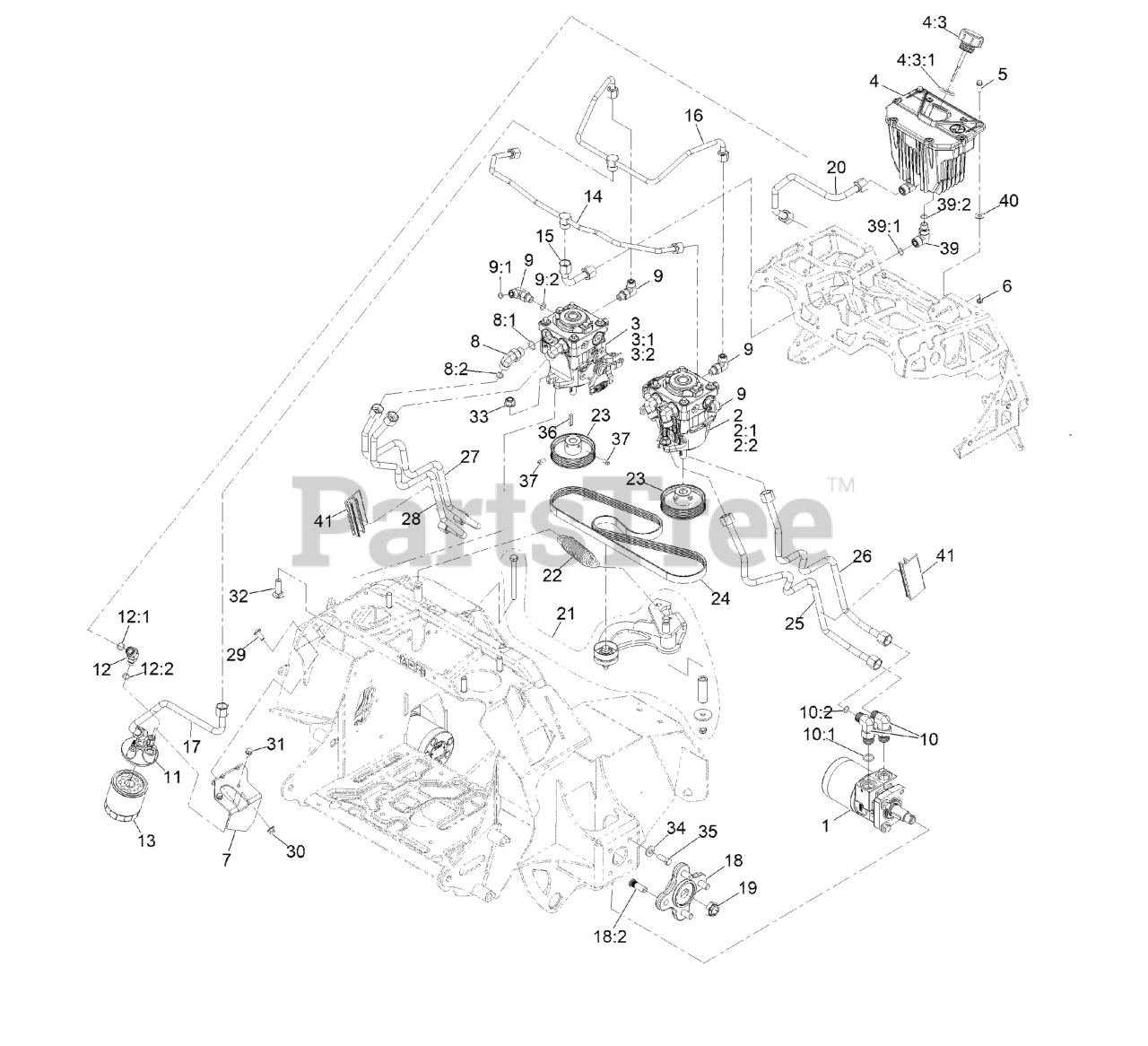

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 135-1274

MOTOR-WHEEL

$864.99

$

Usually ships in 3-6 days

0

2

Exmark 135-2212

PUMP-HYDRAULIC 10CC

$1176.99

$

Usually ships in 3-6 days

0

2:1

Exmark 126-2479

KIT, 10CC/12CC PUMP KIT

$406.99

$

Usually ships in 3-6 days

0

2:2

Exmark 105-6184

SEAL OVERHAUL KIT

$84.99

$

In Stock, Qty 7

0

3

Exmark 135-2211

PUMP-HYDRAULIC 10CC

$1176.99

$

Usually ships in 3-6 days

0

3:1

Exmark 126-2479

KIT, 10CC/12CC PUMP KIT

$406.99

$

Usually ships in 3-6 days

0

3:2

Exmark 105-6184

SEAL OVERHAUL KIT

$84.99

$

In Stock, Qty 7

0

4

Exmark 135-3305

ASM, HYDRAULIC RESERVOIR

$181.99

$

In Stock, only 1 left!

0

4:3

Exmark 142-2793

Cap, Hydraulic

$26.99

$

Usually ships in 3-6 days

0

4:3:1

Exmark 142-2792

O-RING

$1.49

$

In Stock, Qty 9

0

5

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 14

0

6

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Exmark 142-2592-03

MOUNT, FILTER

$24.99

$

Usually ships in 3-6 days

0

8

Exmark 340-98

FITTING-ELBOW, 90 DEG

$33.99

$

In Stock, only 2 left!

0

8:1

Exmark 237-79

O-RING

$5.99

$

In Stock, Qty 8

0

8:2

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

9

Exmark 340-77

FITTING-ELBOW, 90 DEG

$26.99

$

Usually ships in 3-6 days

0

9:1

Exmark 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

9:2

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

10

Exmark 340-105

FITTING-ELBOW, 90 DEG

$42.99

$

In Stock, only 1 left!

0

10:1

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

10:2

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

11

Exmark 103-2888

HEAD-FILTER

$88.99

$

Usually ships in 3-6 days

0

12

Exmark 340-96

Adapter

$43.99

$

Usually ships in 3-6 days

0

12:1

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

12:2

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

13

Exmark 109-4180

FILTER-25 MICRON, BI-DIRECTIONAL

$47.99

$

In Stock, Qty 16

0

14

Exmark 135-7056

LINE, HYDRAULIC, CASE TEE

$91.99

$

Usually ships in 3-6 days

0

15

Exmark 135-7054

LINE, HYDRAULIC, CASE

$42.99

$

Usually ships in 3-6 days

0

16

Exmark 135-7055

LINE, HYDRAULIC, CHARGE TEE

$91.99

$

Usually ships in 3-6 days

0

17

Exmark 142-2594

LINE, HYD. CHARGE

$75.99

$

Usually ships in 3-6 days

0

18

Exmark 135-1621

ASM-HUB AND STUDS

$51.99

$

In Stock, only 1 left!

0

18:2

Exmark 116-1696

STUD-WHEEL

$5.49

$

In Stock, Qty 20+

0

19

Exmark 116-2839

NUT-LOCK

$11.99

$

In Stock, only 3 left!

0

20

Exmark 142-2593

LINE, HYD. SUPPLY

$75.99

$

Usually ships in 3-6 days

0

21

Exmark 135-1270

ASM, IDLER ARM

$103.99

$

In Stock, only 3 left!

0

22

Exmark 135-1272

SPRING, EXTENSION

$17.99

$

In Stock, only 2 left!

0

23

Exmark 142-2968

USE 142-3044
(Superseded to 142-3044)

$108.99

$

In Stock, only 1 left!

0

24

Exmark 135-1196

BELT, PVK5

$36.99

$

In Stock, only 2 left!

0

25

Exmark 142-5632

KIT-STE HYD LINE LT REAR B-A

$157.99

$

Usually ships in 3-6 days

0

26

Exmark 142-5633

KIT-STE HYD LINE LT FRNT A-B

$157.99

$

Usually ships in 3-6 days

0

27

Exmark 142-5634

KIT-STE HYD LINE RT REAR B-B

$157.99

$

Usually ships in 3-6 days

0

28

Exmark 142-5635

KIT-STE HYD LINE RT FRNT A-A

$157.99

$

Usually ships in 3-6 days

0

29

Exmark 126-6268

SCREW-TORX

$1.49

$

In Stock, Qty 5

0

30

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

31

Exmark 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

32

Exmark 3232-3

BOLT-CARR

$3.49

$

In Stock, Qty 5

0

33

Exmark 114-8417

NUT-HF, NI

$2.49

$

In Stock, Qty 18

0

34

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

35

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

36

Exmark 135-7971

KEY, 5MM X 5MM X 29MM

$2.99

$

In Stock, only 2 left!

0

37

Exmark 3241-7

Screw-SQH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$3.99

$

In Stock, only 2 left!

0

39

Exmark 340-99

Fitting-HYD, 90 DEG

$38.99

$

Usually ships in 3-6 days

0

39:1

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

39:2

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

40

Exmark 73-0041

Washer-Thrust

$1.99

$

In Stock, only 1 left!

0

41

Exmark 142-4399

SPACER-HYDRAULIC TUBE

$5.49

$

Usually ships in 3-6 days

0

99

Exmark 105-6184

SEAL OVERHAUL KIT

Note: Not illustrated

$84.99

$

In Stock, Qty 7

0

99

Exmark 126-2479

KIT, 10CC/12CC PUMP KIT

Note: Not illustrated

$406.99

$

Usually ships in 3-6 days

0

99

Exmark 133-1779

Seal Kit

Note: Not illustrated

$

$

Not available
