STE600CKA363H1 - Exmark 36" Staris E-Series Stand-On Mower, Kaw (SN: 406294345 - 408644345) (Rev A) (2020) Park Brake Assembly Parts Diagram

36" Staris E-Series Stand-On Mower, Kaw

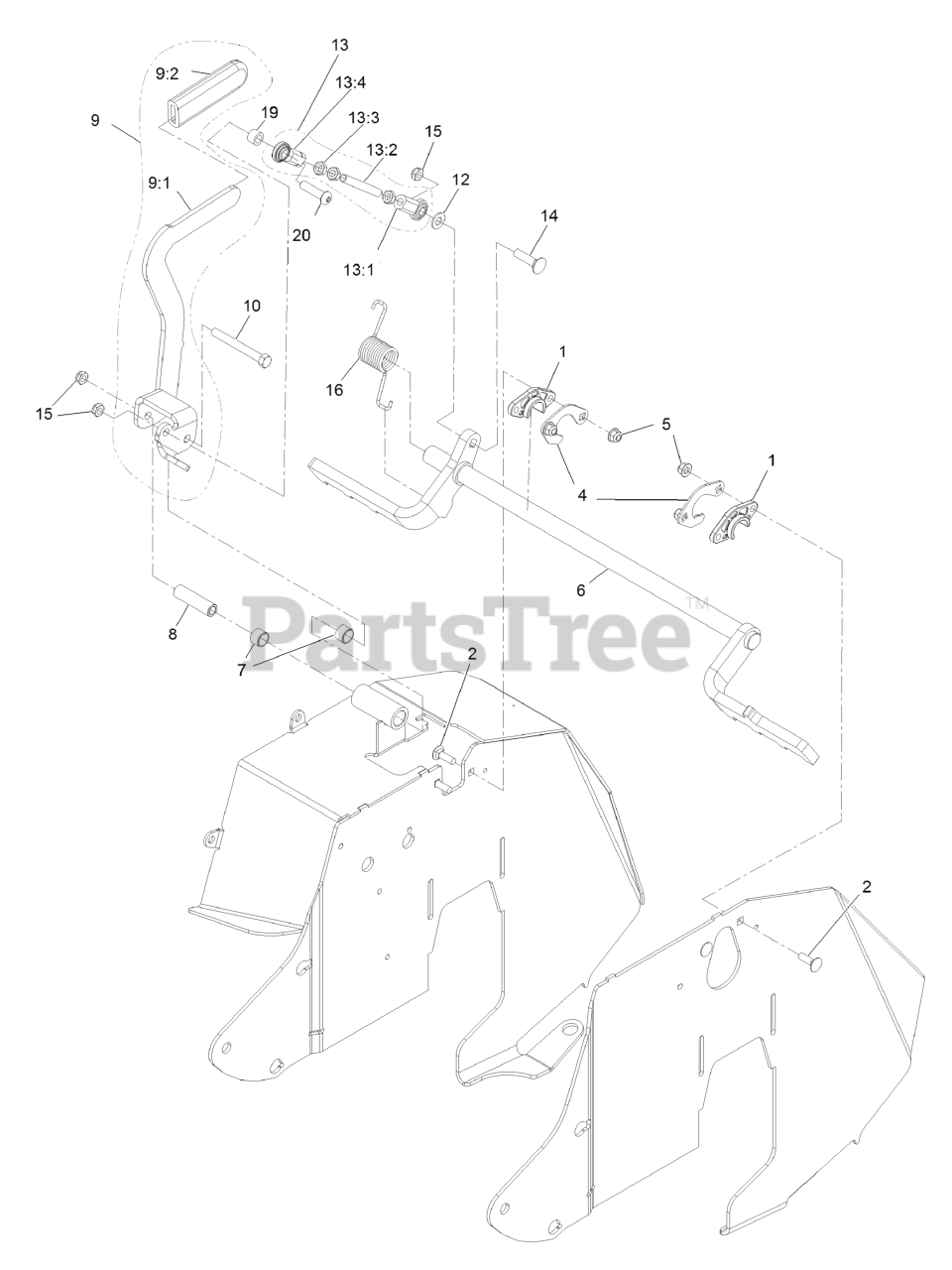

Park Brake Assembly Parts Diagram

  • Title

1

Exmark 115-5065

BUSHING-FLANGE

$7.99

$

In Stock, Qty 13

0

2

Exmark 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

4

Exmark 135-7867

SUPPORT, BEARING

$5.99

$

Usually ships in 3-6 days

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 135-1950-03

WLD-BRAKE SHAFT 32/36

$158.99

$

Usually ships in 3-6 days

0

7

Exmark 1-413347

SLEEVE-BUSHING

$2.99

$

In Stock, Qty 20+

0

8

Exmark 142-2558

SPACER, BRAKE PIVOT

$10.99

$

Usually ships in 3-6 days

0

9

Exmark 142-2560

ASM, LEVER W/ GRIP

$80.99

$

Usually ships in 3-6 days

0

9:2

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, Qty 5

0

10

Exmark 112-7161

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

12

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Exmark 142-2562

ASM, BRAKE LINK

$65.99

$

Usually ships in 3-6 days

0

13:1

Exmark 103-0608

JOINT-BALL, END

$31.99

$

In Stock, Qty 5

0

13:2

Exmark 142-4034

LINKAGE, BRAKE

$22.99

$

In Stock, only 1 left!

0

13:3

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

13:4

Exmark 103-1167

JOINT-BALL END, LH

$31.99

$

In Stock, Qty 10

0

14

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

15

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

16

Exmark 108-4052

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

19

Exmark 142-4035

SPACER

$6.99

$

Usually ships in 3-6 days

0

20

Exmark 95-3857

Screw-HSBH

$4.49

$

Usually ships in 3-6 days

0
