STE600CKA323H1 - Exmark 32" Staris E-Series Stand-On Mower, Kaw (SN: 411294212 - 413950473) (Rev A) (2022) Electrical Assembly Parts Diagram

32" Staris E-Series Stand-On Mower, Kaw

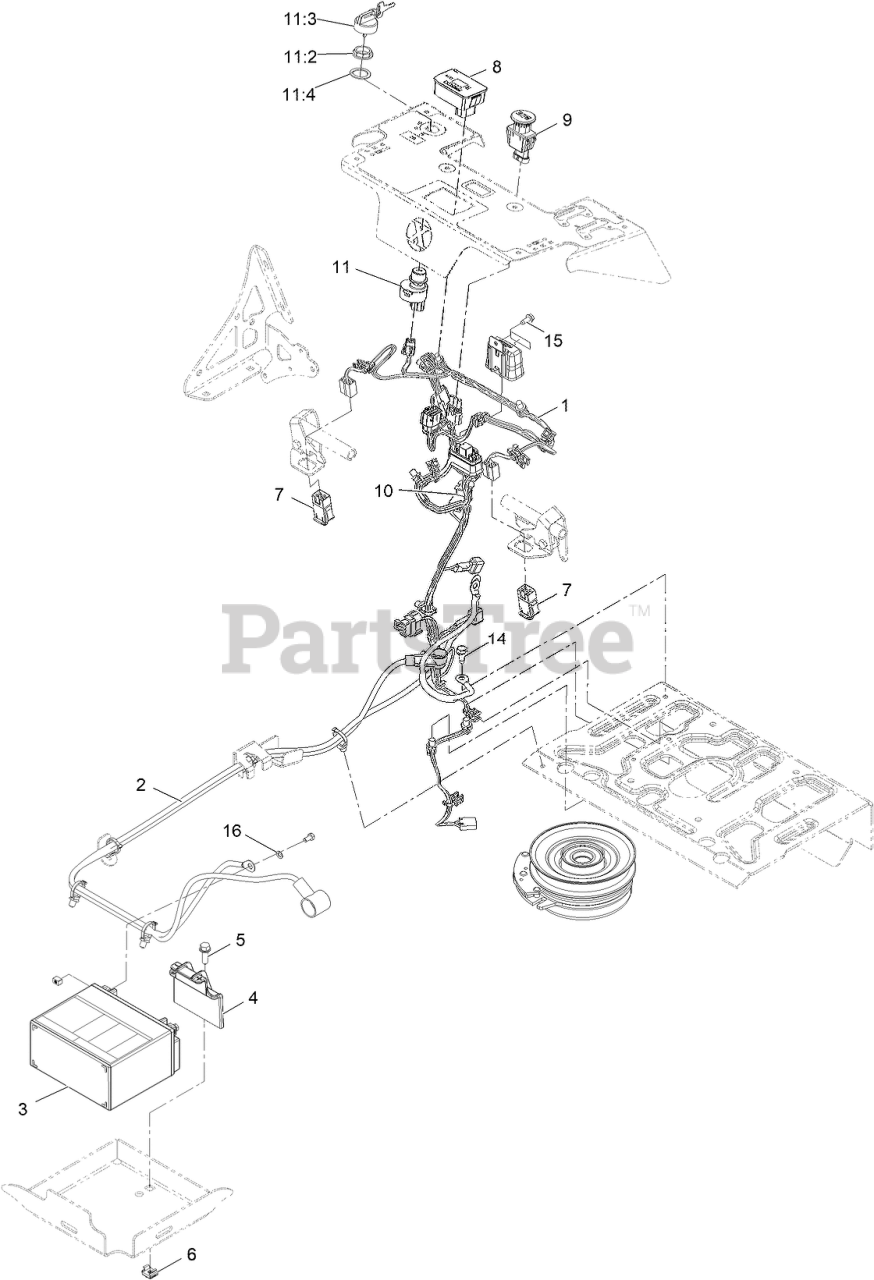

Electrical Assembly Parts Diagram

  • Title

1

Exmark 142-2926

HARNESS-WIRING

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$325.99

$

Usually ships in 3-6 days

0

2

Exmark 135-2255

HARNESS-BATTERY

$115.99

$

Usually ships in 3-6 days

0

3

Exmark 142-7427

BATTERY-AGM
(Superseded to 142-7345)

$244.90

$

Usually ships in 4-12 days

0

4

Exmark 135-4422

HOLD DOWN, BATTERY

$7.49

$

Usually ships in 3-6 days

0

5

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

6

Exmark 135-4473

NUT, SNAP

$2.99

$

Usually ships in 3-6 days

0

7

Exmark 104-3338

SWITCH-DELTA

$54.99

$

Usually ships in 3-6 days

0

8

Exmark 135-7189

Module-Hour Meter

$212.99

$

In Stock, only 1 left!

0

9

Exmark 126-6187

SWITCH-PTO, SEALED

$54.99

$

In Stock, Qty 20+

0

10

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

11

Exmark 126-6285

IGNITION SWITCH ASM

$54.99

$

In Stock, Qty 20+

0

11:2

Exmark 108-8660

NUT-MOUNTING

$35.99

$

In Stock, only 3 left!

0

11:3

Exmark 106-5270

IGNITION KEY SET

$22.99

$

In Stock, Qty 18

0

11:4

Exmark 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 1 left!

0

14

Exmark 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

15

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

16

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

99

Exmark 142-7682

HARDWARE KIT, BATTERY

Note: Not illustrated

$9.49

$

Usually ships in 3-6 days
