STE600CKA323H1 - Exmark 32" Staris E-Series Stand-On Mower, Kaw (SN: 408644346 - 411294211) (Rev A) (2021) Platform Assembly Parts Diagram

32" Staris E-Series Stand-On Mower, Kaw

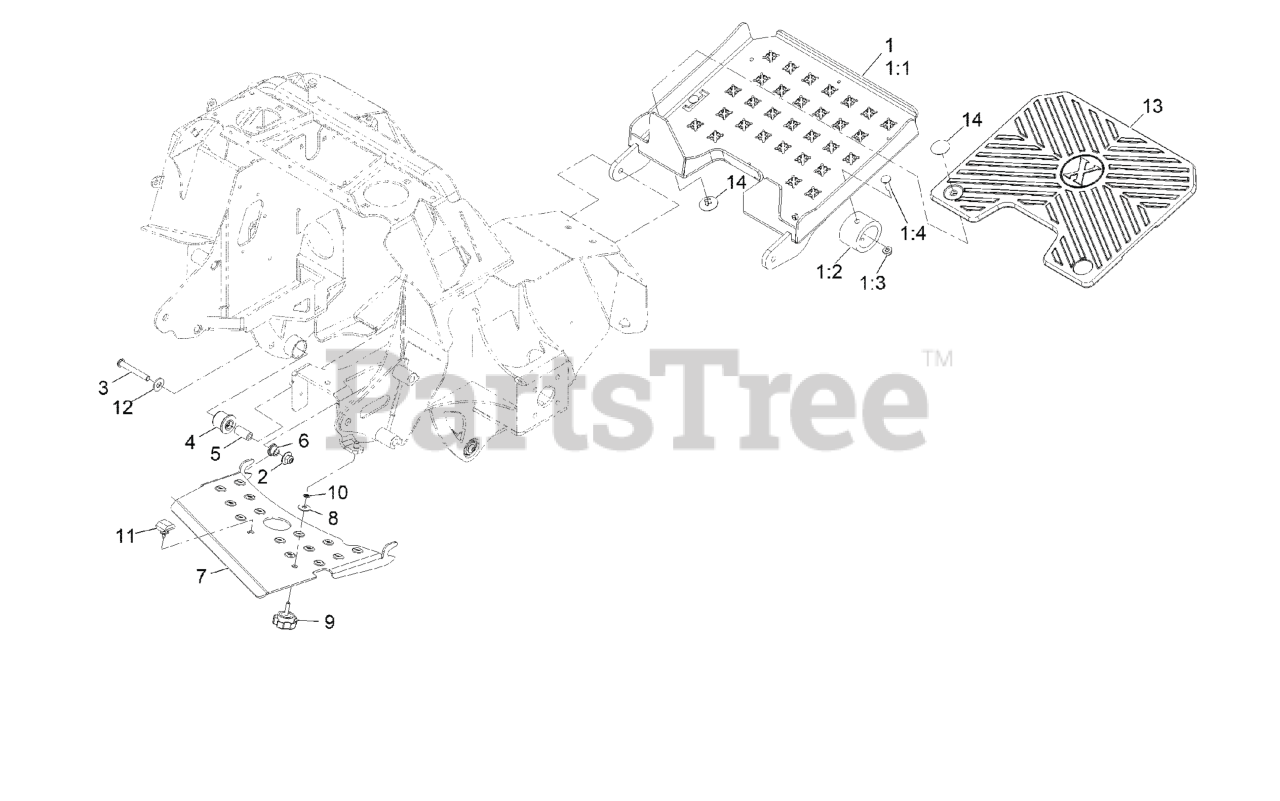

Platform Assembly Parts Diagram

  • Title

1

Exmark 142-2710

ASM-PLATFORM

$321.99

$

Usually ships in 3-6 days

0

1:1

Exmark 142-2470-05

WELD-PLATFORM

$277.99

$

Usually ships in 3-6 days

0

1:2

Exmark 135-2548

BUMPER-ISOLATOR

$20.99

$

In Stock, only 2 left!

0

1:3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

1:4

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

2

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

3

Exmark 135-7158

SCREW-HSBH

$5.49

$

Usually ships in 3-6 days

0

4

Exmark 126-8360

BUSHING-RUBBER, SUSPENSION

$2.99

$

In Stock, Qty 20+

0

5

Exmark 108-6544

SPACER

$13.99

$

In Stock, Qty 20+

0

6

Exmark 109-8788

BUSHING-FLANGED

$6.99

$

In Stock, Qty 20+

0

7

Exmark 142-6014-03

DEFLECTOR, AIR, 32

$104.99

$

Usually ships in 3-6 days

0

8

Exmark 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

9

Exmark 135-7382

KNOB

$5.49

$

In Stock, only 1 left!

0

10

Exmark 1-803037

NUT-RETAINING

$1.49

$

Usually ships in 3-6 days

0

11

Exmark 126-9966

BUMPER-ROPS

$2.99

$

In Stock, only 1 left!

0

12

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

13

Exmark 142-3224

PAD-PLATFORM

$78.99

$

Usually ships in 3-6 days

0

14

Exmark 142-3247

RIVET-RATCHET

$3.49

$

Usually ships in 3-6 days

0
