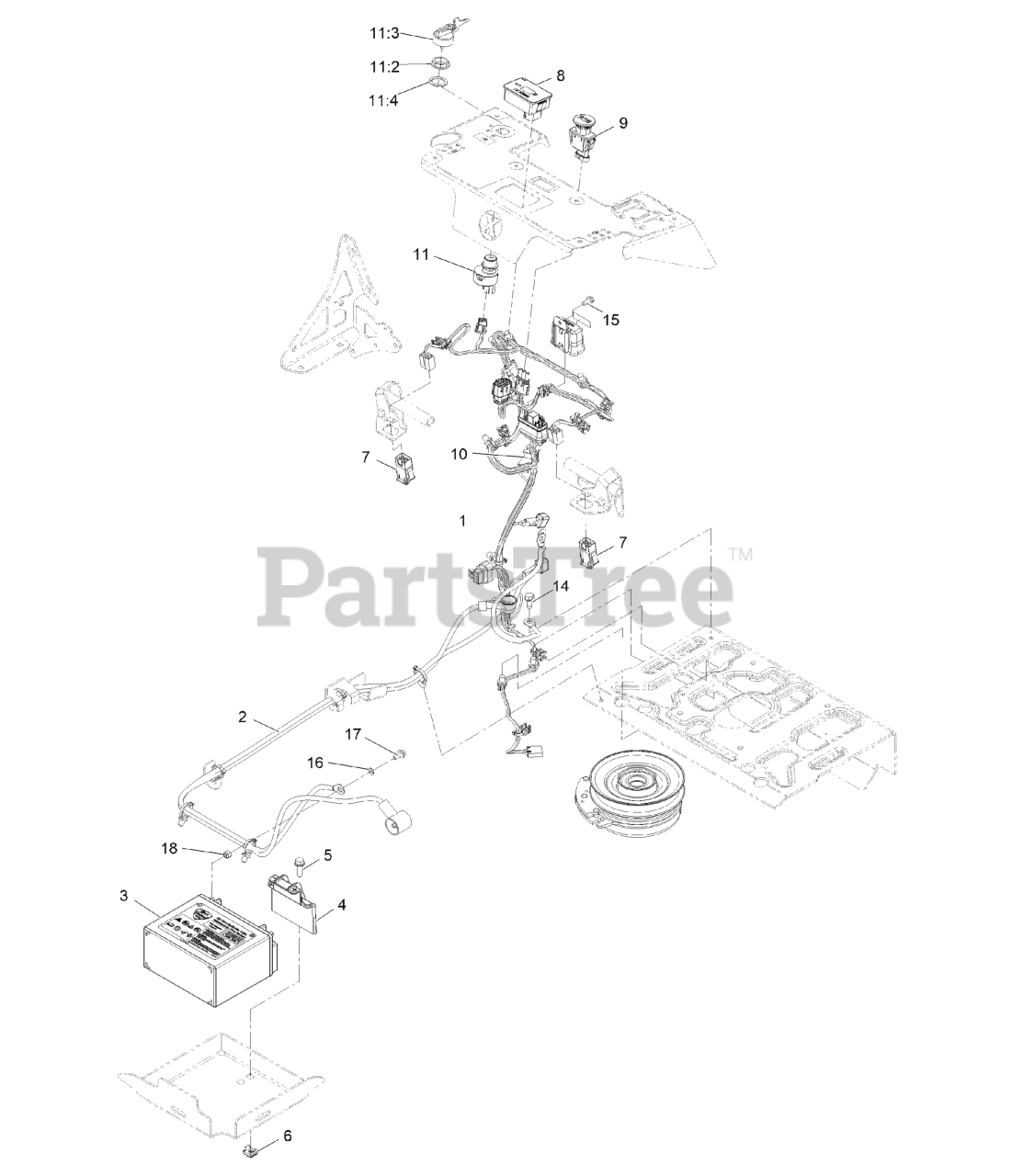

  • Title

1

Exmark 142-2926

HARNESS-WIRING

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$325.99

$

Usually ships in 3-6 days

0

2

Exmark 135-2255

HARNESS-BATTERY

$115.99

$

Usually ships in 3-6 days

0

3

Exmark 142-2167

USE 135-4421
(Superseded to 135-4421)

$244.90

$

Usually ships in 4-12 days

0

4

Exmark 135-4422

HOLD DOWN, BATTERY

$7.49

$

Usually ships in 3-6 days

0

5

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

6

Exmark 135-4473

NUT, SNAP

$2.99

$

Usually ships in 3-6 days

0

7

Exmark 104-3338

SWITCH-DELTA

$58.99

$

In Stock, only 4 left!

0

8

Exmark 135-7189

Module-Hour Meter

$212.99

$

In Stock, only 1 left!

0

9

Exmark 126-6187

SWITCH-PTO, SEALED

$58.99

$

In Stock, Qty 20+

0

10

Exmark 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

11

Exmark 126-6285

IGNITION SWITCH ASM

$58.99

$

In Stock, Qty 20+

0

11:2

Exmark 108-8660

NUT-MOUNTING

$37.99

$

In Stock, only 3 left!

0

11:3

Exmark 106-5270

IGNITION KEY SET

$22.99

$

In Stock, Qty 20+

0

11:4

Exmark 108-8659

WASHER-BACKUP

$15.99

$

In Stock, only 1 left!

0

14

Exmark 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, only 3 left!

0

15

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, only 2 left!

0

16

Exmark 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

17

Exmark 126-1592

SCREW-HEAD, FLANGE

$1.49

$

In Stock, only 1 left!

0

18

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
