STE600CKA323H1 - Exmark 32" Staris E-Series Stand-On Mower, Kaw (SN: 408644346 - 411294211) (Rev A) (2021) Deck Lift Assembly Parts Diagram

32" Staris E-Series Stand-On Mower, Kaw

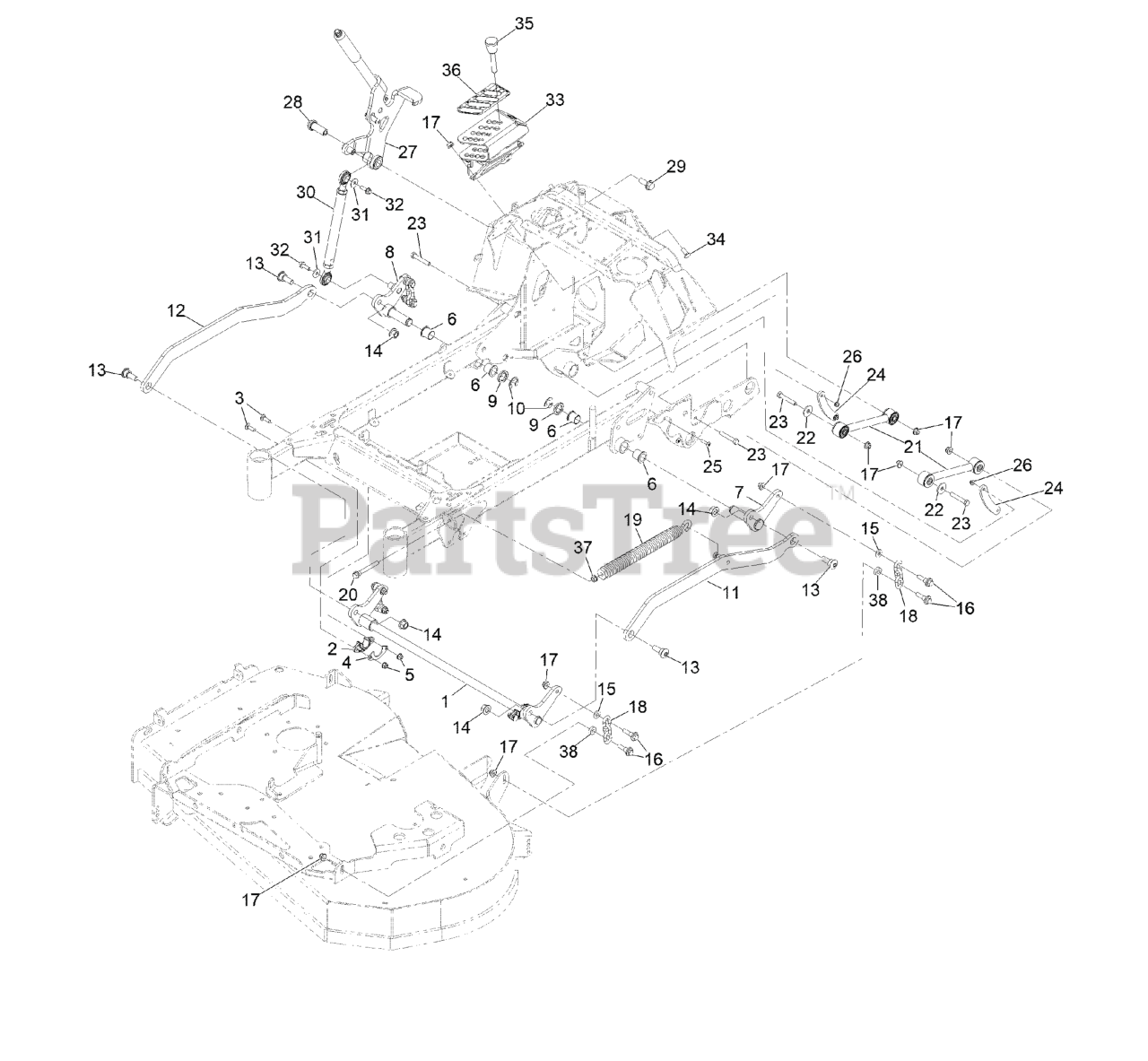

Deck Lift Assembly Parts Diagram

  • Title

1

Exmark 142-2566-03

WELD, HOC LIFT SHAFT

$184.99

$

Usually ships in 3-6 days

0

2

Exmark 115-5065

BUSHING-FLANGE

$7.99

$

In Stock, Qty 12

0

3

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

4

Exmark 116-2887

GUSSET-LIFT, DECK

$5.49

$

In Stock, Qty 9

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

6

Exmark 135-1248

BUSHING, IGUS

$5.49

$

Usually ships in 3-6 days

0

7

Exmark 142-4524-03

WELD, BELLCRANK, LT RR

$128.99

$

Usually ships in 3-6 days

0

8

Exmark 142-2570-03

WELD, BELLCRANK, RT RR

$139.99

$

Usually ships in 3-6 days

0

9

Exmark 142-3444

SPACER, HOC PIVOT

$5.49

$

Usually ships in 3-6 days

0

10

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 7

0

11

Exmark 142-4521-03

WELD, LIFT STRAP, LT

$67.99

$

Usually ships in 3-6 days

0

12

Exmark 142-4522-03

STRAP, LIFT RT

$67.99

$

Usually ships in 3-6 days

0

13

Exmark 135-1259

BOLT, SHOULDER

$16.99

$

Usually ships in 3-6 days

0

14

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

15

Exmark 43-0940

SPACER

$5.49

$

In Stock, Qty 20+

0

16

Exmark 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, only 3 left!

0

17

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Exmark 103-9859

CHAIN-DECKLIFT

$6.99

$

Usually ships in 3-6 days

0

19

Exmark 116-0886

SPRING-EXTENSION

$136.99

$

In Stock, only 1 left!

0

20

Exmark 92-7674

BOLT-SHOULDER

$2.99

$

Usually ships in 3-6 days

0

21

Exmark 142-2588

ASM, STRUT W/ BUSHINGS

$29.99

$

Usually ships in 3-6 days

0

22

Exmark 2844

WASHER

$2.99

$

In Stock, Qty 16

0

23

Exmark 104-3396

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

24

Exmark 142-2772

STRIP, RUB

$15.99

$

Usually ships in 3-6 days

0

25

Exmark 32105-32

SCREW-TTH

$1.49

$

Usually ships in 3-6 days

0

26

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Exmark 142-2579

ASM, HOC LEVER

$130.99

$

Usually ships in 3-6 days

0

28

Exmark 142-2181

PIVOT, HOC LEVER

$15.99

$

Usually ships in 3-6 days

0

29

Exmark 3234-38

SCREW-HHF

$5.99

$

In Stock, only 3 left!

0

30

Exmark 142-2581

ASM, LIFT ROD

$112.99

$

Usually ships in 3-6 days

0

31

Exmark 1-603716

WASHER-FRICTION

$5.49

$

In Stock, only 2 left!

0

32

Exmark 115-5142

Screw-HHF

$9.49

$

In Stock, only 1 left!

0

33

Exmark 142-2585-03

WELD, HOC INDEX

$151.99

$

Usually ships in 3-6 days

0

34

Exmark 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

35

Exmark 126-5401

PIN-HOC

$21.99

$

Usually ships in 3-6 days

0

36

Exmark 142-3087

DECAL-HEIGHT OF CUT

$13.99

$

Usually ships in 3-6 days

0

37

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

38

Exmark 5-0652

SPACER

$7.49

$

In Stock, Qty 5

0
