STE600CKA323H1 - Exmark 32" Staris E-Series Stand-On Mower, Kaw (SN: 408644346 - 411294211) (Rev A) (2021) Caster Wheel Assembly Parts Diagram

32" Staris E-Series Stand-On Mower, Kaw

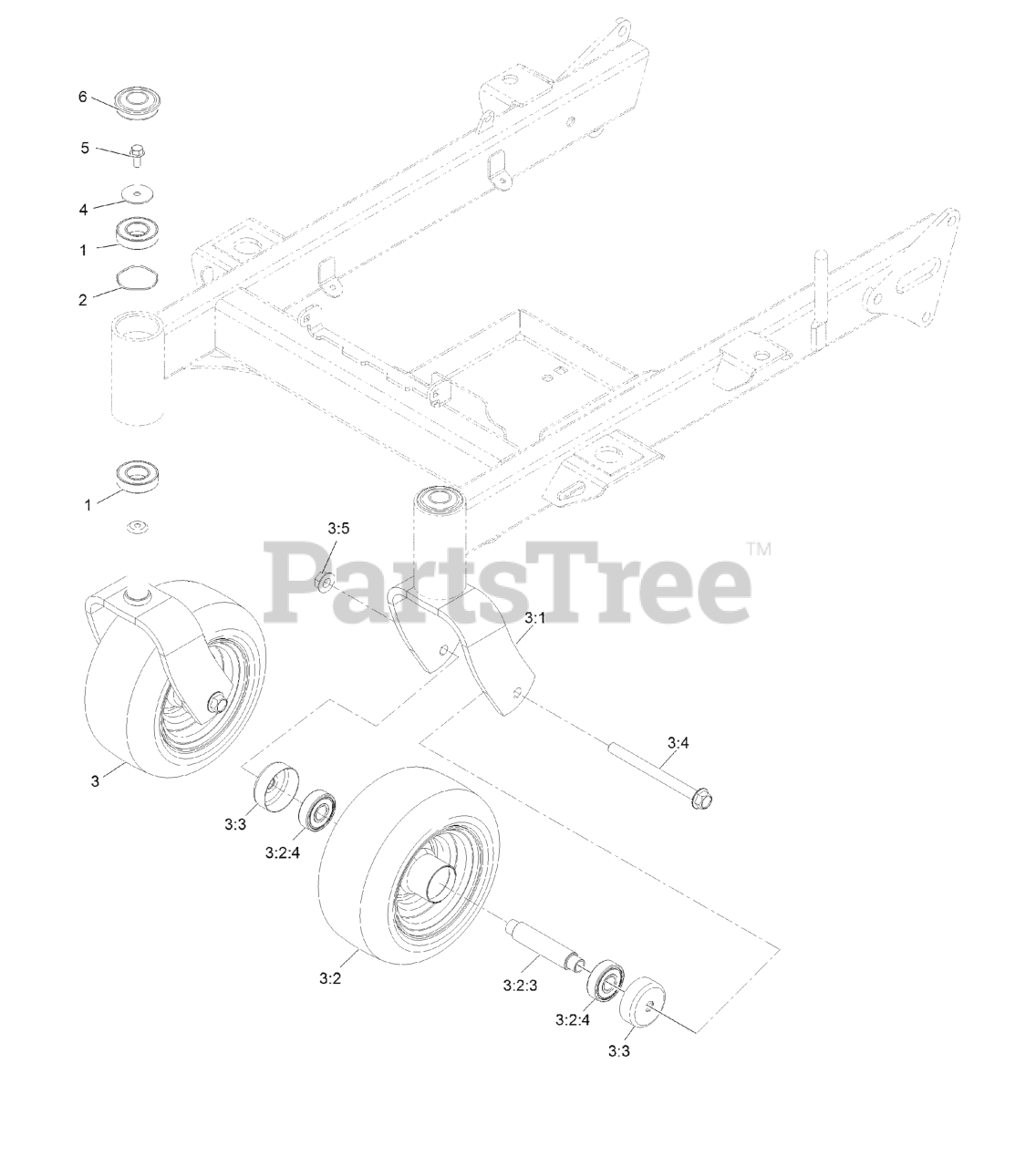

Caster Wheel Assembly Parts Diagram

  • Title

1

Exmark 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

2

Exmark 126-5897

SPRING

$1.49

$

In Stock, Qty 17

0

3

ASM-Caster Fork W/Tire

Note: Not serviced separately

$

$

Not available

3:1

Exmark 135-1651-01

ASM-CASTER FORK

$90.99

$

In Stock, only 2 left!

0

3:2

Exmark 135-4518

ASM-TIRE&WHL SP 9X4.50-5

$144.99

$

In Stock, only 2 left!

0

3:2:3

Exmark 126-7904

AXLE-CASTER

$23.99

$

In Stock, only 2 left!

0

3:2:4

Exmark 116-4004

BEARING

$19.99

$

In Stock, Qty 20+

0

3:3

Exmark 135-3218

GUARD, SEAL

$5.99

$

In Stock, only 2 left!

0

3:4

Exmark 135-4633

SCREW-HHF

$7.99

$

Usually ships in 3-6 days

0

3:5

Exmark 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

4

Exmark 3256-68

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

5

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

6

Exmark 116-4348

CAP-GREASE

$5.49

$

In Stock, Qty 15

0
