STE600CKA32300 - Exmark 32" Staris E-Series Stand-On Mower, Kaw (SN: 406294345 - 408644345) (Rev A) (2020) Park Brake Assembly Parts Diagram

32" Staris E-Series Stand-On Mower, Kaw

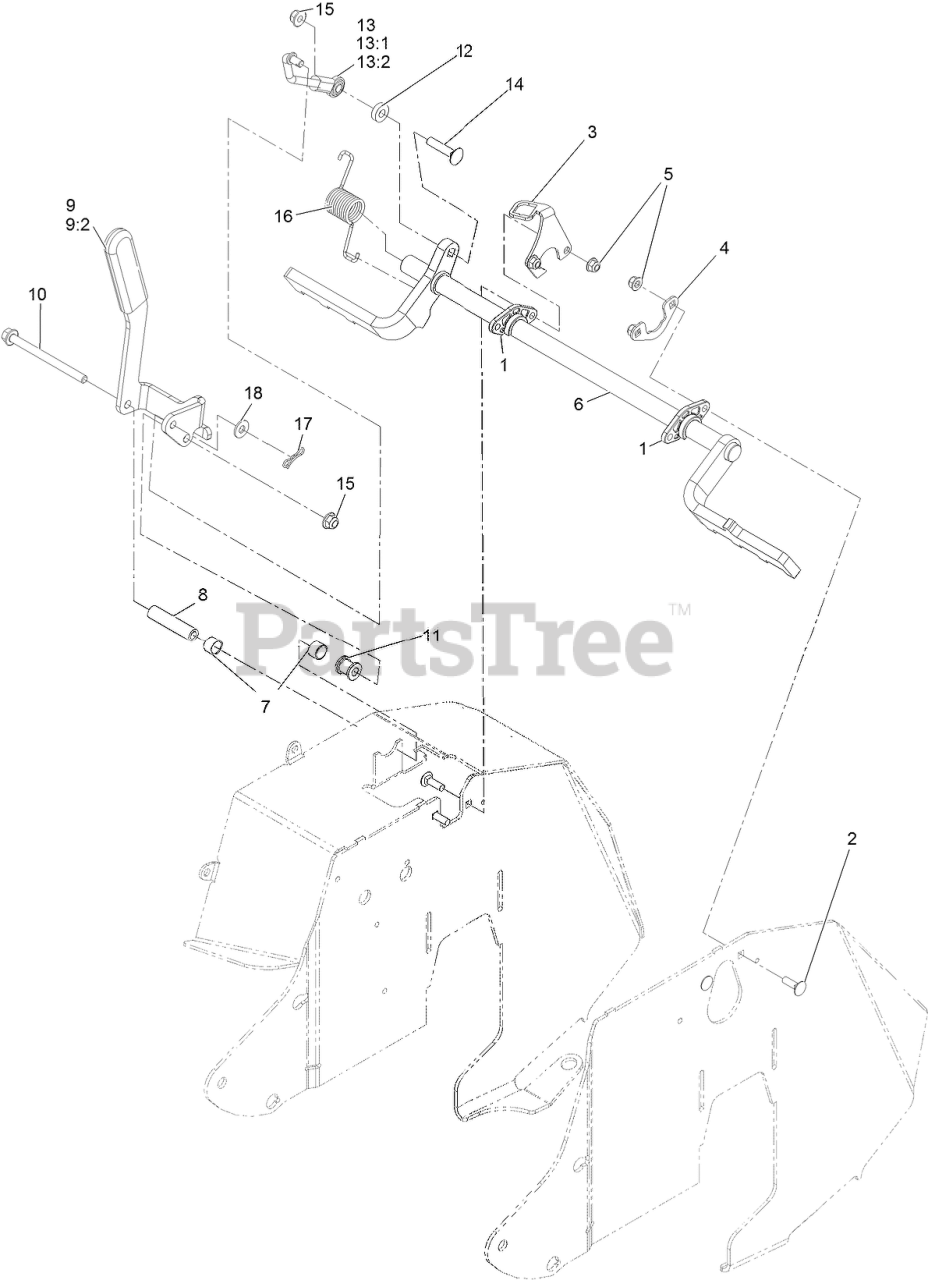

Park Brake Assembly Parts Diagram

  • Title

1

Exmark 115-5065

BUSHING-FLANGE

$7.99

$

In Stock, Qty 12

0

2

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

3

Exmark 135-5924

Bracket-Switch

$5.99

$

Usually ships in 3-6 days

0

4

Exmark 135-5132

SUPPORT, BEARING

$5.99

$

In Stock, only 4 left!

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

6

Exmark 135-1950-03

Wld-Brake Shaft 32/36

$158.99

$

Usually ships in 3-6 days

0

7

Exmark 1-413347

SLEEVE-BUSHING

$2.99

$

In Stock, Qty 20+

0

8

Exmark 135-4706

BUSHING-PIVOT

$21.99

$

Usually ships in 3-6 days

0

9

Exmark 135-1949

ASM-Brake Lever With Grip

$27.99

$

Usually ships in 3-6 days

0

9:2

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0

10

Exmark 131-8571

SCREW-HF

$7.49

$

Usually ships in 3-6 days

0

11

Exmark 135-6040

Spacer-.39Idx.88Odx.88L

$14.99

$

Usually ships in 3-6 days

0

12

Exmark 5-0652

SPACER

$7.49

$

In Stock, Qty 5

0

13

Exmark 135-4576

ASM-Brake Link

$26.99

$

Usually ships in 3-6 days

0

13:1

Exmark 103-0608

JOINT-BALL, END

$33.99

$

In Stock, Qty 5

0

13:2

Exmark 135-1974

Rod-Brake

$28.99

$

Usually ships in 3-6 days

0

14

Exmark 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

15

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

17

Exmark 119-1415

PIN-COTTER, LOCKING

$1.49

$

In Stock, Qty 7

0

18

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
