STE600CKA32300 - Exmark 32" Staris E-Series Stand-On Mower, Kaw (SN: 406294345 - 408644345) (Rev A) (2020) Main Frame Assembly Parts Diagram

32" Staris E-Series Stand-On Mower, Kaw

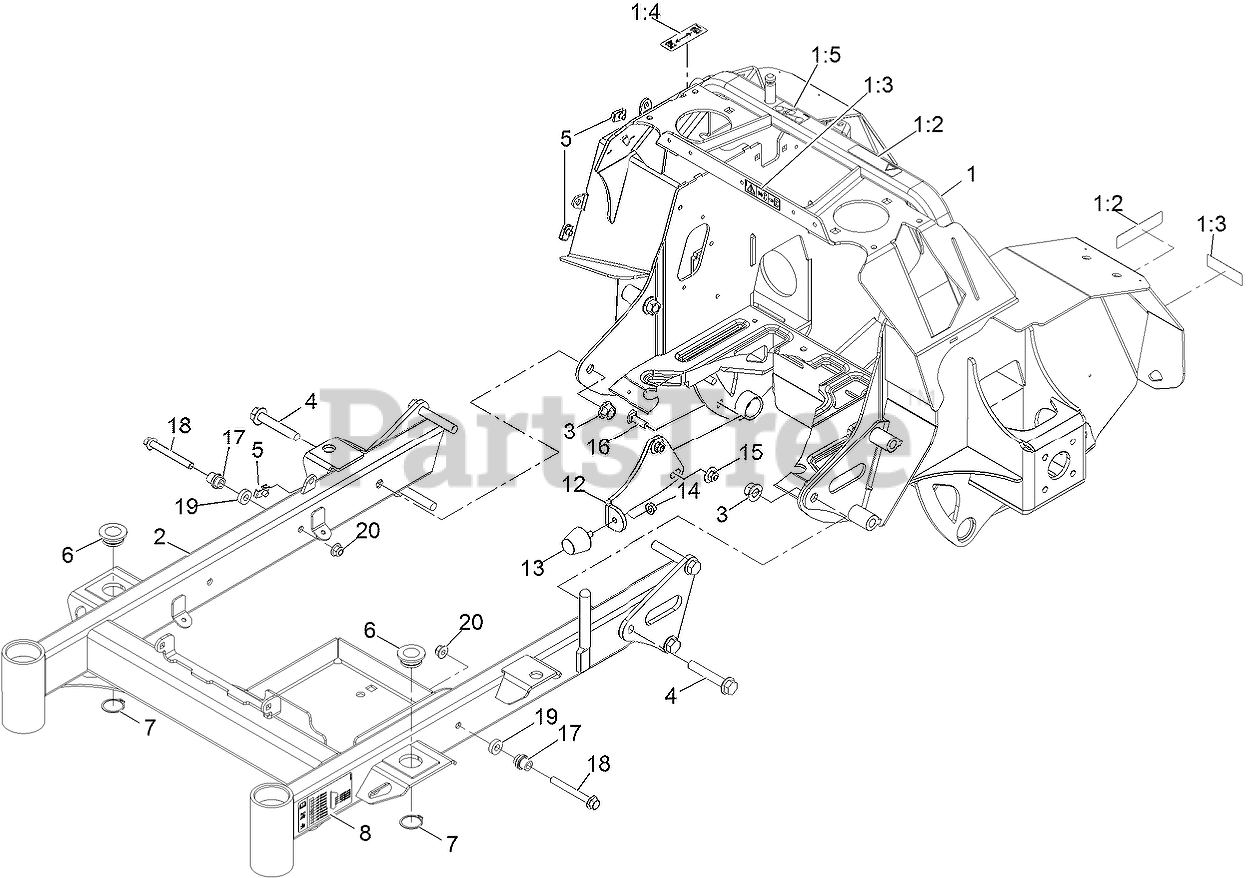

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 135-2575

ASM-Frame

$2007.99

$

Usually ships in 3-6 days

0

1:2

Exmark 98-1977

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

1:3

Exmark 116-8559

DECAL, COVER MISSING

$19.99

$

Usually ships in 3-6 days

0

1:4

Exmark 115-9625

DECAL-BRAKE, PARKING

$5.49

$

Usually ships in 3-6 days

0

1:5

Exmark 135-2267

DECAL-BELT ROUTING HYD

$3.49

$

Usually ships in 3-6 days

0

2

Exmark 135-1612-01

ASM-Frt Frame 32/36 [red]

$923.99

$

Usually ships in 3-6 days

0

3

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

4

Exmark 3234-40

SCREW-HF

$14.99

$

Usually ships in 3-6 days

0

5

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

6

Exmark 1-513336

BUSHING-DECK

$26.99

$

In Stock, Qty 20+

0

7

Exmark 32120-33

RING-RETAINING

$7.99

$

In Stock, Qty 20+

0

8

Exmark 135-2562

Decal-Height Of Cut Sm

$6.49

$

Usually ships in 3-6 days

0

12

Exmark 135-3889-03

Bracket-Bumper 32

$27.99

$

Usually ships in 3-6 days

0

13

Exmark 1-543963

BUMPER-RUBBER

$25.99

$

In Stock, only 2 left!

0

14

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

16

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

17

Exmark 142-3130

Bushing-Latch

$2.99

$

In Stock, only 4 left!

0

18

Exmark 3234-41

Screw-HHF

$6.49

$

Usually ships in 3-6 days

0

19

Exmark 5-0652

SPACER

$8.49

$

In Stock, Qty 5

0

20

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
