STE600CKA32300 - Exmark 32" Staris E-Series Stand-On Mower, Kaw (SN: 404314159 - 406294344) (Rev C) (2019) Platform Assembly Parts Diagram

32" Staris E-Series Stand-On Mower, Kaw

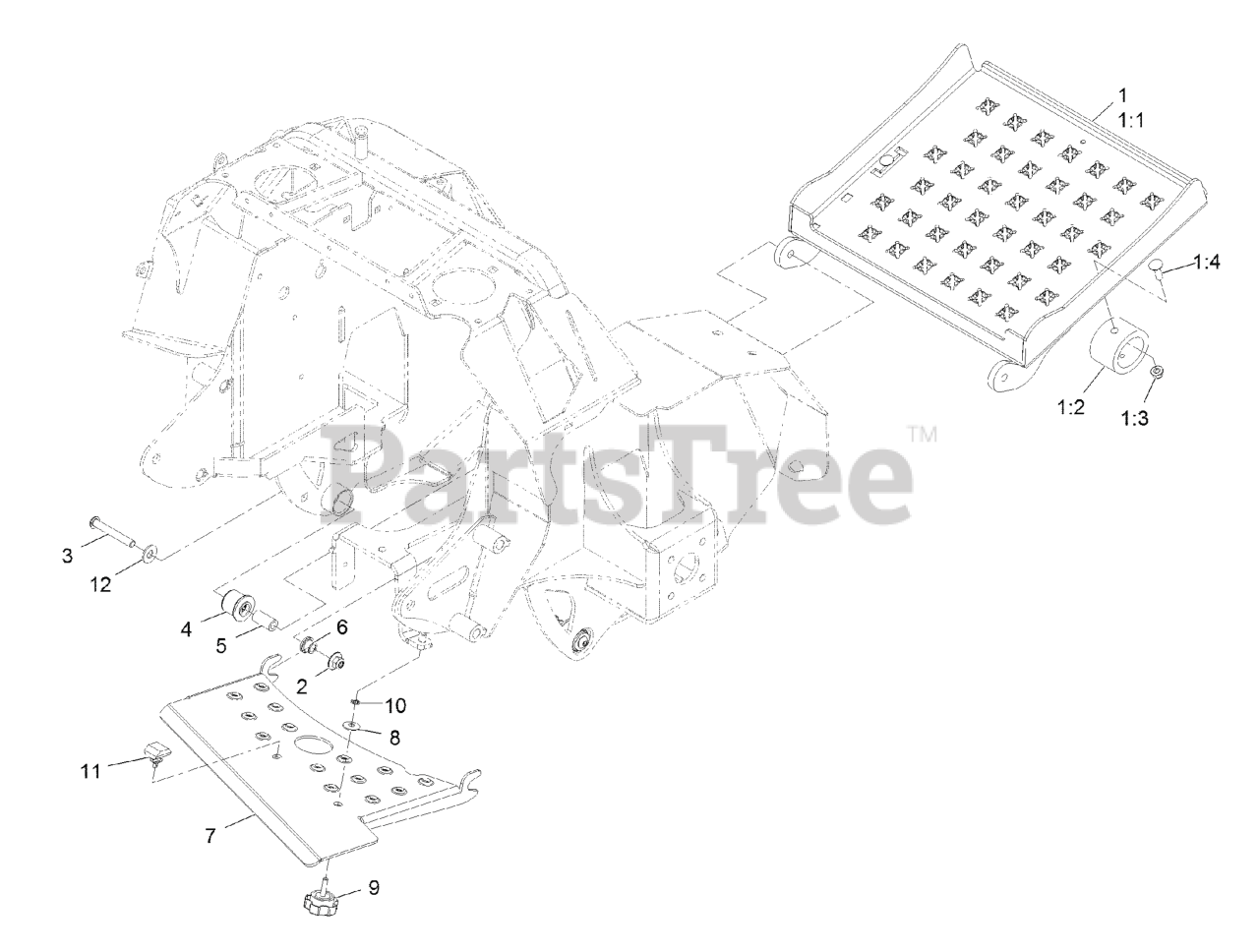

Platform Assembly Parts Diagram

  • Title

1

Exmark 135-1603

USE 142-2710
(Superseded to 142-2710)

$321.99

$

Usually ships in 3-6 days

0

1:1

Exmark 135-1602-03

USE 142-2470-05
(Superseded to 142-2470-05)

$277.99

$

Usually ships in 3-6 days

0

1:2

Exmark 135-2548

BUMPER-ISOLATOR

$20.99

$

In Stock, only 2 left!

0

1:3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

1:4

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

2

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

Note: a

$1.49

$

In Stock, Qty 20+

0

3

Exmark 135-7158

SCREW-HSBH

$5.49

$

Usually ships in 3-6 days

0

4

Exmark 126-8360

BUSHING-RUBBER, SUSPENSION

$2.99

$

In Stock, Qty 20+

0

5

Exmark 108-6544

SPACER

$13.99

$

In Stock, Qty 20+

0

6

Exmark 109-8788

BUSHING-FLANGED

$6.99

$

In Stock, Qty 20+

0

7

Exmark 135-6593-03

DEFLECTOR-AIR, 32

$96.99

$

In Stock, only 1 left!

0

8

Exmark 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

9

Exmark 135-7382

KNOB

$5.49

$

In Stock, only 1 left!

0

10

Exmark 1-803037

NUT-RETAINING

$1.49

$

Usually ships in 3-6 days

0

11

Exmark 126-9966

BUMPER-ROPS

$2.99

$

In Stock, only 1 left!

0

12

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0
