STE600CKA32300 - Exmark 32" Staris E-Series Stand-On Mower, Kaw (SN: 404314159 - 406294344) (Rev C) (2019) Fuel Assembly Parts Diagram

32" Staris E-Series Stand-On Mower, Kaw

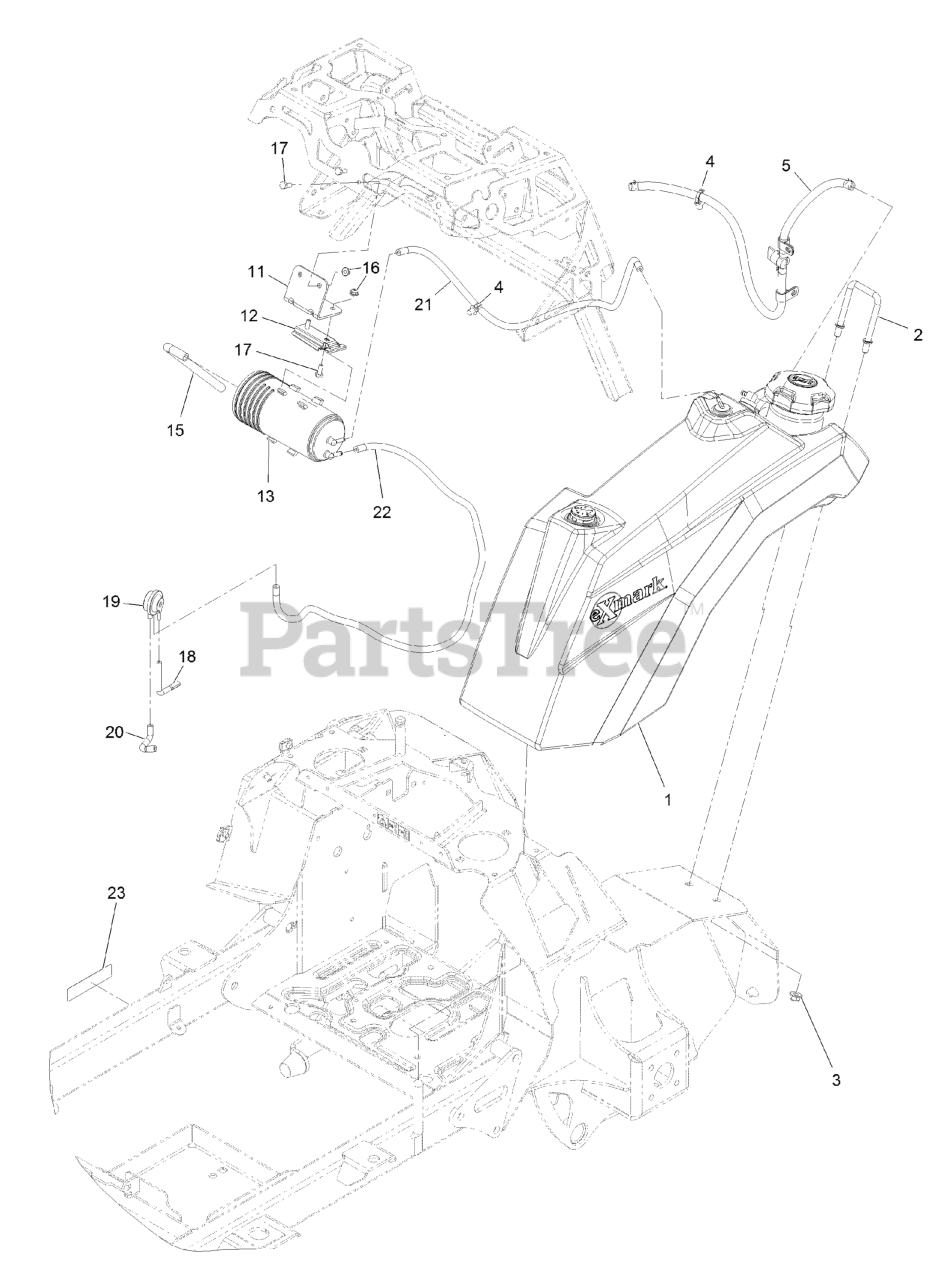

Fuel Assembly Parts Diagram

  • Title

1

Exmark 135-1919

ASSEMBLY, FUEL TANK

$630.99

$

Usually ships in 3-6 days

0

2

Exmark 135-1921

CLAMP, TANK

$23.99

$

In Stock, only 1 left!

0

3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0

5

Exmark 135-6842

USE 142-3156
(Superseded to 142-3596)

$83.99

$

Usually ships in 3-6 days

0

11

Exmark 135-4495-03

Bracket-Carbon Canister

$15.99

$

Usually ships in 3-6 days

0

12

Exmark 114-0292

BRACKET-CANISTER, CARBON

$12.99

$

Usually ships in 3-6 days

0

13

Exmark 117-1221

CANISTER-CARBON, 800CC

$75.99

$

In Stock, only 1 left!

0

15

Exmark 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 2 left!

0

16

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

17

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Exmark 119-8501

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

19

Exmark 116-2232

VALVE-CONTROL, VACUUM

$33.99

$

In Stock, only 3 left!

0

20

Exmark 119-8502

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

21

Exmark 119-6074

HOSE-FUEL

$14.99

$

Usually ships in 3-6 days

0

22

Exmark 132-6854

HOSE-FUEL

$18.99

$

Usually ships in 3-6 days

0

23

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0
