STE600CKA32300 - Exmark 32" Staris E-Series Stand-On Mower, Kaw (SN: 404314159 - 406294344) (Rev C) (2019) Controls Assembly Parts Diagram

32" Staris E-Series Stand-On Mower, Kaw

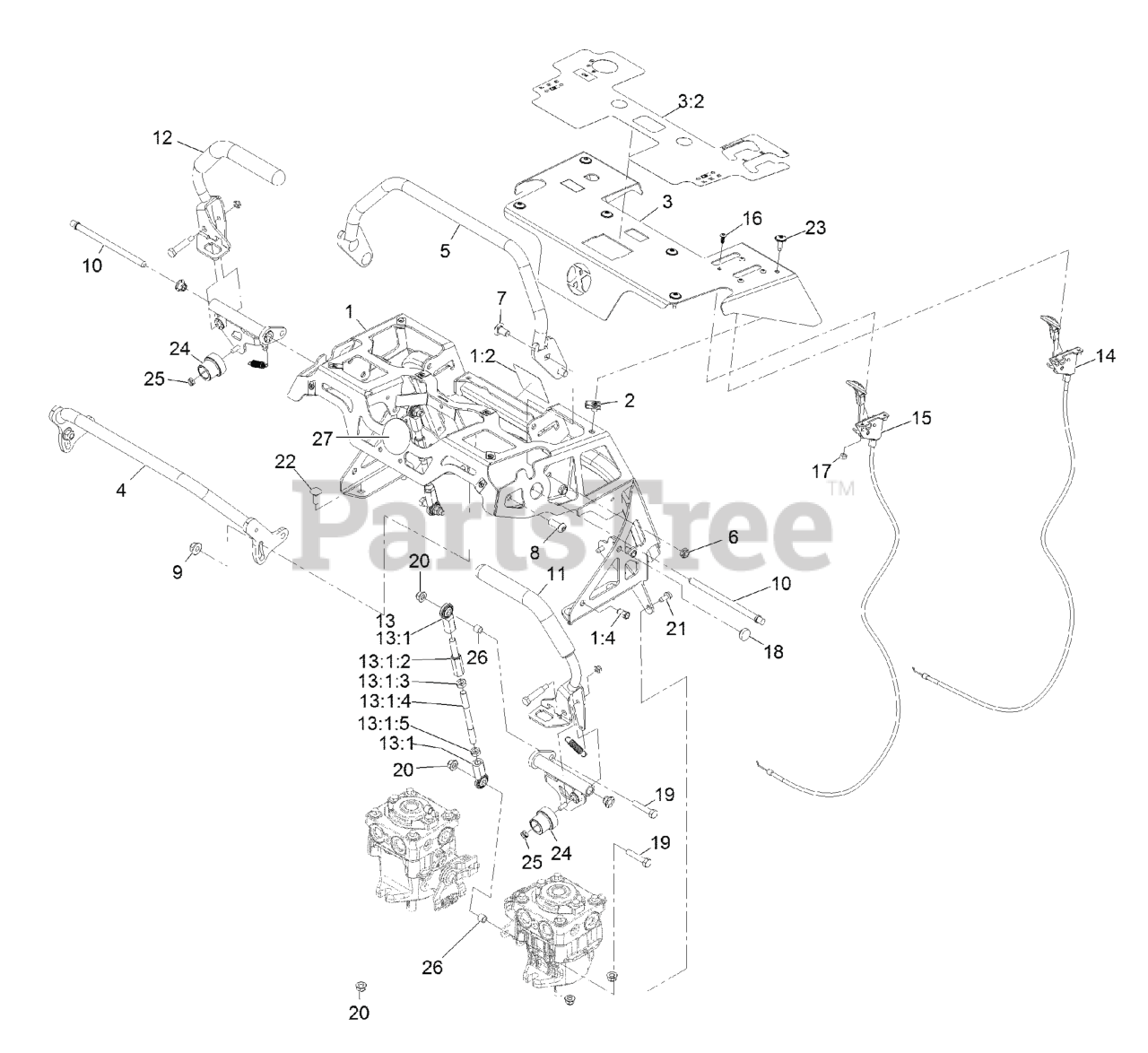

Controls Assembly Parts Diagram

  • Title

1

Exmark 135-3683

ASM-CTRL TOWER

$415.99

$

Usually ships in 3-6 days

0

1:2

Exmark 115-4212

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

1:4

Exmark 138-2758

NUT-CLINCH,HEX

$1.49

$

Usually ships in 3-6 days

0

2

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

3

Exmark 135-2579

ASM, CONTROL PANEL W/ DECALS

$157.99

$

Usually ships in 3-6 days

0

3:2

Exmark 135-6773

DECAL-CONTROL PANEL NON-EFI

$31.99

$

Usually ships in 3-6 days

0

4

Exmark 135-3432-03

WELD, FRONT REF BAR

$42.99

$

Usually ships in 3-6 days

0

5

Exmark 135-3430-03

WELD, REAR REF BAR

$42.99

$

Usually ships in 3-6 days

0

6

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

7

Exmark 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

8

Exmark 3274-94

SCREW-HSBH

$2.99

$

Usually ships in 3-6 days

0

9

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 135-1277

PIN, PIVOT

$19.99

$

Usually ships in 3-6 days

0

11

Exmark 135-1304

ASM, MOTION CONTROL, LT

$97.99

$

Usually ships in 3-6 days

0

12

Exmark 135-1305

ASM, MOTION CONTROL, RT

$97.99

$

Usually ships in 3-6 days

0

13

Exmark 135-7116

ASM, LINKAGE

$51.99

$

In Stock, only 1 left!

0

13:1

ASM, Motion Control Link

Note: Not serviced separately

$

$

Not available

13:1:2

Exmark 116-4755

ROD-ADJUSTMENT

$49.99

$

Usually ships in 3-6 days

0

13:1:3

Exmark 3220-16

NUT-HEX JAM, LH

$1.99

$

In Stock, Qty 5

0

13:1:4

Exmark 135-1291

USE 135-1292
(Superseded to 135-1292)

$74.99

$

Usually ships in 3-6 days

0

13:1:5

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

14

Exmark 135-2168

CONTROL, CHOKE

$33.99

$

In Stock, only 1 left!

0

15

Exmark 135-2169

CONTROL, THROTTLE

$33.99

$

In Stock, only 1 left!

0

16

Exmark 135-3176

SCREW, BHCS

$2.99

$

Usually ships in 3-6 days

0

17

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

19

Exmark 322-8

SCREW-HH

$3.49

$

In Stock, Qty 6

0

20

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 9

0

22

Exmark 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

23

Exmark 126-8216

SCREW-TORX

$2.99

$

Usually ships in 3-6 days

0

24

Exmark 126-1499

CAM

$7.99

$

Usually ships in 3-6 days

0

25

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

27

Exmark 135-2281

DECAL-COVER

$2.99

$

Usually ships in 3-6 days

0
