STCII-61V-32BV - Scag Tiger Cat II 61" Zero-Turn Mower, 32hp Vanguard (SN: S8000001 - S8099999) STCII FUEL SYSTEM Parts Diagram

Tiger Cat II 61" Zero-Turn Mower, 32hp Vanguard

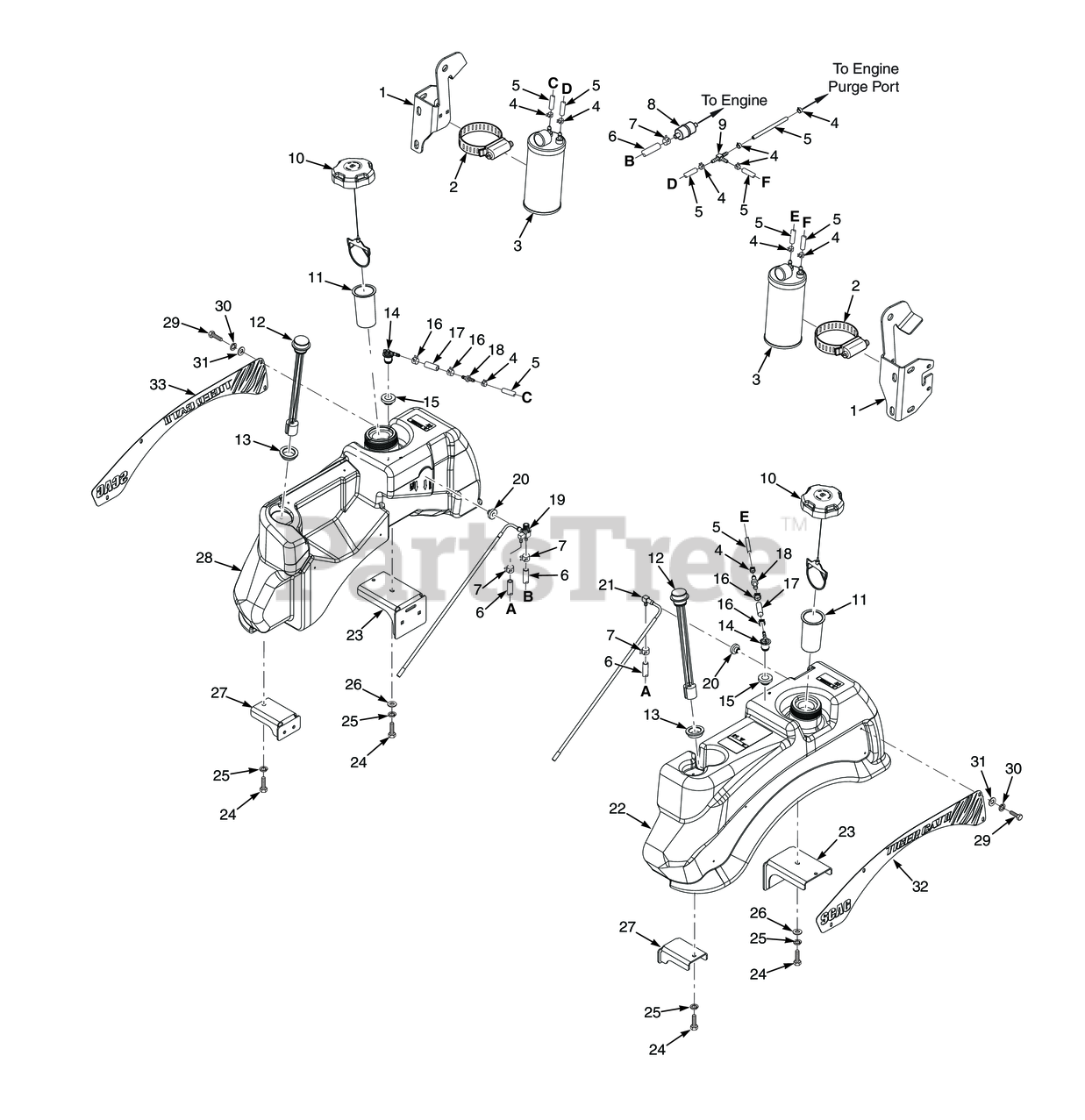

STCII FUEL SYSTEM Parts Diagram

  • Title

1

Scag 428574

ROPS Mount, LH

$

$

Not available

1

Scag 428575

ROPS Mount, RH

$

$

Not available

2

Scag 48136-17

Clamp, 3-1/2" Max. Dia.

$7.49

$

Usually ships in 2-12 days

0

3

Scag 484287

Carbon Canister - SVR-36A / SVR-48V

$93.99

$

Usually ships in 2-12 days

0

Scag 484366

Dust Filter, Carbon Canister

$2.99

$

In Stock, Qty 14

0

4

Scag 48059-05

Clamp, Vapor Recovery Hose 3/16"

$4.49

$

In Stock, only 3 left!

0

5

Scag 484345

Hose, Vapor Recovery 3/16" (order by inch)

$0.99

$

In Stock, Qty 20+

0

6

Scag 483617

Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) - Order by Inch

$0.99

$

In Stock, Qty 20+

0

7

Scag 48059-01

Clamp, Fuel Hose 1/4" Hose I.D.

$0.99

$

In Stock, Qty 7

0

8

Fuel Filter

Note: Available through engine manufacturer only.

$

$

Not available

9

Scag 48935-02

Tee, 3/16 x 3/16 x 3/16 Union, Hose Barb

$28.99

$

Usually ships in 2-12 days

0

10

Scag 484286

Fuel Cap w/ Tether (E.P.A.)

$53.99

$

In Stock, only 1 left!

0

Scag 484297

Fuel Cap w/Tethered - California Models Only

$63.99

$

Usually ships in 2-12 days

0

11

Scag 484279-01

Tube, Fuel Tank Insert - 4"

$4.49

$

In Stock, only 1 left!

0

12

Scag 484323

Fuel Gauge Assembly

$96.99

$

In Stock, only 4 left!

0

13

Scag 484242

Grommet, Fuel Gauge

$21.99

$

In Stock, only 2 left!

0

14

Scag 484333

Remote Vent, No Valve

$14.99

$

In Stock, only 1 left!

0

15

Scag 484285

Grommet, Viton,

$

$

Not available

16

Scag 48059-02

CLAMP, FUEL HOSE(KAWASAKI ONLY)

$0.99

$

In Stock, Qty 19

0

17

Scag 484347

Hose, 1/4" Vapor Recovery (order by inch)

$0.99

$

In Stock, Qty 20+

0

18

Scag 484343-01

Mender, 1/4 x 3/16 w/0.02 Hole

$26.99

$

In Stock, Qty 5

0

19

Scag 485637

Fuel Tube Assembly, Includes Valve

$87.99

$

In Stock, only 1 left!

0

20

Scag 482571

Bushing, 0.56" Dia. Viton

$12.99

$

In Stock, Qty 20+

0

21

Scag 484552

Fuel Tube Assembly, LH

$30.99

$

In Stock, only 2 left!

0

22

Scag 463297

Fuel Tank Assembly, LH (incl. # 12, 14, 15, 20, 21, 29, 30, 31, 32)

$

$

Not available

23

Scag 427063

Mounting Bracket, Fuel Tank Rear

$

$

Not available

24

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

25

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

26

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

27

Scag 425862

Mounting Bracket, Fuel Tank Front

$

$

Not available

28

Scag 463299

Fuel Tank Assembly, RH (incl. #12, 14, 15, 19, 20, 29, 30, 31, 33)

$

$

Not available

29

Scag 04001-44

Bolt, Hex Head 1/4-20 x .5" Battery, (Not Available Through Scag)

$0.99

$

In Stock, Qty 6

0

30

Scag 04030-02

Lockwasher, 1/4� Spring

$0.99

$

In Stock, Qty 20+

0

31

Scag 04041-22

Flatwasher, 1/4 (.258 x .500 x .0598)

$0.99

$

Usually ships in 2-12 days

0

32

Scag 428700

Logo, Scag Tiger Cat II (RH)

$

$

Currently unavailable

33

Scag 428699

Logo, Scag Tiger Cat II (LH)

$

$

Currently unavailable
