STCII-61V-32BV - Scag Tiger Cat II 61" Zero-Turn Mower, 32hp Vanguard (SN: S8000001 - S8099999) (Rev 01) ENGINE & ATTACHING PARTS Parts Diagram

Tiger Cat II 61" Zero-Turn Mower, 32hp Vanguard

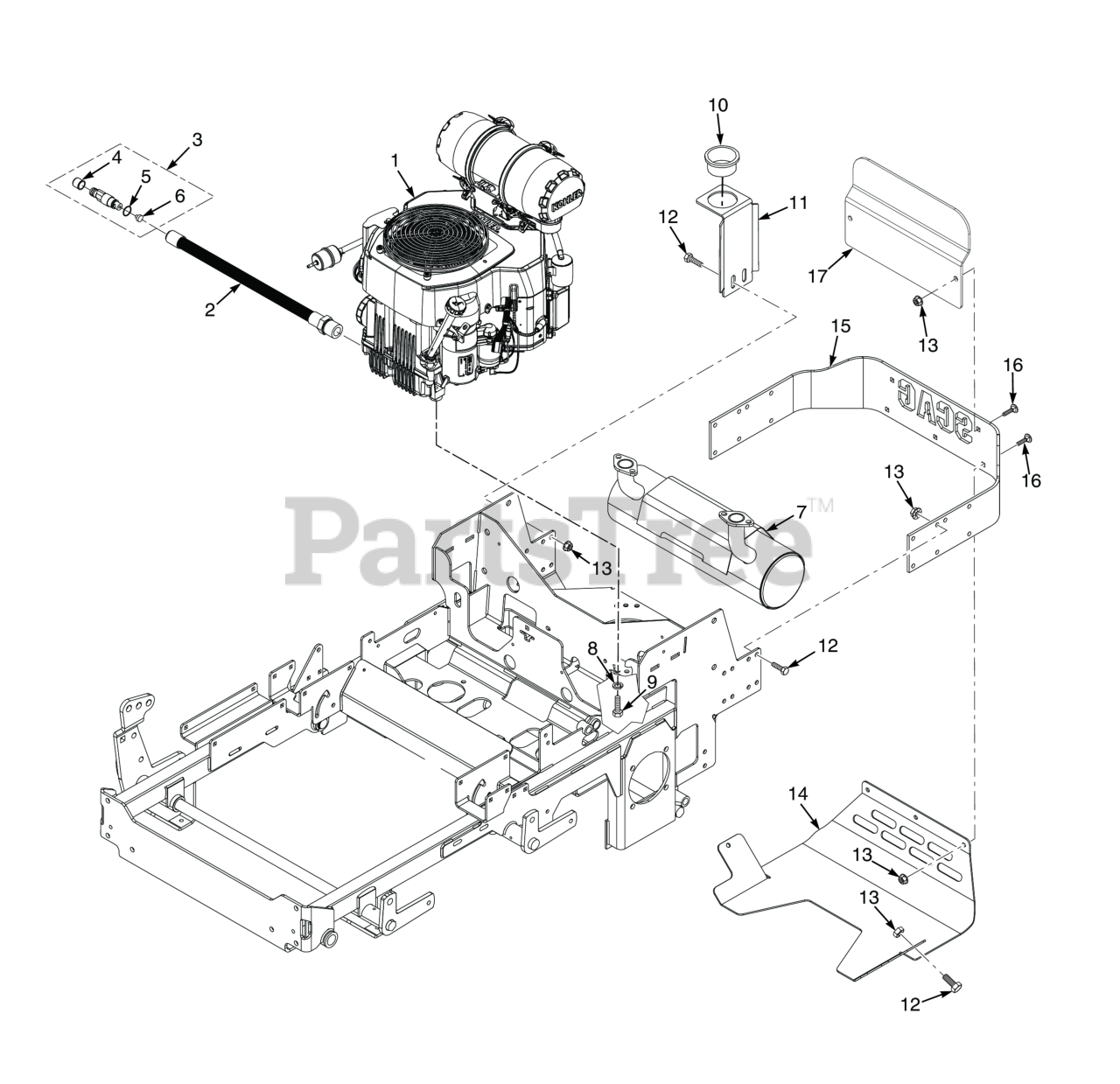

ENGINE & ATTACHING PARTS Parts Diagram

  • Title

Scag 486585

Engine, Briggs and Stratton 32BV

Note: Not available through Scag.

$

$

Currently unavailable

Scag 484599

Hose, OIl Drain, Briggs & Stratton

$60.99

$

Usually ships in 2-12 days

0

3

Scag 484583

Valve Assembly, Oil Drain

$19.99

$

In Stock, only 1 left!

0

4

Scag 484585

O-Ring

$0.99

$

In Stock, only 4 left!

0

5

Scag 48603-12

O-Ring

$0.99

$

In Stock, Qty 8

0

6

Scag 484586

Seal

$0.99

$

Usually ships in 2-12 days

0

Scag 486579

Muffler, Briggs and Stratton 32BV

$197.99

$

Usually ships in 2-12 days

0

Muffler, Yamaha

Note: Not available through Scag.

$

$

Not available

8

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 8

0

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV

$0.99

$

In Stock, Qty 20+

0

Scag 04134-03

Nut, Flanged Top Lock 3/8-16

$0.99

$

Usually ships in 2-12 days

0

10

Scag 484617

Bushing, Thick Panel Snap

$2.99

$

Usually ships in 2-12 days

0

11

Scag 426040

Bracket, Oil Drain Hose

$

$

Not available

12

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 6

0

13

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

14

Scag 427032

Plate, Skid

$83.99

$

Usually ships in 2-12 days

0

15

Scag 425725

Bumper, Rear

$

$

Not available

16

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

17

Scag 425926

Guard, Engine

$

$

Not available

Scag 04031-03

Lockwasher, 5/16" Ext. Tooth (Kohler x1)

Note: Not Shown

$0.99

$

Usually ships in 2-12 days

0
