STCII-61V-29CV-EFI - Scag Tiger Cat II 61" Zero-Turn Mower, 29hp Kohler (SN: M5000001 - M5099999) Sheet Metal Components Parts Diagram

Tiger Cat II 61" Zero-Turn Mower, 29hp Kohler

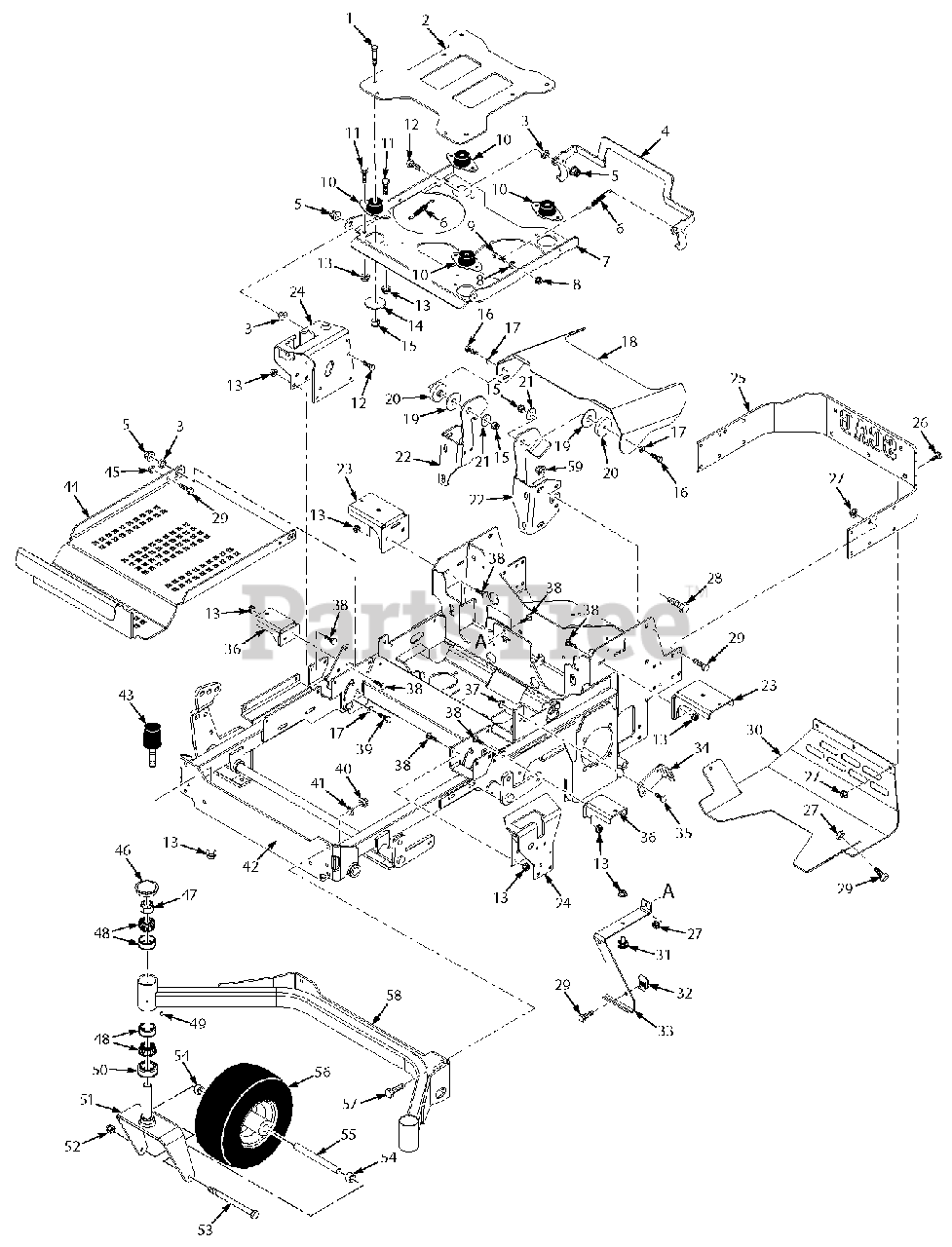

Sheet Metal Components Parts Diagram

  • Title

1

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

2

Scag 462863

Seat Plate w/decal

$116.99

$

Usually ships in 2-12 days

0

3

Scag 43086

Bushing

$6.49

$

In Stock, only 1 left!

0

4

Scag 426949

Seat Latch

$35.99

$

Usually ships in 2-12 days

0

5

Scag 04117-02

Nut, Elastic Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

6

Scag 484498

Spring, Seat Latch

$6.99

$

Usually ships in 2-12 days

0

7

Scag 462864

Plate, Seat Mounting w/decals

$132.99

$

Usually ships in 2-12 days

0

8

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

9

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 6

0

10

Scag 484148

Isolator, Seat

$37.99

$

In Stock, only 2 left!

0

11

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

12

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

13

Scag 04019-03

Nut, Hex Serr. Flng 5/16-18

$0.99

$

In Stock, Qty 20+

0

14

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25 x .1875

$3.49

$

In Stock, Qty 9

0

15

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

16

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

17

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

18

Scag 462838

Hood Assembly

$211.99

$

Usually ships in 2-12 days

0

19

Scag 483471

Disk, Anti-Friction

$7.99

$

Usually ships in 2-12 days

0

20

Scag 43740

Spacer, Hood

$29.99

$

Usually ships in 2-12 days

0

21

Scag 04041-11

Flatwasher, 3/8-.406 x 1.50 x 7 Ga.

$1.99

$

In Stock, Qty 5

0

22

Scag 427029

ROPS Mount, RH

$44.99

$

Usually ships in 2-12 days

0

22

Scag 427178

ROPS Mount, RH, 29CV-EFI
(Superseded to 428575)

$49.99

$

Usually ships in 2-12 days

0

22

Scag 427028

ROPS Mount, LH

$44.99

$

Usually ships in 2-12 days

0

22

Scag 427177

ROPS Mount, LH, 29CV-EFI

$46.99

$

Usually ships in 2-12 days

0

23

Scag 427063

Mounting Bracket, Fuel Tank Rear

$32.99

$

Usually ships in 2-12 days

0

24

Scag 462922

Control Plate w/decal

Note: (Includes RH & LH)

$157.99

$

Usually ships in 2-12 days

0

25

Scag 425725

Bumper, Rear

$137.99

$

Usually ships in 2-12 days

0

26

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

27

Scag 04019-04

Nut, 3/8-16 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

28

Scag 04001-70

Bolt, Hex Head 1/2-13 x 1-1/4"

$1.49

$

In Stock, Qty 5

0

29

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

30

Scag 427032

Plate, Skid

$85.99

$

Usually ships in 2-12 days

0

31

Scag 481284

Bumper, Rubber

$16.99

$

In Stock, only 3 left!

0

32

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

33

Scag 426978

Battery Hold Down

$25.99

$

Usually ships in 2-12 days

0

34

Scag 425905

Mounting Bracket, Neutral Switch

$11.99

$

Usually ships in 2-12 days

0

35

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

36

Scag 425862

Mounting Bracket, Fuel Tank Front

$30.99

$

Usually ships in 2-12 days

0

37

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

38

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

39

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

40

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 10

0

41

Scag 04030-05

Lockwasher, 7/16" Spring

$0.99

$

In Stock, Qty 7

0

42

Scag 462920

Main Frame Assembly w/decals (48"/52")

$1858.99

$

Usually ships in 2-12 days

0

Scag 462921

Main Frame Assembly w/decals (61")

$2008.99

$

Usually ships in 2-12 days

0

43

Scag 485663

Rubber Isolator

$4.99

$

In Stock, only 4 left!

0

44

Scag 426931

Footplate

$221.99

$

Usually ships in 2-12 days

0

45

Scag 04020-12

Nut, Jam 3/8-16

$0.99

$

In Stock, only 3 left!

0

46

Scag 484195

Cap, Grease

$2.99

$

In Stock, Qty 20+

0

47

Scag 04021-20

Nut, Elastic Stop 1.0"-14

$4.99

$

In Stock, Qty 20+

0

48

Scag 481657

Bearing Set
(Superseded to 48668)

$24.99

$

In Stock, Qty 20+

0

49

Scag 482028-01

Plug, 1/4-28

$6.49

$

In Stock, only 3 left!

0

50

Scag 481025

Seal, 2.0" OD x 1.625" ID

$4.99

$

In Stock, Qty 20+

0

51

Scag 451471

Yoke, Front Caster Wheel (48"/52")

$147.99

$

In Stock, only 1 left!

0

Scag 451658

Yoke, Front Caster Wheel (61")

$114.99

$

In Stock, only 1 left!

0

52

Scag 04021-07

Nut, Hex Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

53

Scag 04001-134

Bolt, Hex Head 1/2-13 x 7-1/2" (48"/52")

$5.49

$

In Stock, Qty 20+

0

Scag 04001-167

Bolt, Hex Head 1/2-13 x 9-1/2" (61")

$7.49

$

In Stock, Qty 20+

0

54

Scag 43584

Spacer, Caster Wheel

$2.99

$

In Stock, Qty 20+

0

55

Scag 43581

Sleeve (48"/52")

$9.99

$

In Stock, Qty 20+

0

Scag 43583

Sleeve (61")

$14.99

$

In Stock, Qty 20+

0

56

Scag 482503

Caster Wheel Assembly (48"/52")

$211.99

$

In Stock, only 1 left!

0

Scag 482504

Caster Wheel Assembly (61")

$243.99

$

In Stock, only 3 left!

0

57

Scag 04001-28

Bolt, Hex Head 7/16-14 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

58

Scag 452284

Caster Support Weldment (48"/52")

$370.99

$

Usually ships in 2-12 days

0

Scag 452727

Caster Support Weldment (61")

$457.99

$

Usually ships in 2-12 days

0

59

Scag 04117-04
