STCII-61V-29CV-EFI - Scag Tiger Cat II 61" Zero-Turn Mower, 29hp Kohler (SN: M5000001 - M5099999) Electrical System - Kohler EFI Parts Diagram

Tiger Cat II 61" Zero-Turn Mower, 29hp Kohler

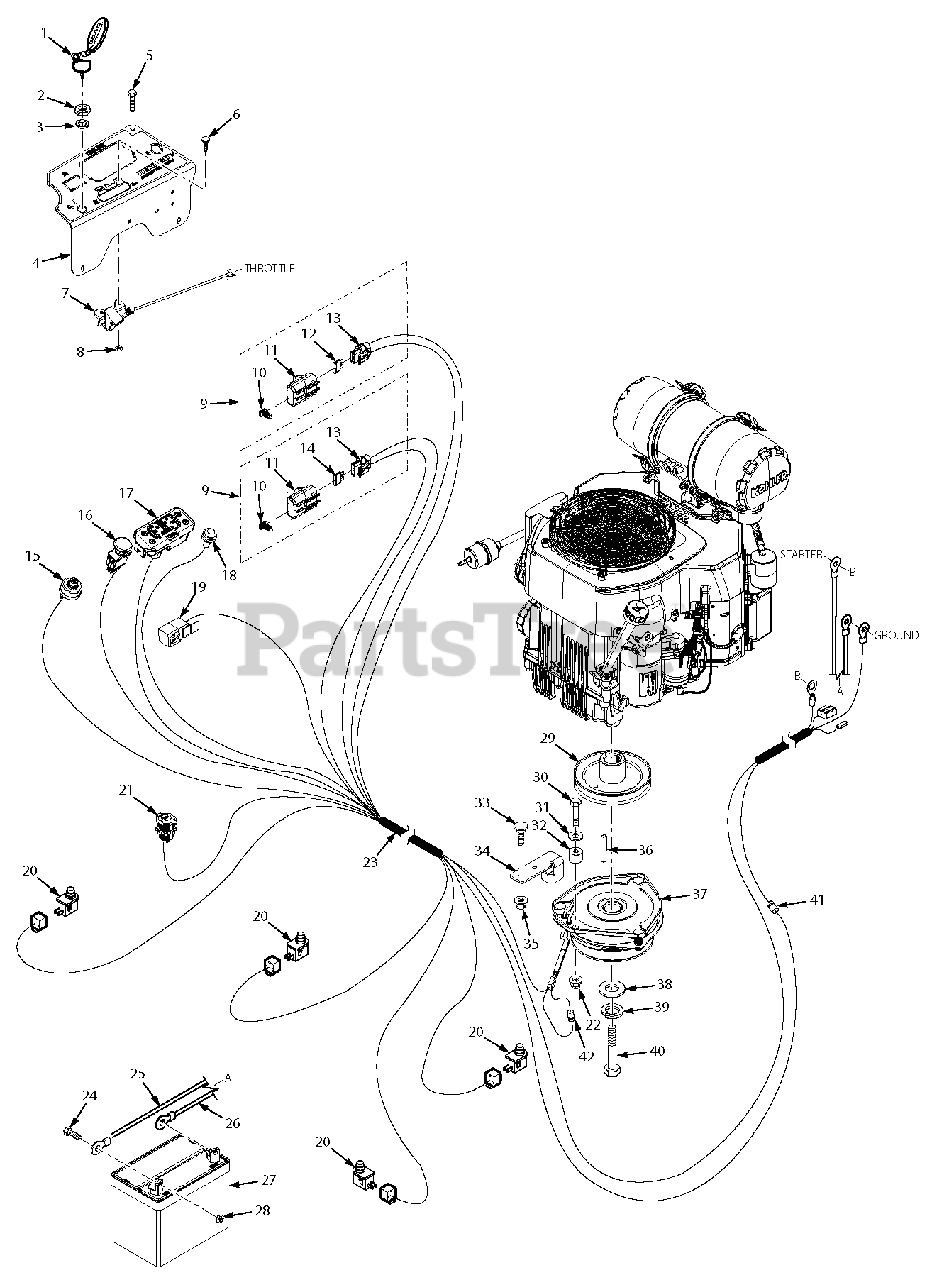

Electrical System - Kohler EFI Parts Diagram

  • Title

1

Scag 483366

Key, Ignition
(Superseded to 462069)

$8.49

$

In Stock, Qty 20+

0

2

Scag 48017-04

Nut, Hex 5/8-32

$1.49

$

In Stock, Qty 5

0

3

Scag 48017-03

Lockwasher, 5/8" Internal

$0.99

$

In Stock, Qty 6

0

4

Scag 462862

Instrument Panel w/Decal

$95.99

$

Usually ships in 2-12 days

0

5

Scag 04017-04

Bolt, Hex Head Serrated Flange 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 20+

0

6

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 10

0

7

Scag 485628

Throttle Control Cable

$25.99

$

In Stock, Qty 14

0

8

Scag 04021-26

Locknut, #10-24

$0.99

$

In Stock, Qty 11

0

9

Scag 485739

Single Fuse Assy.

Note: (incl. #10, 11, 13)

$33.99

$

Usually ships in 2-12 days

0

10

Scag 482588

Clip, Wire

$1.99

$

Usually ships in 2-12 days

0

11

Scag 483643

Cover, Sealed Single

$4.49

$

In Stock, only 2 left!

0

12

Scag 485674

Fuse, 5 Amp

$7.99

$

Usually ships in 2-12 days

0

13

Scag 483629

Fuse Holder

$7.49

$

In Stock, Qty 7

0

14

Scag 48298

Fuse, 20 Amp

$3.99

$

Usually ships in 2-12 days

0

15

Scag 48798

Switch, Starter

$27.99

$

In Stock, Qty 20+

0

16

Scag 483957

Switch, PTO
(Superseded to 463034)

$37.99

$

In Stock, Qty 20+

0

17

Scag 484721

Cluster Gauge

$374.99

$

In Stock, only 1 left!

0

18

Scag 481182

Indicator Light

$47.99

$

Usually ships in 2-12 days

0

19

Scag 483013

Relay

$20.99

$

In Stock, Qty 20+

0

20

Scag 481638

Switch

$15.99

$

In Stock, Qty 20+

0

21

Scag 485568

Power Plug

$30.99

$

Usually ships in 2-12 days

0

22

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

23

Scag 485641

Wire Harness, STCII-CV-EFI

$477.99

$

Usually ships in 2-12 days

0

24

Scag 04001-44

Bolt, Hex Head 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 6

0

25

Scag 48029-28

Battery Cable, 25" Red

$22.99

$

Usually ships in 2-12 days

0

26

Scag 48029-11

Battery Cable, 27" Black

$14.99

$

In Stock, only 1 left!

0

27

Battery, 350 CCA

Note: Not available through Scag.

$

$

Not available

28

Scag 04020-02

Nut, 1/4-20 UNC

$0.99

$

In Stock, Qty 10

0

29

Scag 485589

Pulley, 5.75" Dia. - 1.125 Bore

$45.99

$

In Stock, only 1 left!

0

30

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 6

0

31

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

32

Scag 431009

Bushing, UHMW

$6.49

$

Usually ships in 2-12 days

0

33

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

34

Scag 427111

Anti-Rotation Bracket
(Superseded to 427330)

$22.99

$

Usually ships in 2-12 days

0

35

Scag 04117-01

Nut, Flange Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

36

Scag 04063-28

Key, 1/4 x 1/4 x 3-1/2"

$1.49

$

In Stock, Qty 5

0

37

Scag 462339

Clutch, GT3.5 - 1.125 Bore

$457.99

$

In Stock, only 1 left!

0

38

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25

$2.99

$

In Stock, Qty 12

0

39

Scag 04030-05

Lockwasher, 7/16" Spring

$0.99

$

In Stock, Qty 5

0

40

Scag 04102-03

Bolt, Hex Head 7/16-20 x 2-1/4" w/Patch

$1.99

$

In Stock, Qty 12

0

41

Scag 482253

Diode

$7.99

$

Usually ships in 2-12 days

0

42

Scag 483958

Diode, 600V - 6A

$2.49

$

In Stock, only 4 left!

0
