STCII-61V-27FX - Scag Tiger Cat II 61" Zero-Turn Mower, 27hp Kawasaki (SN: R9800001 - R9899999) (Rev 01) STCII FOLDABLE ROLL-OVER PROTECTION SYSTEM Parts Diagram

Tiger Cat II 61" Zero-Turn Mower, 27hp Kawasaki

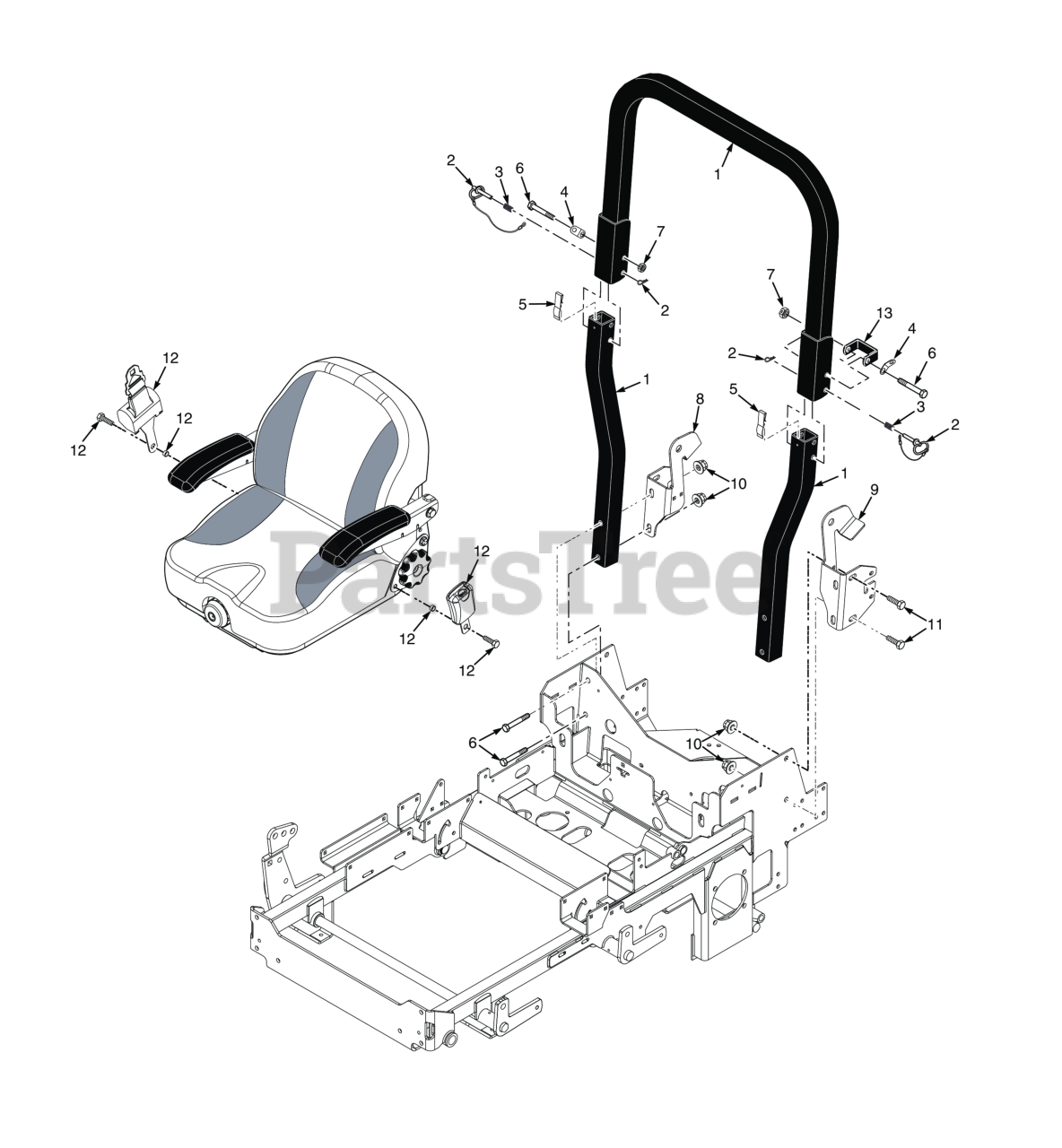

STCII FOLDABLE ROLL-OVER PROTECTION SYSTEM Parts Diagram

  • Title

1

Scag 462414

ROPS Assembly, Foldable
(Superseded to 462935)

$665.99

$

Usually ships in 2-12 days

0

1

Scag 462935

ROPS ASSY, FOLDABLE

$665.99

$

Usually ships in 2-12 days

0

2

Scag 484168

Pin Assembly, ROPS Hinge

$27.99

$

In Stock, Qty 9

0

3

Scag 484170

Spring, ROPS

$1.49

$

Usually ships in 2-12 days

0

4

Scag 484169

Clip, ROPS

$3.49

$

Usually ships in 2-12 days

0

5

Scag 484167

Spring, ROPS Anti-Rattle

$4.49

$

Usually ships in 2-12 days

0

6

Scag 04001-90

Bolt, Hex Head, 1/2-13 x 3-1/4"

$2.99

$

Usually ships in 2-12 days

0

7

Scag 04021-19

Locknut, Hex 1/2-13 Center Lock

$0.99

$

In Stock, Qty 5

0

8

Scag 428575

ROPS Mount, RH

$

$

Not available

9

Scag 428574

ROPS Mount, LH

$

$

Not available

10

Scag 04117-04

Nut, Elastic Stop 1/2-13, (STT-52 & STTII-52)

$1.49

$

In Stock, only 2 left!

0

11

Scag 04001-70

Bolt, Hex Head 1/2-13 x 1-1/4"

$1.49

$

In Stock, Qty 5

0

12

Scag 484717

Seat Belt Kit (Suspension Seat)

$167.99

$

Usually ships in 2-12 days

0

12

Scag 484527

Seat Belt Kit (Soft Ride Seat)

$118.99

$

Usually ships in 2-12 days

0
