STCII-61V-27FX - Scag Tiger Cat II 61" Zero-Turn Mower, 27hp Kawasaki (SN: R9800001 - R9899999) (Rev 01) DRIVE SYSTEM COMPONENTS Parts Diagram

Tiger Cat II 61" Zero-Turn Mower, 27hp Kawasaki

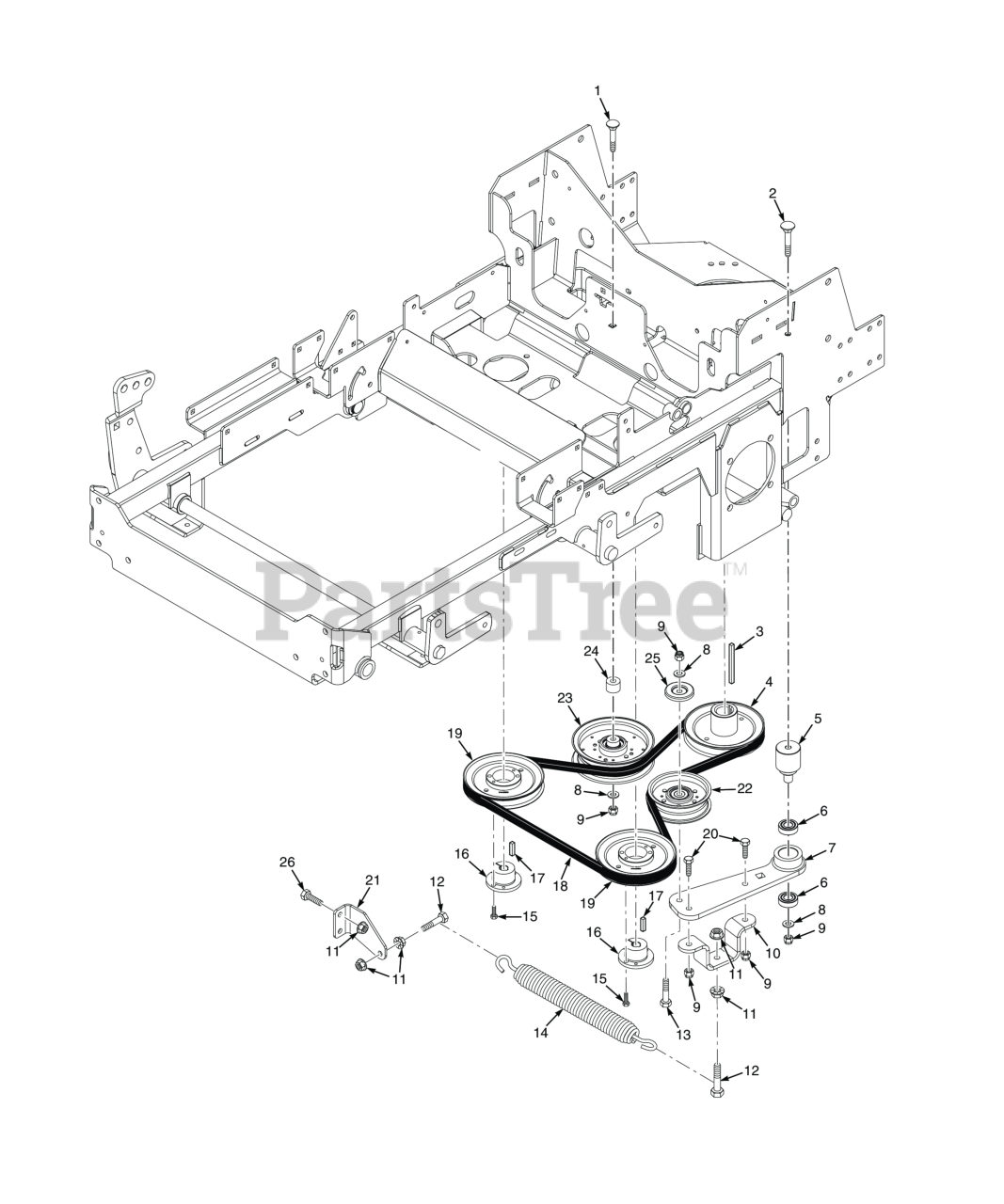

DRIVE SYSTEM COMPONENTS Parts Diagram

  • Title

1

Scag 04003-47

Bolt, Carriage 3/8-16 x 3-1/4"

$5.99

$

Usually ships in 2-12 days

0

2

Scag 04003-26

Bolt, Hex Head 3/8-16 x 3-1/2"

$1.99

$

In Stock, Qty 20+

0

3

Scag 04063-28

Key, 1/4 x 1/4 x 3-1/2"

$1.49

$

In Stock, Qty 5

0

4

Scag 485589

Pulley, 5.75" Dia. - 1.125 Bore

$45.99

$

In Stock, only 1 left!

0

5

Scag 431025

Pivot, Idler Arm

$22.99

$

In Stock, only 2 left!

0

6

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$12.99

$

In Stock, Qty 20+

0

7

Scag 462860

Idler Arm Assembly

Note: (incl. #6)

$69.99

$

Usually ships in 2-12 days

0

8

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

9

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

10

Scag 425386

Mounting Bracket, Idler

$18.99

$

In Stock, only 1 left!

0

11

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

12

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

13

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

0

14

Scag 484202

Spring, Pump Drive

$101.99

$

In Stock, Qty 5

0

15

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

16

Scag 482085

Hub, Tapered, 15mm Bore

$27.99

$

Usually ships in 2-12 days

0

17

Scag 04063-14

KEY, 5 MM X 5 MM X 25 MM

$0.99

$

In Stock, Qty 5

0

18

Scag 485649

Belt, Pump Drive (61")

$47.99

$

In Stock, Qty 20+

0

19

Scag 482744

Pulley, 5.75 O.D. (Gasoline Engines)

$30.99

$

Usually ships in 2-12 days

0

20

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 12

0

21

Scag 427016

Bracket, Spring Anchor

$12.99

$

Usually ships in 2-12 days

0

22

Scag 484128

Pulley, 4" Dia. Idler

$22.99

$

In Stock, only 1 left!

0

23

Scag 483215

Idler Pulley, Belt Clutch

$60.99

$

In Stock, Qty 20+

0

24

Scag 43286

Spacer, Idler

$2.49

$

In Stock, only 2 left!

0

25

Scag 424367

Quick Pin, 5/16" Dia.

$2.49

$

In Stock, only 2 left!

0

26

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0
