STCII-61V-26CV-EFI - Scag Tiger Cat II 61" Zero-Turn Mower, 26hp Kohler (SN: V5200001 - V5299999) ENGINE & ATTACHING PARTS Parts Diagram

Tiger Cat II 61" Zero-Turn Mower, 26hp Kohler

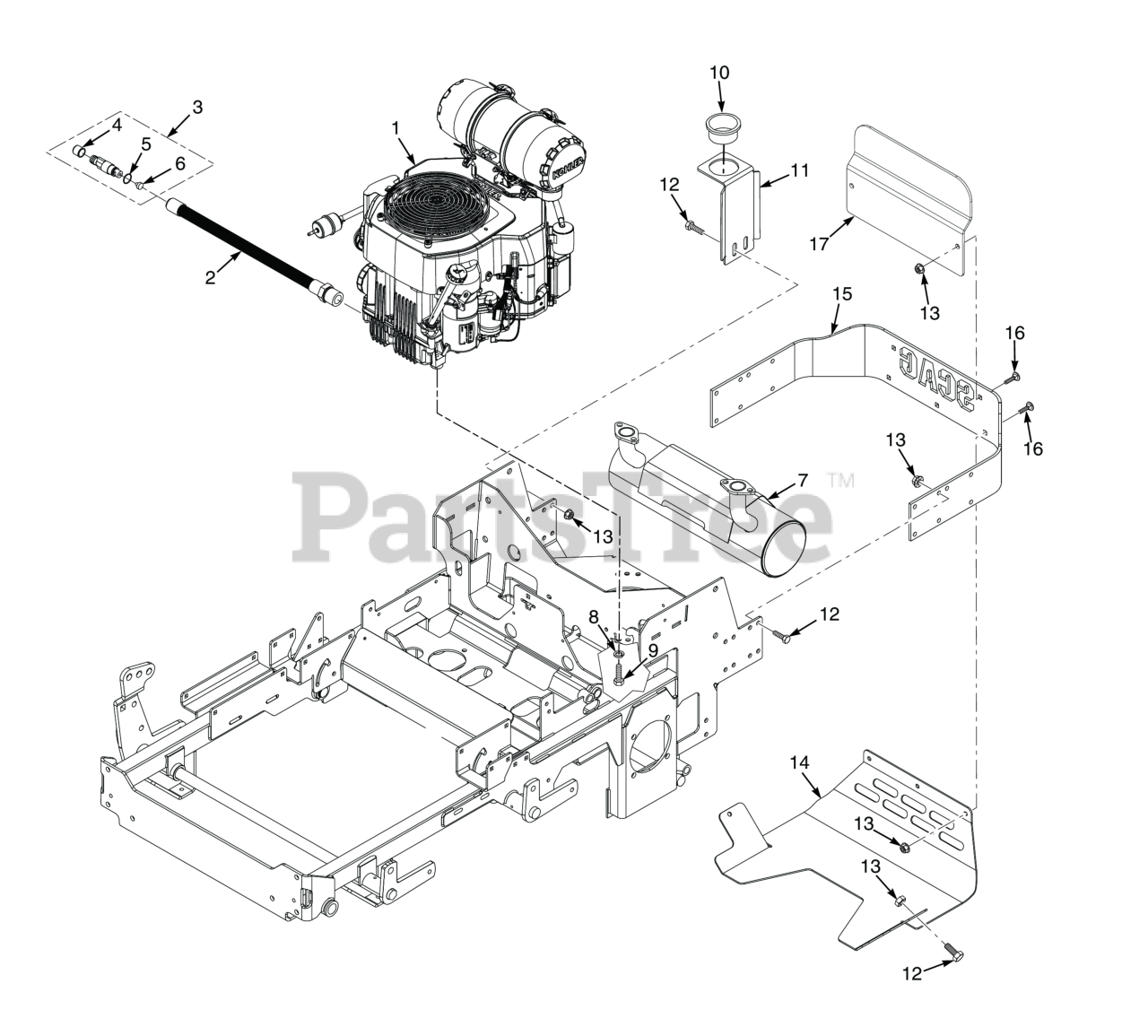

ENGINE & ATTACHING PARTS Parts Diagram

  • Title

1

Scag 485729

Engine, Kohler 26CV-EFI

Note: Not available through Scag.

$

$

Currently unavailable

2

Scag 484706

Hose, Oil Drain - Kohler CV & CV-EFI

$41.99

$

Usually ships in 2-12 days

0

3

Scag 484583

Valve Assembly, Oil Drain

$19.99

$

In Stock, only 1 left!

0

4

Scag 484585

O-Ring

$0.99

$

In Stock, only 4 left!

0

5

Scag 48603-12

O-Ring

$0.99

$

In Stock, Qty 8

0

6

Scag 484586

Seal

$0.99

$

Usually ships in 2-12 days

0

7

Scag 484650

Muffler, Kohler 25CV-EFI & 26CV-EFI

$209.99

$

Usually ships in 2-12 days

0

8

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 8

0

9

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI

$0.99

$

In Stock, Qty 14

0

10

Scag 484617

Bushing, Thick Panel Snap

$3.49

$

Usually ships in 2-12 days

0

11

Scag 426040

Bracket, Oil Drain Hose

$26.99

$

Usually ships in 2-12 days

0

12

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 7

0

13

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

14

Scag 427032

Plate, Skid

$85.99

$

Usually ships in 2-12 days

0

15

Scag 425725

Bumper, Rear

$137.99

$

Usually ships in 2-12 days

0

16

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

17

Scag 425926

Guard, Engine

$39.99

$

Usually ships in 2-12 days

0

Scag 04002-06

Bolt, Hex Head M8 - 1.25 x 16 (48V / 52V)

Note: Not Shown

$0.99

$

In Stock, only 1 left!

0

Scag 04031-03

Lockwasher, 5/16" Ext. Tooth (Kohler x1)

Note: Not Shown

$0.99

$

Usually ships in 2-12 days

0

Scag 04017-05

Bolt, Serrated Flange Hex Head 1/4 x 20 x 3/4"

Note: Not Shown

$0.99

$

In Stock, Qty 20+

0
