STCII-52V-29MX-EFI - Scag Tiger Cat II 52" Zero-Turn Mower, 29hp Yamaha MX (SN: T3900001 - T3999999) SHEET METAL COMPONENTS Parts Diagram

Tiger Cat II 52" Zero-Turn Mower, 29hp Yamaha MX

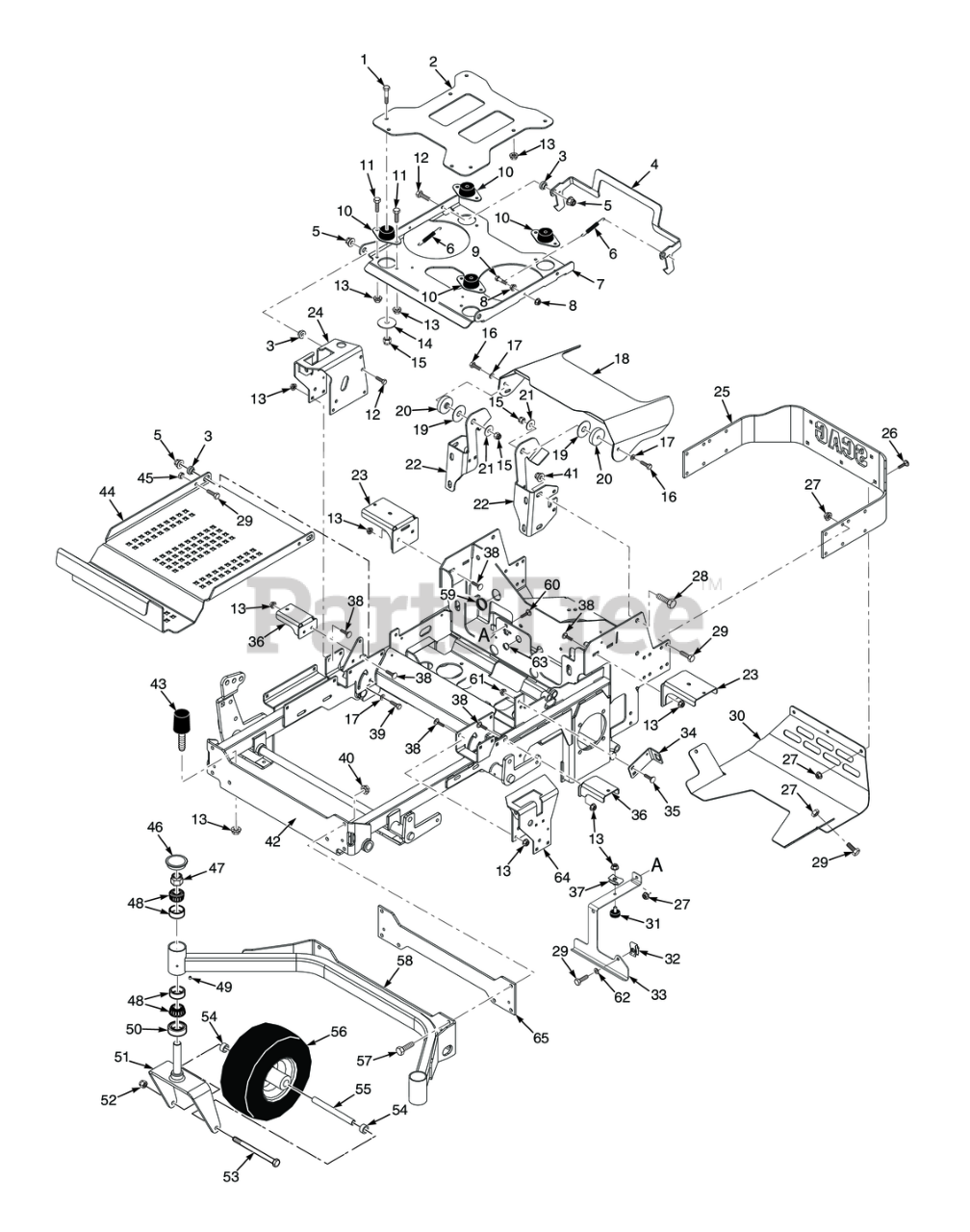

SHEET METAL COMPONENTS Parts Diagram

  • Title

1

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

0

2

Scag 462863

Seat Plate w/decal

$116.99

$

Usually ships in 2-12 days

0

3

Scag 43086

BUSHING, SPEED ADJUSTMENT LEVER

$6.49

$

In Stock, only 1 left!

0

4

Scag 426949

Seat Latch

$35.99

$

Usually ships in 2-12 days

0

5

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

6

Scag 484498

Spring, Seat Latch

$6.99

$

Usually ships in 2-12 days

0

7

Scag 463106

Plate, Seat Mounting w/decals

$145.99

$

Usually ships in 2-12 days

0

8

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

9

Scag 04001-59

SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 5

0

10

Scag 484148

Isolator, Seat

$37.99

$

In Stock, only 2 left!

0

11

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

12

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 12

0

13

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

14

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25" x .1875

$3.49

$

In Stock, Qty 9

0

15

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

16

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI)

$0.99

$

In Stock, Qty 20+

0

17

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

18

Scag 462838

Hood Assembly

$211.99

$

Usually ships in 2-12 days

0

19

Scag 483471

Disc, Anti-Friction

$7.99

$

Usually ships in 2-12 days

0

20

Scag 43740

Spacer, Hood

$29.99

$

Usually ships in 2-12 days

0

21

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, Qty 5

0

22

Scag 427029

ROPS Mount, RH

$44.99

$

Usually ships in 2-12 days

0

22

Scag 427028

ROPS Mount, LH

$44.99

$

Usually ships in 2-12 days

0

23

Scag 427063

Mounting Bracket, Fuel Tank Rear

$32.99

$

Usually ships in 2-12 days

0

24

Scag 463326

Control Plate w/decal, RH

$85.99

$

Usually ships in 2-12 days

0

25

Scag 425725

Bumper, Rear

$137.99

$

Usually ships in 2-12 days

0

26

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

27

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

28

Scag 04001-70

Bolt, Hex Head 1/2-13 x 1-1/4"

$1.49

$

In Stock, Qty 5

0

29

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 7

0

30

Scag 427032

Plate, Skid

$85.99

$

Usually ships in 2-12 days

0

31

Scag 481284

Bumper, Rubber 5/16-18 x 5/8"

$16.99

$

In Stock, only 3 left!

0

32

Scag 04110-03

U-Nut, 3/8-16 (short)

$2.49

$

In Stock, Qty 20+

0

33

Scag 427334

BATTERY HOLD DOWN

$38.99

$

Usually ships in 2-12 days

0

34

Scag 425905

Bracket, Operator Presence Switch

$11.99

$

Usually ships in 2-12 days

0

35

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

36

Scag 425862

Mounting Bracket, Fuel Tank Front

$30.99

$

Usually ships in 2-12 days

0

37

Scag 48030-18

Cable Clamp, Double

$

$

Not available

38

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

39

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

40

Scag 04117-05

Nut, 7/16-14 Flange Elastic Stop

$0.99

$

Usually ships in 2-12 days

0

41

Scag 04117-04

Nut, Elastic Stop 1/2-13, (STT-52 & STTII-52)

$1.49

$

In Stock, Qty 8

0

42

Scag 462921

Main Frame Assembly w/decals (61")

$2008.99

$

Usually ships in 2-12 days

0

43

Scag 485663

Rubber Isolator

$4.99

$

In Stock, only 4 left!

0

44

Scag 426931

Footplate

$221.99

$

Usually ships in 2-12 days

0

45

Scag 04020-12

HEX NUT, JAM 3/8-16

$0.99

$

In Stock, only 3 left!

0

46

Scag 484195

Cap, Grease

$2.99

$

In Stock, Qty 20+

0

47

Scag 04021-20

Nut, Hex Elastic Stop 1.0"-14

$4.99

$

In Stock, Qty 20+

0

48

Scag 48668

BEARING & CUP, TAPERED SPINDLE

$24.99

$

In Stock, Qty 20+

0

49

Scag 482028-01

Plug, 1/4-28 THD Form

$6.49

$

In Stock, only 3 left!

0

50

Scag 481025

Seal, 2.00" O.D. x 1.625" Bore

$4.99

$

In Stock, Qty 20+

0

51

Scag 453007

Yoke Weldment, (Black))

$99.99

$

In Stock, only 2 left!

0

52

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

53

Scag 04001-167

Bolt, Hex Head 1/2-13 x 9-1/2" (61V & 72A/VS)

$7.49

$

In Stock, Qty 20+

0

54

Scag 43584

Spacer, Caster Wheel

$2.99

$

In Stock, Qty 20+

0

55

Scag 43583

Sleeve, Caster Wheel (61V, 72A/VS)

$14.99

$

In Stock, Qty 20+

0

56

Scag 9278

Wheel Assy, 61V, 72V (Incl. 20, 54, 55)

$191.99

$

In Stock, Qty 20+

0

57

Scag 04001-28

BOLT, HEX HEAD, 7/16-14 X 1-1/4

$0.99

$

In Stock, Qty 12

0

57

Scag 04001-58

HEX HEAD BOLT 7/16-14 X 1-1/2"

$0.99

$

Usually ships in 2-12 days

0

58

Scag 452284

Caster Support Weldment (48"/52")

$370.99

$

Usually ships in 2-12 days

0

59

Scag 484617

Bushing, Thick Panel Snap

$3.49

$

Usually ships in 2-12 days

0

60

Scag 04003-31

Bolt, Carriage 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

61

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 9

0

62

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 8

0

63

Scag 486019

Bushing, Thick Panel Snap - 1"

$1.99

$

Usually ships in 2-12 days

0

64

Scag 463325

Control Plate w/decal, LH

$92.99

$

Usually ships in 2-12 days

0

65

Scag 428824

Weight, Caster - Yamaha Models Only

$

$

Currently unavailable
