STCII-52V-25CV-EFI - Scag Tiger Cat II 52" Zero-Turn Mower, 25hp Kohler (SN: V4900001 - V4999999) BRAKE COMPONENTS Parts Diagram

Tiger Cat II 52" Zero-Turn Mower, 25hp Kohler

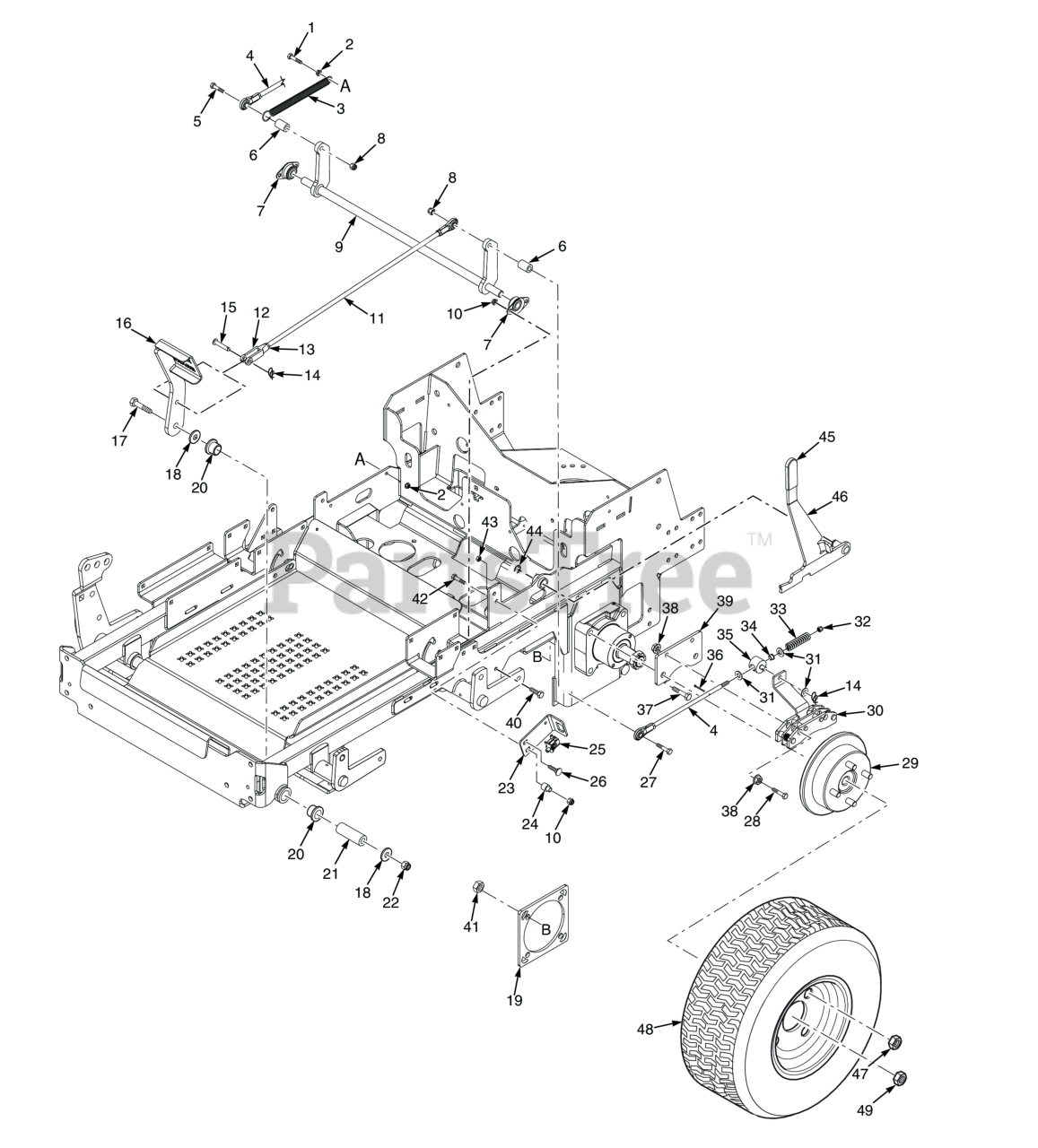

BRAKE COMPONENTS Parts Diagram

  • Title

1

Scag 04001-59

SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 5

0

2

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

3

Scag 485831

Spring, Brake Return

$5.99

$

Usually ships in 2-12 days

0

4

Scag 462465

Brake Link Assembly

Note: (incl. #31, 32, 33, 34, 35, 36)

$68.99

$

In Stock, only 1 left!

0

5

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3" - 52"

$0.99

$

In Stock, Qty 9

0

6

Scag 43805

Spacer

$10.99

$

Usually ships in 2-12 days

0

7

Scag 48796

Bearing, Self Aligning - 5/8 I.D.

$12.99

$

Usually ships in 2-12 days

0

8

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Scag 452342

Brake Bellcrank Weldment

$76.99

$

Usually ships in 2-12 days

0

10

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

11

Scag 485740

Brake Rod Assembly

Note: (INCL. #12,13)

$28.99

$

Usually ships in 2-12 days

0

Scag 48544

Rod End, 3/8-24 LH Thread Female

$26.99

$

Usually ships in 2-12 days

0

Scag 04020-26

Nut, 3/8-24 UNF-2B LH Thread

$1.99

$

In Stock, only 4 left!

0

12

Scag 48343-04

Clevis, Traction Control

$16.99

$

In Stock, only 2 left!

0

13

Scag 04020-25

Nut, 3/8-24 UNF R.H. Thread

$0.99

$

In Stock, only 2 left!

0

14

Scag 04069-01

Pin, Rue Cotter 3/8" Diameter

$1.49

$

In Stock, only 4 left!

0

15

Scag 04064-02

Pin, Clevis 3/8-16 x 1-1/16"

$1.49

$

In Stock, only 3 left!

0

16

Scag 452327

Brake Pedal Weldment

$68.99

$

Usually ships in 2-12 days

0

17

Scag 04001-194

Bolt, Hex Head 1/2-13 x 4-1/4"

$4.99

$

In Stock, Qty 8

0

18

Scag 04040-13

Flat Washer, 1/2 (.562 x 1.375 x .109)

$0.99

$

In Stock, Qty 20+

0

19

Scag 423279

Plate Weldment, Motor Backing

$26.99

$

Usually ships in 2-12 days

0

20

Scag 483453-03

Bearing, Plastic

$7.99

$

In Stock, only 2 left!

0

21

Scag 43872

Sleeve, Brake Pivot

$21.99

$

Usually ships in 2-12 days

0

22

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

23

Scag 426992

Switch Mounting Bracket, Brake

$12.99

$

Usually ships in 2-12 days

0

24

Scag 43602

Spacer, Pump Dampener

$2.99

$

In Stock, only 2 left!

0

25

Scag 481638

Switch, Interlock, Normally Open

$15.99

$

In Stock, Qty 20+

0

26

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

27

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3" - 52"

$0.99

$

In Stock, Qty 9

0

28

Scag 04001-87

Bolt, Hex Head 1/2-13 x 4" (lower)

$2.99

$

In Stock, Qty 10

0

29

Scag 462808

Wheel Hub w/Disc

$153.99

$

In Stock, only 1 left!

0

30

Scag 485595

Brake Caliper

$91.99

$

In Stock, Qty 20+

0

31

Scag 04040-05

Flatwasher, 3/8 (.406 x .812 x .065)

$0.99

$

In Stock, only 4 left!

0

32

Scag 04021-18

Nut, Elastic Stop 3/8-16, grade 8 black

$1.49

$

In Stock, Qty 9

0

33

Scag 484535

Spring, Brake

$10.99

$

Usually ships in 2-12 days

0

34

Scag 483453-23

Bearing

$4.99

$

Usually ships in 2-12 days

0

35

Scag 462452

Swivel Assembly, Brake

$20.99

$

Usually ships in 2-12 days

0

36

Scag 04061-02

Pin, Cotter 3/32 x .75"

$0.99

$

In Stock, Qty 11

0

37

Scag 04001-190

Bolt, Hex Head 1/2-13 x 2-3/4" (48V & 52V - One Weight)

$2.49

$

In Stock, Qty 6

0

38

Scag 04019-06

Nut, Hex Serrated Flange 1/2-13

$0.99

$

In Stock, Qty 10

0

39

Scag 428482

Mounting Bracket, Brake

$

$

Not available

40

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

41

Scag 04021-19

Locknut, Hex 1/2-13 Center Lock

$0.99

$

In Stock, Qty 5

0

42

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-1/2" - Front

$0.99

$

In Stock, Qty 20+

0

43

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 9

0

44

Scag 04050-01

RETAINING RING, 5/8" EXTERNAL "E"

$0.99

$

In Stock, Qty 20+

0

45

Scag 482102

Grip, Brake Handle

$3.99

$

In Stock, only 3 left!

0

46

Scag 462820

Lever w/Grip, Parking Brake

$58.99

$

Usually ships in 2-12 days

0

47

Scag 04028-02

Wheel Nut, 1/2-20 x 13/16

$1.49

$

In Stock, Qty 20+

0

48

Scag 484105

Wheel Assy 24 x 9.5-12 (52" Deck)

$434.99

$

Usually ships in 2-12 days

0

Scag 481659

Rim W/Valve Stem (48" & 52")

$137.99

$

In Stock, only 1 left!

0

Scag 484104

Tire 24 x 9.5-12 (48" & 52" Deck)

$322.99

$

In Stock, only 1 left!

0

49

Scag 48680

Nut, Hex Castle 1.0-20 UNEF

$16.99

$

In Stock, only 3 left!

0

Scag 04061-06

Pin, Cotter 9/16" x 1-1/2"

Note: Not Shown

$0.99

$

In Stock, Qty 11

0
