STCII-52V-25CV-EFI - Scag Tiger Cat II 52" Zero-Turn Mower, 25hp Kohler (SN: R8600001 - R8699999) (Rev 01) STCII - KOHLER 25CV-EFI ELECTRICAL SCHEMATIC Parts Diagram

Tiger Cat II 52" Zero-Turn Mower, 25hp Kohler

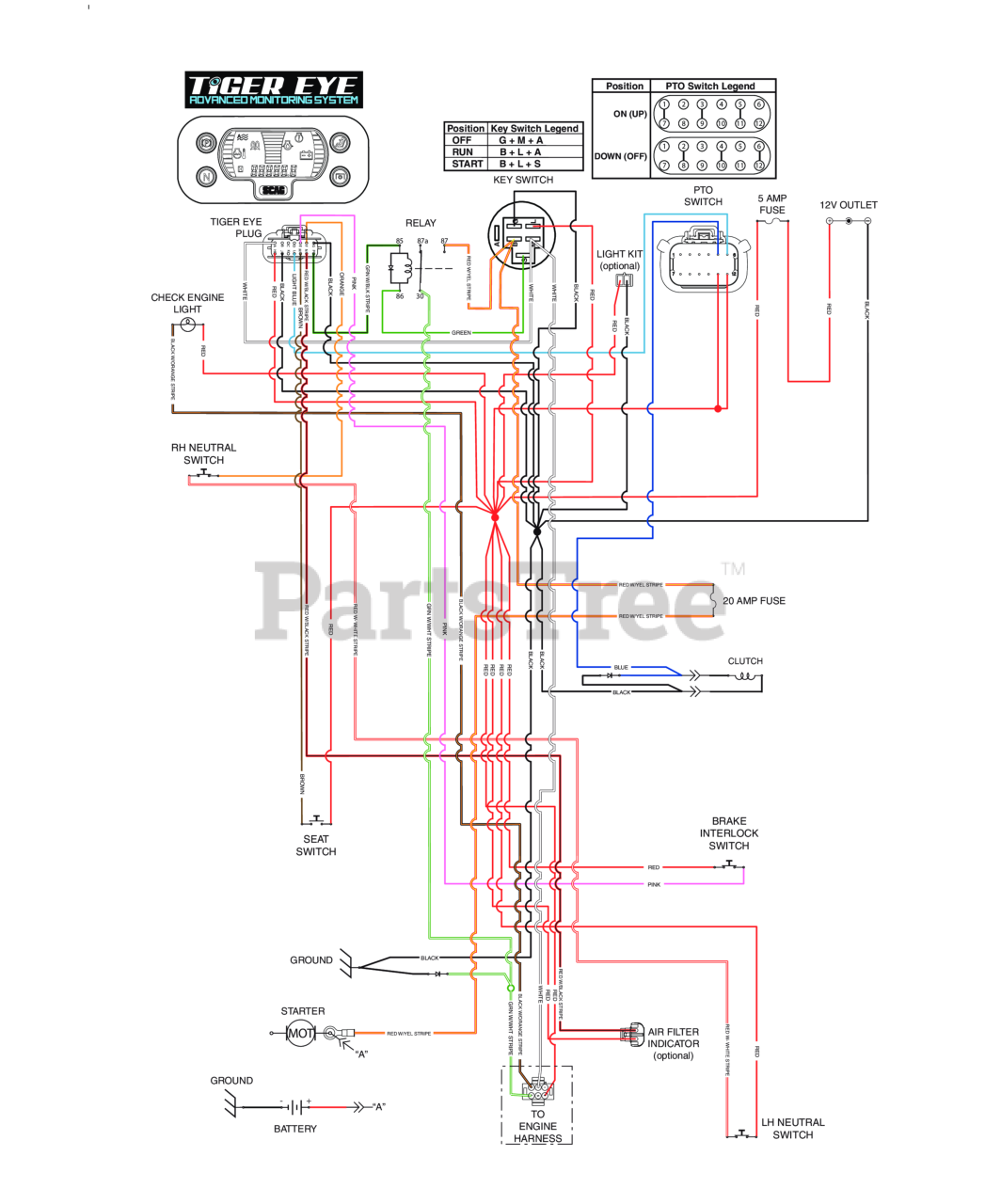

STCII - KOHLER 25CV-EFI ELECTRICAL SCHEMATIC Parts Diagram

  • Title

No Part List Information Available

$

$

Not available
