STCII-52V-25CV-EFI - Scag Tiger Cat II 52" Zero-Turn Mower, 25hp Kohler (SN: R8600001 - R8699999) (Rev 01) CUTTER DECK CONTROLS Parts Diagram

Tiger Cat II 52" Zero-Turn Mower, 25hp Kohler

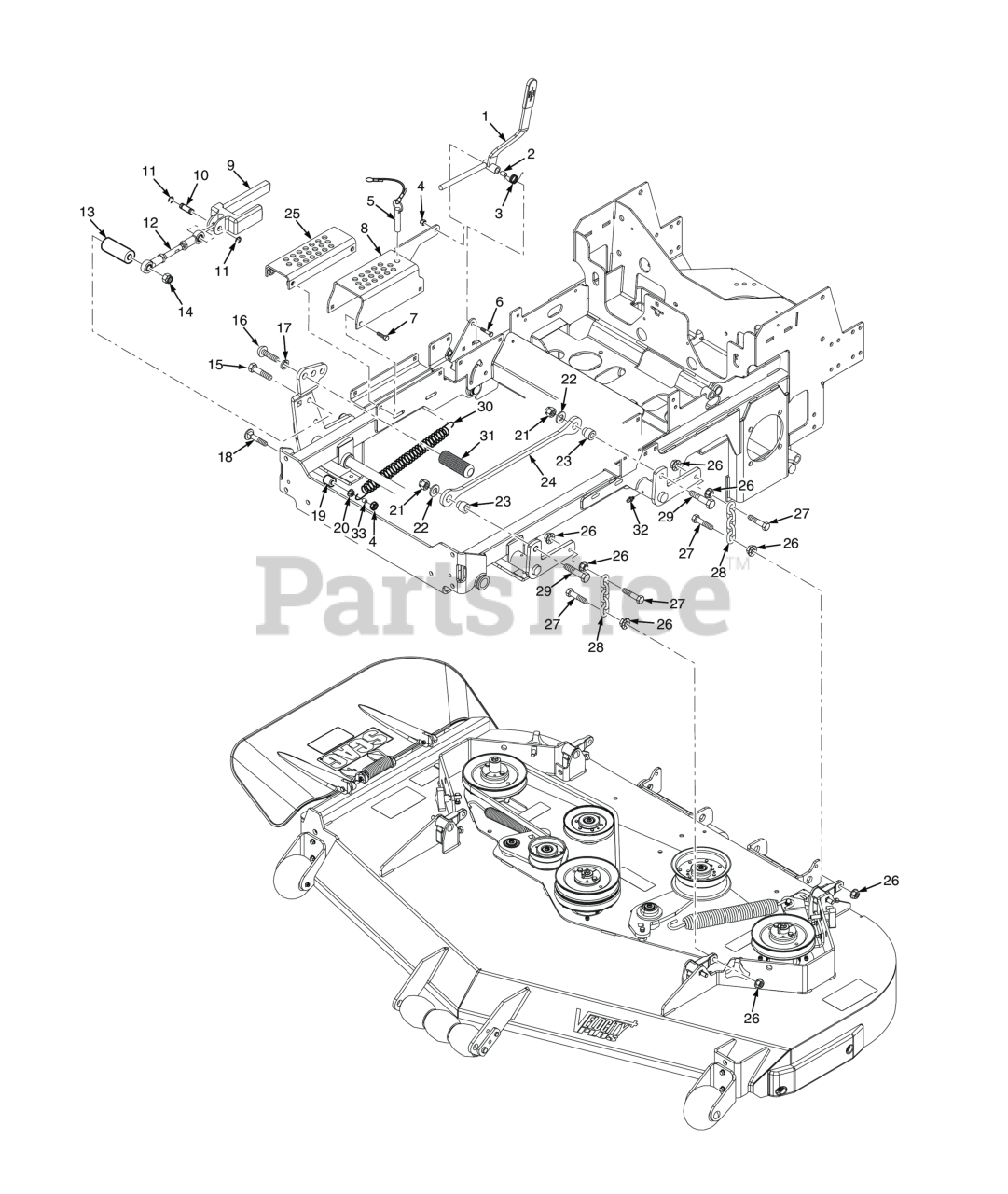

CUTTER DECK CONTROLS Parts Diagram

  • Title

1

Scag 462839

Deck Latch Assembly (Includes Grip)

Note: (Includes Grip)

$37.99

$

Usually ships in 2-12 days

0

1

Scag 485592

Grip, Deck Latch

$1.99

$

Usually ships in 2-12 days

0

2

Scag 43874

Spacer, Deck Latch

$10.99

$

Usually ships in 2-12 days

0

3

Scag 485704

Spring, Torsion - Lever Return

$3.49

$

Usually ships in 2-12 days

0

4

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

0

5

Scag 483345

Lanyard, Deck Height Pin Assembly

$11.99

$

In Stock, Qty 6

0

6

Scag 04001-31

Capscrew, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

7

Scag 04006-02

Bolt, Hex Wshr Head 5/16-18 x 1-1/4"

$1.99

$

Usually ships in 2-12 days

0

8

Scag 425737

Adjustment Bracket, Cutting Height

$

$

Not available

9

Scag 462872

Slide, Height Adjust (INCL. 10,11,12)

Note: (INCL. 10,11,12)

$103.99

$

Usually ships in 2-12 days

0

10

Scag 43487

Pin, Deck Lift

$26.99

$

In Stock, only 1 left!

0

11

Scag 04050-18

Retaining Ring, 1/2" Ext. "E"

$17.99

$

In Stock, Qty 8

0

12

Scag 482534

Linkage Assembly, Deck Lift

$83.99

$

Usually ships in 2-12 days

0

13

Scag 43873

Spacer, Deck Lift Pedal

$14.99

$

Usually ships in 2-12 days

0

14

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

15

Scag 04001-87

Bolt, Hex Head 1/2-13 x 4" (lower)

$2.99

$

In Stock, Qty 10

0

16

Scag 04108-04

Capscrew, 5/8-11 x 1-1/2"

$2.99

$

Usually ships in 2-12 days

0

17

Scag 04030-07

Lockwasher, 5/8" Spring

$0.99

$

In Stock, Qty 19

0

18

Scag 04003-21

Carriage Bolt, 3/8-16 x 2-1/2"

$2.49

$

Usually ships in 2-12 days

0

19

Scag 43572

Yoke, Front Caster Wheel

$1.99

$

In Stock, Qty 5

0

20

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

21

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

22

Scag 04040-13

Flat Washer, 1/2 (.562 x 1.375 x .109)

$0.99

$

In Stock, Qty 20+

0

23

Scag 431018

Pivot, Deck Link

$6.49

$

Usually ships in 2-12 days

0

24

Scag 428513

Link, Decklift (black)

Note: (black)

$24.99

$

Usually ships in 2-12 days

0

25

Scag 452408

Adjustment Bracket, Lower Cut Height

$65.99

$

Usually ships in 2-12 days

0

26

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

27

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

28

Scag 482628

Chain, Deck Lift

$11.99

$

In Stock, only 3 left!

0

29

Scag 04001-153

Bolt, Hex Head 1/2-13 x 2-1/4"

$2.49

$

In Stock, Qty 8

0

30

Scag 483177

Spring, Decklift

$65.99

$

Usually ships in 2-12 days

0

31

Scag 424504

Foot Pedal, Height Adjustment

$14.99

$

In Stock, only 1 left!

0

32

Scag 48114-04

GREASE FITTING, STR. 1/4-28 SELF TAP.

$0.99

$

In Stock, Qty 20+

0

33

Scag 43212

Spacer, Deck Assist

$4.49

$

In Stock, Qty 5

0

Scag 04059-01

Pin, Locking

Note: Item Not Shown

$6.49

$

Usually ships in 2-12 days

0
