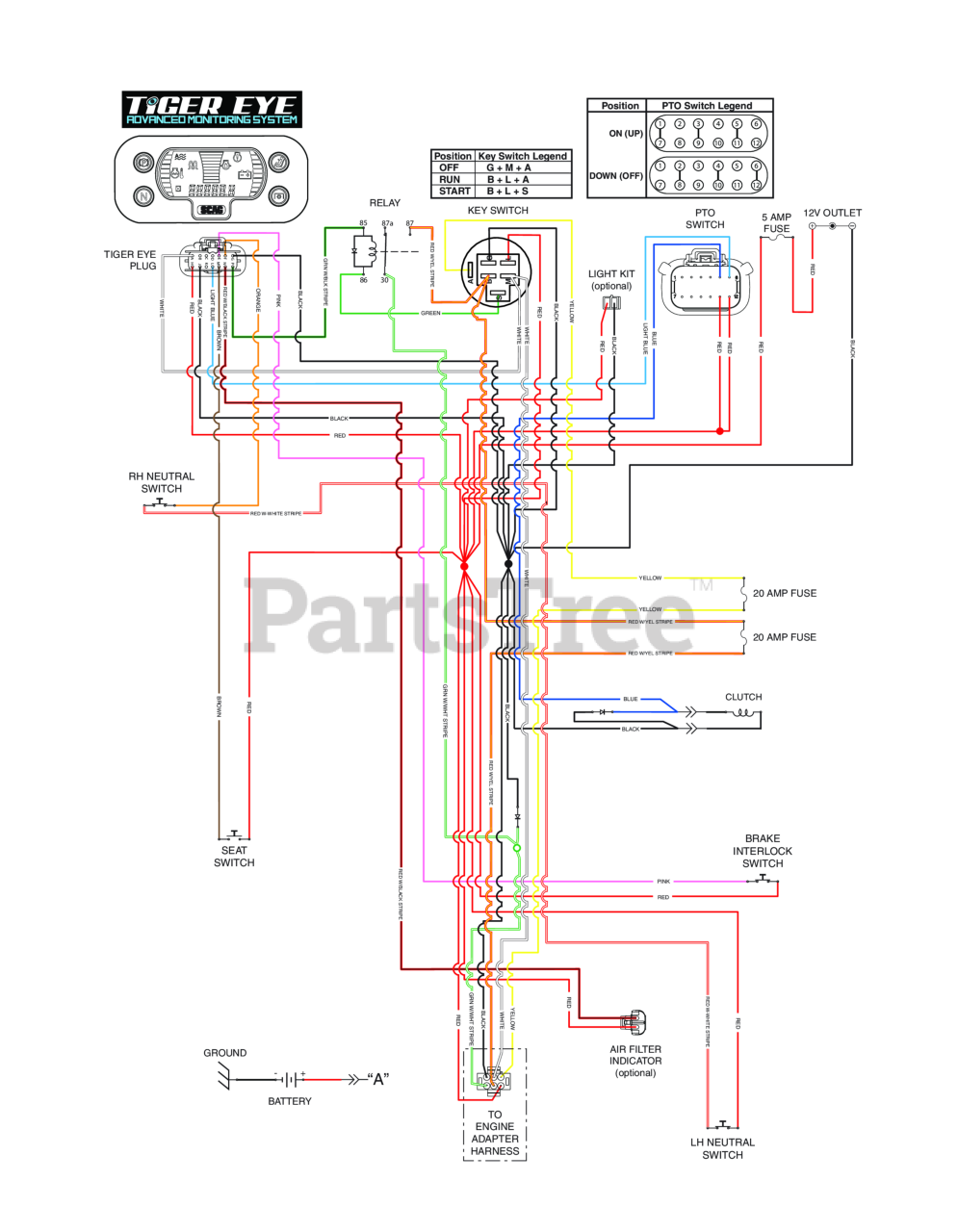

STCII-48V-26MX - Scag Tiger Cat II 48" Zero-Turn Mower, 26hp Yamaha MX (SN: T3700001 - T3799999) (Rev 01) STCII - KAWASAKI FX & FT / YAMAHA MX ELECTRICAL SCHEMATIC Parts Diagram
Tiger Cat II 48" Zero-Turn Mower, 26hp Yamaha MX
STCII - KAWASAKI FX & FT / YAMAHA MX ELECTRICAL SCHEMATIC Parts Diagram
No Part List Information Available
$
$
Not available
