STCII-48V-23CV - Scag Tiger Cat II 48" Zero-Turn Mower, 23hp Kohler (SN: V4600001 - V4699999) HYDRAULIC SYSTEM Parts Diagram

Tiger Cat II 48" Zero-Turn Mower, 23hp Kohler

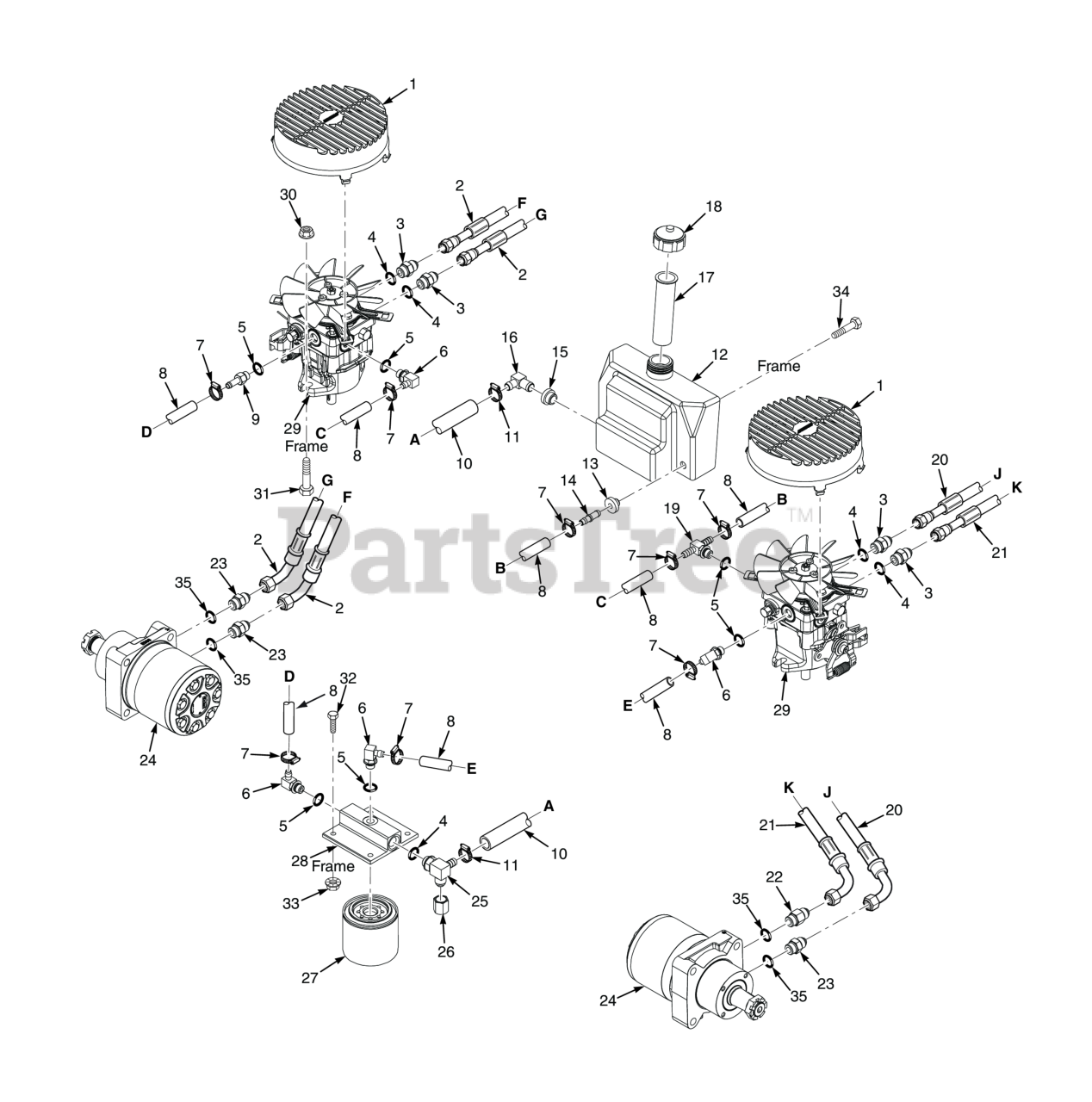

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Scag 485564

Fan Cover, Pump

$19.99

$

Usually ships in 2-12 days

0

2

Scag 484452

Hose Assembly

$81.99

$

In Stock, only 1 left!

0

3

Scag 48572-04

Union, 3/4"-16 JIC x 3/4"-16 O-Ring

$8.49

$

In Stock, only 1 left!

0

4

Scag 48603-02

"O" RING, 3/32 X 5/8" ID

$3.49

$

In Stock, only 3 left!

0

5

Scag 48603-06

"O" RING, 5/64 X 15/32 ID

$6.99

$

In Stock, only 2 left!

0

6

Scag 482266-01

Elbow, 90 Degree - 9/16" O-Ring x 3/8" Hose

$32.99

$

Usually ships in 2-12 days

0

7

Scag 48136-13

Clamp, .69" Max. / .25" Min. Dia.

$7.49

$

In Stock, Qty 20+

0

8

Scag 48811

Hose, 3/8" ID - 10-1/4" Long (Order By The Inch)

$0.99

$

In Stock, Qty 20+

0

9

Scag 482800-02

Fitting, 9/16" O-Ring x 3/8" Hose

$17.99

$

Usually ships in 2-12 days

0

10

Scag 48351

Hose Assembly, 1/2" ID (Oil Reservoir to Filter Base)

$0.99

$

In Stock, Qty 12

0

11

Scag 48136-05

Clamp, Cable 3/4" I.D.

$3.99

$

In Stock, only 2 left!

0

12

Scag 462801

Hydraulic Tank Assy

$158.99

$

Usually ships in 2-12 days

0

13

Scag 482571

Bushing, 0.56" Dia. Viton

$12.99

$

In Stock, Qty 20+

0

14

Scag 485590

Fitting, Straight

$3.49

$

Usually ships in 2-12 days

0

15

Scag 482573

Bushing, 0.78" Dia. Viton

$13.99

$

In Stock, only 2 left!

0

16

Scag 482574

Fitting, 90 Degree - 1/2" Hose

$18.99

$

Usually ships in 2-12 days

0

17

Scag 481507

Insert, Filler Neck

$13.99

$

Usually ships in 2-12 days

0

18

Scag 481164

CAP, HYDRAULIC TANK

$18.99

$

In Stock, Qty 8

0

19

Scag 482277

Tee Fitting, O-Ring to Barb

$36.99

$

Usually ships in 2-12 days

0

20

Scag 485603

Hose Assembly

$69.99

$

In Stock, only 1 left!

0

21

Scag 485602

Hose Assembly

$66.99

$

Usually ships in 2-12 days

0

22

Scag 48572-10

Fitting, 1/2" JIC x 5/8" O-Ring (LH Wheel Motor - Upper Port Only)

$11.99

$

Usually ships in 2-12 days

0

23

Scag 48572-02

TUBE UNION, 3/4-16 JIC TO 7/8-14 "O" RING

$12.99

$

Usually ships in 2-12 days

0

24

Scag 482639

Wheel Motor, Parker

$1183.99

$

In Stock, only 1 left!

0

25

Scag 482483

Tee, 3/4" O-Ring x JIC x 1/2" Hose

$35.99

$

In Stock, only 1 left!

0

26

Scag 48571-02

CAP, 3-4-16 JIC

$5.99

$

Usually ships in 2-12 days

0

27

Scag 48462-01

OIL FILTER, SPECIAL

$26.99

$

In Stock, Qty 20+

0

28

Scag 482417

Filter Head Assembly

$128.99

$

Usually ships in 2-12 days

0

29

Scag 485573

Pump, LH (PK-3KCC-GA1F-XXXX)

$1098.99

$

Usually ships in 2-12 days

0

Scag 485574

Pump, RH (PK-3HCC-GA1F-XXXX)

$1109.99

$

Usually ships in 2-12 days

0

30

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

31

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV

$0.99

$

In Stock, Qty 20+

0

32

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

33

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

34

Scag 04017-15

CAP SCREW, 5/16-18 X 1/2" SERRATED FLANGE HEX

$0.99

$

In Stock, Qty 8

0

35

Scag 48603-04

"O" RING, 3/32 X 3/4 ID

$8.99

$

In Stock, only 2 left!

0
