STCII-48V-23CV - Scag Tiger Cat II 48" Zero-Turn Mower, 23hp Kohler (SN: V4600001 - V4699999) ELECTRICAL SYSTEM Parts Diagram

Tiger Cat II 48" Zero-Turn Mower, 23hp Kohler

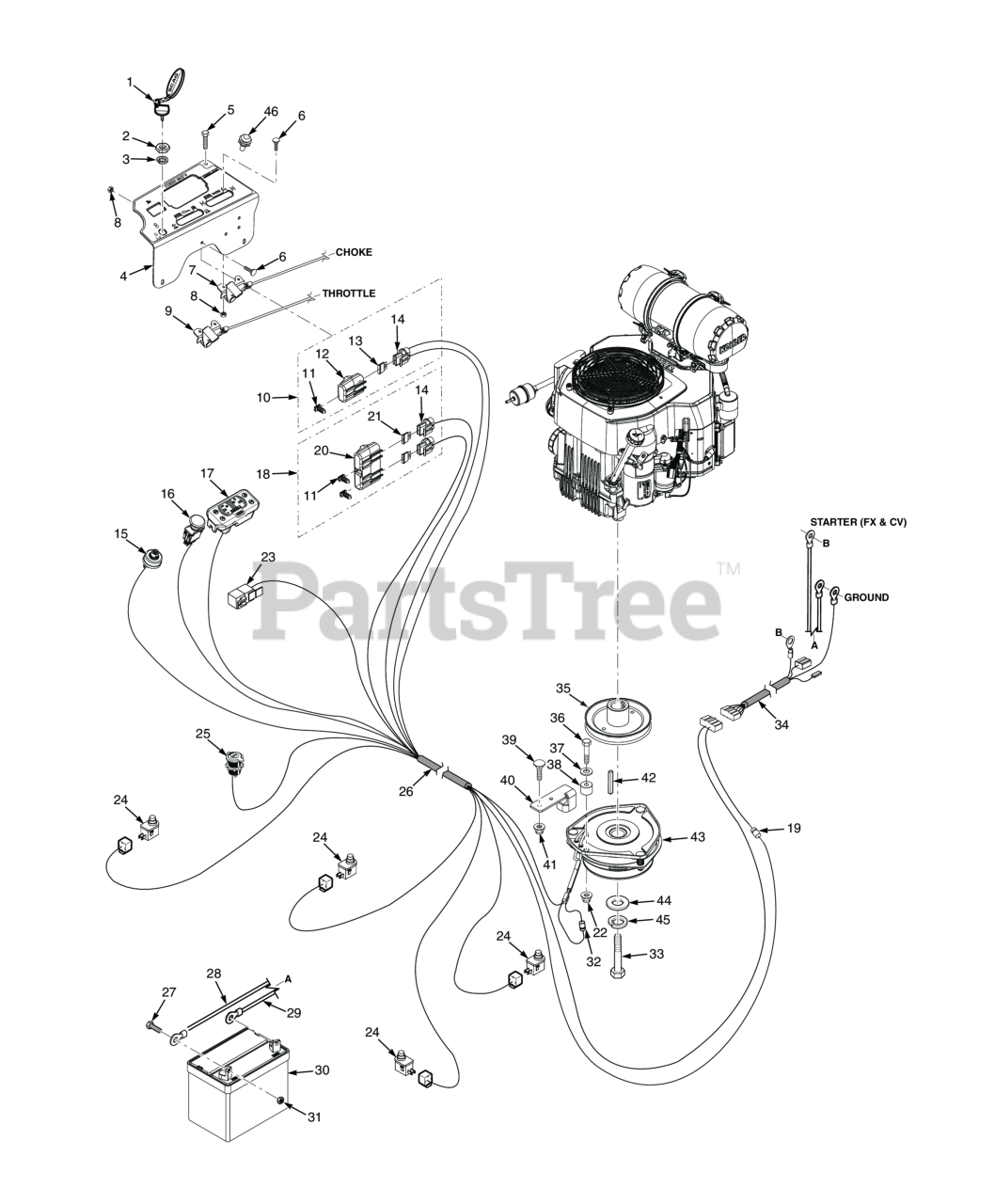

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Scag 462069

Key, Assembly w/Fob

$8.49

$

In Stock, Qty 20+

0

2

Scag 48017-04

Nut, 5/8-32 Special

$1.49

$

In Stock, Qty 5

0

3

Scag 48017-03

LOCK WASHER, 5/8" INTERNAL TOOTH

$0.99

$

In Stock, Qty 6

0

4

Scag 463386

Instrument Panel w/Decal

$92.99

$

In Stock, only 1 left!

0

5

Scag 04017-04

CAP SCREW, 1/4-20 X 1/2" SERRATED FLANGE HEX

$0.99

$

In Stock, Qty 20+

0

6

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 6

0

Scag 485610

Choke Control Cable (Kohler CV)

$24.99

$

In Stock, only 2 left!

0

8

Scag 04021-26

Nut, Elastic Stop #10-24

$0.99

$

In Stock, Qty 11

0

10

Scag 485739

Single Fuse Assy., Excluding Fuse

$33.99

$

Usually ships in 2-12 days

0

11

Scag 482588

Clip, Fuse Holder

$1.99

$

Usually ships in 2-12 days

0

12

Scag 483643

Cover, Sealed Single

$4.49

$

In Stock, only 2 left!

0

13

Scag 485674

Fuse, 5 Amp

$7.99

$

Usually ships in 2-12 days

0

14

Scag 483629

Fuse Holder Assembly

$7.49

$

In Stock, Qty 7

0

15

Scag 48798

KEY SWITCH(INCLUDES MOUNTING HARDWARE)

$27.99

$

In Stock, Qty 20+

0

16

Scag 485833

Switch, PTO - 10 Amp

$47.99

$

In Stock, only 1 left!

0

17

Scag 484721

Tiger Eye, Cluster Gauge

$374.99

$

In Stock, only 1 left!

0

18

Scag 483642

Double Fuse Assy.

$43.99

$

Usually ships in 2-12 days

0

19

Scag 482253

Decal, Forward Speed Selector

$7.99

$

Usually ships in 2-12 days

0

20

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

21

Scag 48298

FUSE, 20 AMP BLADE TYPE AUTOMOTIVE

$3.99

$

Usually ships in 2-12 days

0

22

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

23

Scag 483013

Relay, 12V 40 AMP Standard

$20.99

$

In Stock, Qty 20+

0

24

Scag 481638

Switch, Interlock, Normally Open

$15.99

$

In Stock, Qty 20+

0

25

Scag 485568

Power Plug, 12V

$30.99

$

Usually ships in 2-12 days

0

27

Scag 04001-44

Bolt, Hex Head 1/4-20 x .5" Battery, (Not Available Through Scag)

$0.99

$

In Stock, Qty 6

0

28

Scag 48029-28

Battery Cable, 25" Red

$22.99

$

Usually ships in 2-12 days

0

29

Scag 48029-11

Battery Cable, 27" Black (35BV & 37BV-EFI) - Briggs & Stratton

$14.99

$

In Stock, only 1 left!

0

30

Battery, 350 CCA

$

$

Not available

31

Scag 04020-02

Nut, 1/4 - 20 Hex

$0.99

$

In Stock, Qty 10

0

32

Scag 483958

Diode, 600V 6 Amp

$2.49

$

In Stock, only 4 left!

0

Scag 485673

Wire Harness Adapter, Kohler - 23CV

$31.99

$

Usually ships in 2-12 days

0

35

Scag 485589

Pulley, 5.75" Dia. - 1.125 Bore

$45.99

$

In Stock, only 1 left!

0

36

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 6

0

37

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

38

Scag 431041

BUSHING, UHMW

$6.49

$

Usually ships in 2-12 days

0

39

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

40

Scag 427330

ANTI ROTATION

$22.99

$

Usually ships in 2-12 days

0

41

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

42

Scag 04063-28

Key, 1/4 x 1/4 x 3-1/2"

$1.49

$

In Stock, Qty 5

0

43

Scag 462339

Clutch w/Tag GT3.5--FE05 (61)

$457.99

$

In Stock, only 1 left!

0

44

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52)

$2.99

$

In Stock, Qty 12

0

45

Scag 04030-05

Lockwasher, 7/16� Spring

$0.99

$

In Stock, Qty 5

0

Scag 48126

RUBBER BOOT

Note: Not Shown

$8.49

$

Usually ships in 2-12 days

0
