STCII-48V-23CV - Scag Tiger Cat II 48" Zero-Turn Mower, 23hp Kohler (SN: V4600001 - V4699999) CUTTER DECKS Parts Diagram

Tiger Cat II 48" Zero-Turn Mower, 23hp Kohler

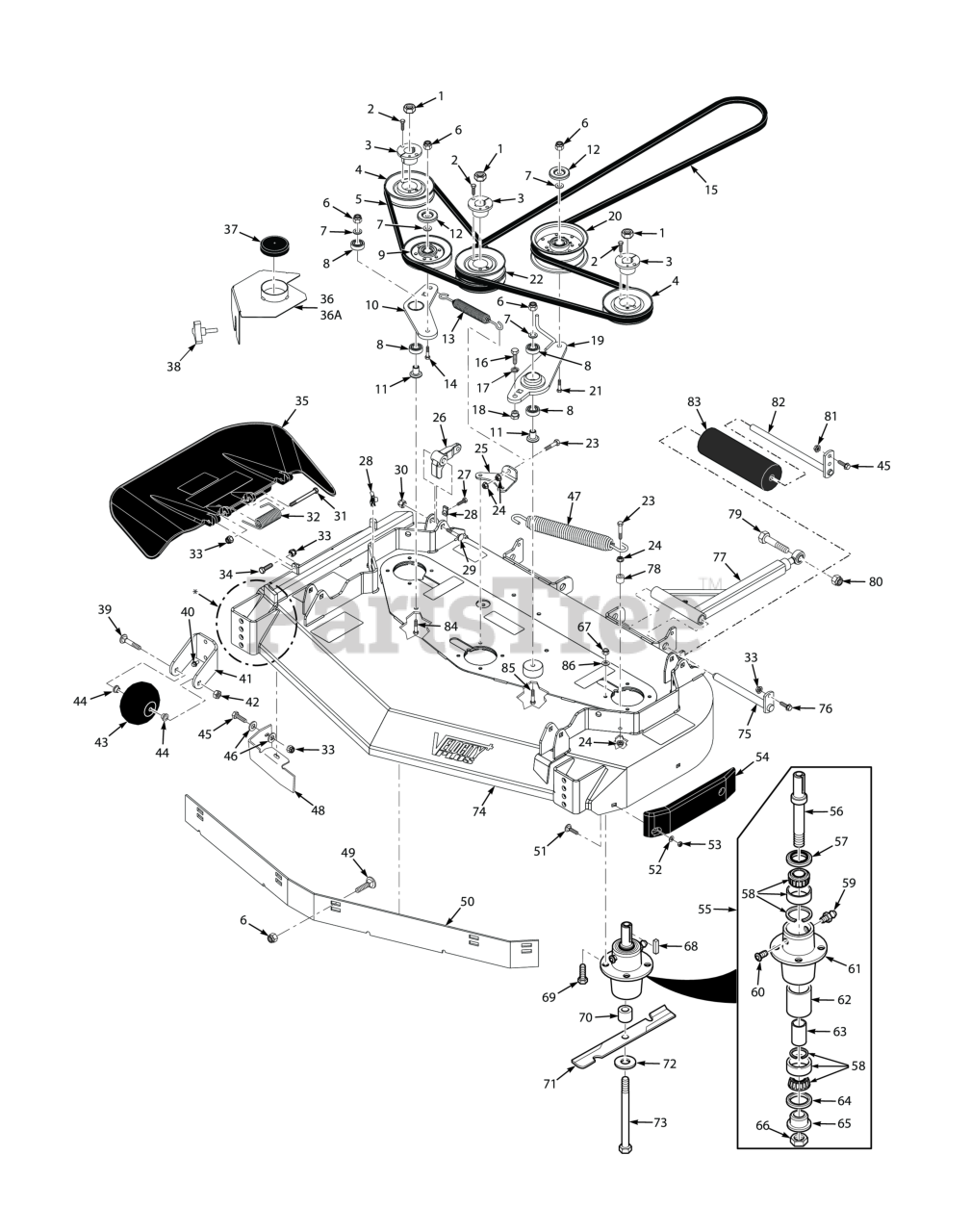

CUTTER DECKS Parts Diagram

  • Title

1

Scag 04020-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

0

2

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

3

Scag 48926

Hub, Tapered 1-1/8" Bore

$30.99

$

In Stock, Qty 20+

0

4

Scag 483282

Pulley, 5.13" Dia. - 48V

$36.99

$

In Stock, only 2 left!

0

5

Scag 483239

Belt, R.H. Cutter Deck

$31.99

$

In Stock, only 1 left!

0

6

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

7

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

8

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$12.99

$

In Stock, Qty 20+

0

9

Scag 48181

IDLER PULLEY, "V" GROOVE

$26.99

$

In Stock, Qty 11

0

10

Scag 461946

ldler Arm Assembly, R.H. Drive

$69.99

$

In Stock, only 1 left!

0

11

Scag 43689

Pivot, Idler Short

$10.99

$

In Stock, Qty 20+

0

12

Scag 424367

Quick Pin, 5/16" Dia.

$2.49

$

In Stock, only 2 left!

0

13

Scag 483247

Spring, Idler R.H.

$51.99

$

In Stock, only 1 left!

0

14

Scag 04001-45

Capscrew, Hex Head 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 8

0

15

Scag 486283

Belt, Cutter Deck Drive (48V)

$73.99

$

In Stock, only 1 left!

0

16

Scag 04001-27

Bolt, Hex Head 7/16-14 x 1"

$0.99

$

Usually ships in 2-12 days

0

17

Scag 04030-05

Lockwasher, 7/16� Spring

$0.99

$

In Stock, Qty 5

0

18

Scag 43686

Boss, Spring Anchor - LH

$7.99

$

Usually ships in 2-12 days

0

19

Scag 462503

Idler Arm Assy.

$88.99

$

In Stock, only 1 left!

0

20

Scag 483210

Pulley, Idler 5" Dia.

$55.99

$

In Stock, only 2 left!

0

21

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3" - 52"

$0.99

$

In Stock, Qty 9

0

22

Scag 483283

Pulley, Double Groove

$62.99

$

In Stock, only 1 left!

0

23

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

24

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

25

Scag 424376

Bracket, Spring Anchor RH (48V)

$12.99

$

Usually ships in 2-12 days

0

26

Scag 485528

Lever, Deck Level

$22.99

$

Usually ships in 2-12 days

0

27

Scag 04107-04

Bolt, Hex Head 3/8-16 x 2" Special Lock

$1.49

$

In Stock, Qty 8

0

28

Scag 04110-03

U-Nut, 3/8-16 (short)

$2.49

$

In Stock, Qty 20+

0

29

Scag 04003-42

Bolt, Carriage 7/16-14 x 2-1/4"

$2.49

$

In Stock, only 3 left!

0

30

Scag 04021-11

HEX LOCKNUT, ELASTIC STOP, 7/16-14

$0.99

$

In Stock, Qty 10

0

31

Scag 04001-154

Bolt, 5/16-18 x 4-3/4" Hex Head

$2.99

$

In Stock, Qty 20+

0

32

Scag 483378

Spring, Discharge Chute

$7.49

$

In Stock, only 4 left!

0

33

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

34

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-1/2" - Front

$0.99

$

In Stock, Qty 20+

0

35

Scag 461844

Discharge Chute Assembly - 48V

$66.99

$

In Stock, only 2 left!

0

Scag 462473

CA Discharge Chute, 48V

Note: California Models Only (not shown)

$128.99

$

Usually ships in 2-12 days

0

36

Scag 462480

Belt Cover Weldment RH

$68.99

$

Usually ships in 2-12 days

0

Scag 462822

Belt Cover Weldment LH

$67.99

$

Usually ships in 2-12 days

0

37

Scag 484368

Cap, Spindle (not shown) 61" Only

$4.99

$

In Stock, Qty 20+

0

38

Scag 481625-01

Knob, w/stud 3/8-16 x 1-1/4"

$2.99

$

In Stock, Qty 20+

0

39

Scag 04003-26

Bolt, Hex Head 3/8-16 x 3-1/2"

$1.99

$

In Stock, Qty 20+

0

40

Scag 04017-27

Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd

$1.49

$

In Stock, Qty 20+

0

41

Scag 422478

Bracket, Anti-Scalp Wheel

$28.99

$

In Stock, Qty 20+

0

42

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

0

43

Scag 481632

Bolt, Carriage 3/8-16 x 4"

$21.99

$

In Stock, Qty 20+

0

44

Scag 48100-15

Bushing, .376" I.D. Oilite

$4.99

$

In Stock, Qty 20+

0

45

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

46

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

47

Scag 483246

Spring, L.H. Deck Drive

$51.99

$

In Stock, only 1 left!

0

48

Scag 424677

Turbo Baffle - 48V / 52V

$31.99

$

In Stock, only 1 left!

0

Scag 425619

Turbo Baffle, 48V

Note: California Models Only (not shown)

$38.99

$

Usually ships in 2-12 days

0

49

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

50

Scag 424839

Baffle Custom-Cut, 48V (7-Position)

$84.99

$

In Stock, only 1 left!

0

51

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

52

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065 (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

53

Scag 04021-04

Nut, Center Lock, 5/16-18(32)

$0.99

$

In Stock, Qty 20+

0

54

Scag 483176

Pad, Deck Wear

$33.99

$

In Stock, Qty 20+

0

55

Scag 461663

Cutter Spindle Assembly

$257.99

$

In Stock, Qty 20+

0

56

Scag 43589

Spindle Shaft, Tapered Brng

$58.99

$

In Stock, only 1 left!

0

57

Scag 481024

SEAL, 2.00 O.D. X 1.50 BORE

$4.99

$

In Stock, Qty 20+

0

58

Scag 481022

Tapered Bearing Set (Two Bearings W/Race)

$59.99

$

In Stock, Qty 15

0

59

Scag 48114-04

GREASE FITTING, STR. 1/4-28 SELF TAP.

$0.99

$

In Stock, Qty 20+

0

60

Scag 48677

RELIEF FITTING, TAPERED BEARING SPINDLE

$

$

Not available

61

Scag 43644

Housing, Spindle

$58.99

$

In Stock, only 2 left!

0

62

Scag 43312

Spacer, Outside, Cutter Spindle

$19.99

$

In Stock, only 1 left!

0

63

Scag 43296

SLEEVE, CUTTER SPINDLE

$8.49

$

In Stock, only 2 left!

0

64

Scag 481025

Seal, 2.00" O.D. x 1.625" Bore

$4.99

$

In Stock, Qty 20+

0

65

Scag 43297

SPINDLE BUSHING, BOTTOM

$9.99

$

In Stock, only 2 left!

0

66

Scag 481035

Nut , Spec ial 1 -1/ 1 6 - 1 8

$7.99

$

In Stock, only 3 left!

0

67

Scag 04021-22

Lock Nut, 5/16-18 Elastic Stop Grade 8

$0.99

$

In Stock, Qty 20+

0

68

Scag 04063-08

Key, 1/4 x 1/4 x 2.0"

$1.49

$

In Stock, Qty 20+

0

69

Scag 04001-176

Bolt, Hex Head 5/16-18 x 1-3/4" Grade 8

$0.99

$

In Stock, Qty 20+

0

70

Scag 43590

Spacer, Spindle Bottom

$17.99

$

In Stock, Qty 20+

0

71

Scag 482877

Cutter Blade, 16-1/2" (48V)

$22.99

$

In Stock, Qty 20+

0

72

Scag 04043-06

Flatwasher, 5/8-.688 x 1-3/4 x .134 HD

$1.99

$

In Stock, Qty 20+

0

73

Scag 04001-41

BOLT, HEX HEAD, 5/8-11 X 9-1/2 GR.5

$12.99

$

In Stock, Qty 20+

0

74

Scag 462867

Cutter Deck Velocity Plus

$1405.99

$

Usually ships in 2-12 days

0

75

Scag 451240

Shaft Weldment, Pusharm

$52.99

$

In Stock, Qty 20+

0

76

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

77

Scag 461516

Push Arm (Includes 64,60,62)

$211.99

$

In Stock, only 4 left!

0

78

Scag 43063

SPACER, IDLER

$7.99

$

In Stock, only 2 left!

0

79

Scag 04001-79

BOLT, HEX HEAD 5/8-11 X 4-1/2"

$4.99

$

In Stock, Qty 10

0

80

Scag 04021-13

HEX LOCKNUT, ELASTIC STOP, 5/8-11

$1.49

$

In Stock, Qty 20+

0

81

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

82

Scag 45944

Shaft Weldment, Guide Roller

$21.99

$

In Stock, Qty 20+

0

83

Scag 48038

Wheel, Anti-ScalpRelief Fitting, Tapered Spindle

$28.99

$

In Stock, only 2 left!

0

84

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

0

85

Scag 04001-62

Capscrew, Hex Head 3/8-16 x 3.25"

$1.49

$

In Stock, Qty 12

0

86

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0
