STCII-48V-23CV - Scag Tiger Cat II 48" Zero-Turn Mower, 23hp Kohler (SN: L8900001 - L8999999) Steering Components Parts Diagram

Tiger Cat II 48" Zero-Turn Mower, 23hp Kohler

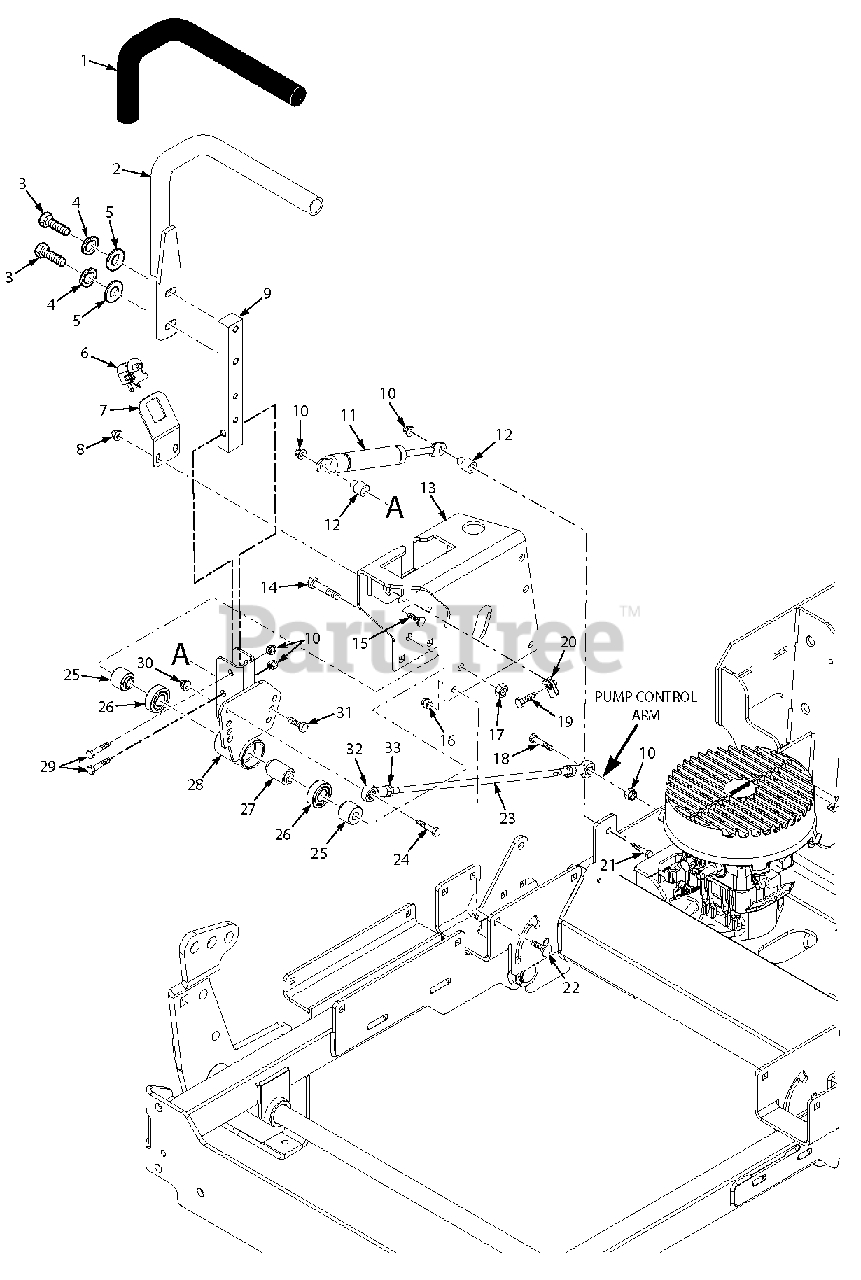

Steering Components Parts Diagram

  • Title

1

Scag 484376

Grip, Control Handle

$11.99

$

Usually ships in 2-12 days

0

2

Scag 462401

Handle Bar w/Grip

$107.99

$

Usually ships in 2-12 days

0

3

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

4

Scag 04030-04

Lockwasher, 3/8" Spring

$0.99

$

In Stock, Qty 8

0

5

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

6

Scag 481638

Switch, N/O

$15.99

$

In Stock, Qty 20+

0

7

Scag 425905

Bracket, Operator Presence Switch

$11.99

$

Usually ships in 2-12 days

0

8

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

9

Scag 422372

Bar, Control Lever

$30.99

$

In Stock, only 2 left!

0

10

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

11

Scag 484151

Gas Damper

$72.99

$

In Stock, Qty 6

0

12

Scag 43602

Spacer, Pump Dampener

$3.49

$

In Stock, only 1 left!

0

13

Scag 462859

Bracket Weldment, Control Lever RH w/Decal
(Superseded to 462922)

$157.99

$

Usually ships in 2-12 days

0

13

Scag 462858

Bracket Weldment, Control Lever LH w/Decal
(Superseded to 462922)

$157.99

$

Usually ships in 2-12 days

0

14

Scag 04001-152

Bolt, Hex Head 3/8-16 x 4-1/4"

$5.49

$

In Stock, Qty 5

0

15

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

16

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

17

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

18

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

19

Scag 04107-03

Bolt, Hex Head 3/8-16 x 1-1/4" with Thread Lock Patch

$1.49

$

In Stock, Qty 5

0

20

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

21

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2", RH

$0.99

$

In Stock, Qty 6

0

21

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4", LH

$0.99

$

In Stock, Qty 20+

0

22

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

23

Scag 485583

Linkage Assy, Steering

$51.99

$

In Stock, only 1 left!

0

23

Scag 484073

Rod End, 5/16-24 LH

$14.99

$

In Stock, only 1 left!

0

23

Scag 04020-31

Nut, 5/16-24 UNF Jam

$0.99

$

In Stock, Qty 9

0

24

Scag 04001-04

Bolt, Hex Head 1/4-20 x 1-1/2"

$0.99

$

In Stock, Qty 16

0

25

Scag 43607

Spacer, Controls

$5.99

$

Usually ships in 2-12 days

0

26

Scag 48224

Bearing

$13.99

$

In Stock, Qty 20+

0

27

Scag 43600

Spacer, Bearing

$10.99

$

Usually ships in 2-12 days

0

28

Scag 452731

Pivot Weldment, Control Arm RH

$61.99

$

In Stock, only 1 left!

0

28

Scag 452730

Pivot Weldment, Control Arm LH

$55.99

$

In Stock, only 1 left!

0

29

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

30

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

31

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 6

0

32

Scag 485584

Rod End, 5/16-24 RH

$13.99

$

Usually ships in 2-12 days

0

33

Scag 04020-30

Nut, 5/16-24 UNF LH Jam

$2.49

$

Usually ships in 2-12 days
