STCII-48V-23CV - Scag Tiger Cat II 48" Zero-Turn Mower, 23hp Kohler (SN: L8900001 - L8999999) Electrical System Parts Diagram

Tiger Cat II 48" Zero-Turn Mower, 23hp Kohler

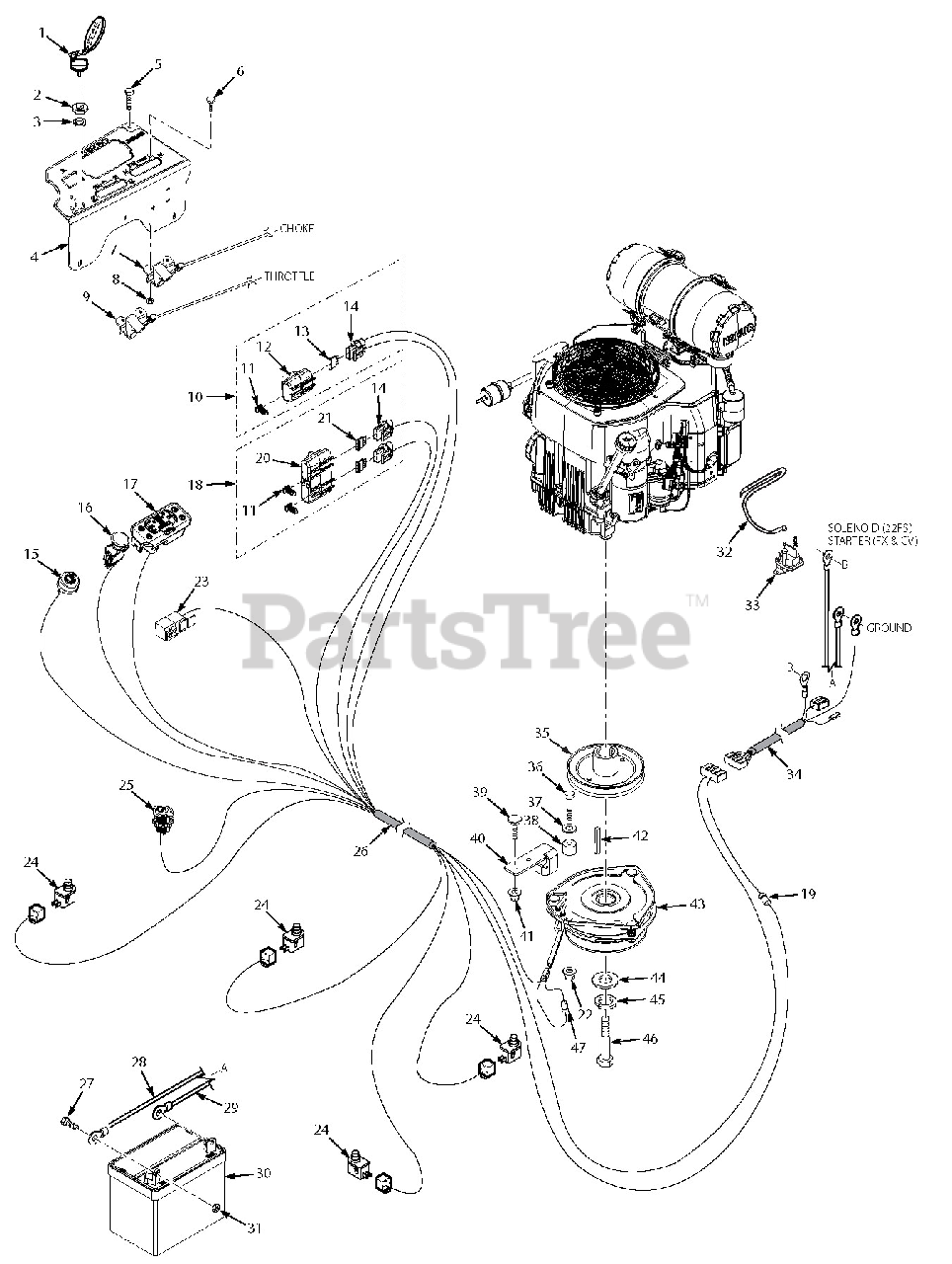

Electrical System Parts Diagram

  • Title

1

Scag 483366

Key, Ignition
(Superseded to 462069)

$9.99

$

In Stock, Qty 20+

0

2

Scag 48017-04

Nut, Hex 5/8-32

$1.99

$

In Stock, Qty 5

0

3

Scag 48017-03

Lockwasher, 5/8" Internal

$0.99

$

In Stock, Qty 6

0

4

Scag 462862

Instrument Panel w/Decal

$97.99

$

Usually ships in 2-12 days

0

5

Scag 04017-04

Bolt, Hex Head Serrated Flange 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 20+

0

6

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 10

0

7

Scag 485628

Choke Control Cable (Kawasaki FS / FX)

$26.99

$

In Stock, Qty 14

0

7

Scag 485610

Choke Control Cable (Kohler CV)

$24.99

$

In Stock, only 2 left!

0

8

Scag 04021-26

Locknut, #10-24

$0.99

$

In Stock, Qty 14

0

9

Scag 485628

Throttle Control Cable (Kawasaki FS / FX, Kohler CV)

$26.99

$

In Stock, Qty 14

0

10

Scag 485739

Single Fuse Assy.

Note: (incl. #11, 12, 14)

$34.99

$

Usually ships in 2-12 days

0

11

Scag 482588

Clip, Wire

$1.99

$

Usually ships in 2-12 days

0

12

Scag 483643

Cover, Sealed Single

$4.99

$

In Stock, only 2 left!

0

13

Scag 485674

Fuse, 5 Amp

$8.49

$

Usually ships in 2-12 days

0

14

Scag 483629

Fuse Holder

$7.49

$

In Stock, Qty 8

0

15

Scag 48798

Switch, Starter

$27.99

$

In Stock, Qty 20+

0

16

Scag 483957

Switch, PTO
(Superseded to 463034)

$46.99

$

In Stock, Qty 20+

0

17

Scag 484721

Cluster Gauge

$383.99

$

In Stock, only 1 left!

0

18

Scag 483642

Double Fuse Assy.

Note: (incl. #11, 14, 20, 21)

$54.99

$

Usually ships in 2-12 days

0

19

Scag 482253

Diode

$8.49

$

Usually ships in 2-12 days

0

20

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

21

Scag 48298

Fuse, 20 Amp

$

$

Not available

22

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

23

Scag 483013

Relay

$21.99

$

In Stock, Qty 20+

0

24

Scag 481638

Switch

$15.99

$

In Stock, Qty 20+

0

25

Scag 485568

Power Plug

$30.99

$

Usually ships in 2-12 days

0

26

Scag 485640

Wire Harness

$399.99

$

Usually ships in 2-12 days

0

27

Scag 04001-44

Bolt, Hex Head 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 6

0

28

Scag 48029-28

Battery Cable, 25" Red

$23.99

$

Usually ships in 2-12 days

0

29

Scag 48029-11

Battery Cable, 27" Black

$14.99

$

In Stock, only 1 left!

0

30

Battery, 350 CCA

Note: Not available through Scag.

$

$

Not available

31

Scag 04020-02

Nut, 1/4-20 UNC

$0.99

$

In Stock, Qty 10

0

32

Scag 48029-09

Battery Cable, Red 9" (Kawasaki 22FS)

$10.99

$

Usually ships in 2-12 days

0

33

Scag 483278

Solenoid, Sealed (Kawasaki 22FS)

$53.99

$

In Stock, only 1 left!

0

34

Scag 485679

Wire Harness Adapter, Kawasaki - 22FS

$49.99

$

Usually ships in 2-12 days

0

34

Scag 485678

Wire Harness Adapter, Kawasaki - 22FX & 23FX

$23.99

$

Usually ships in 2-12 days

0

34

Scag 485673

Wire Harness Adapter, Kohler - 23CV

$32.99

$

Usually ships in 2-12 days

0

35

Scag 485589

Pulley, 5.75" Dia. - 1.125 Bore

$47.99

$

In Stock, only 1 left!

0

36

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 6

0

37

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

38

Scag 431009

Bushing, UHMW

$6.49

$

Usually ships in 2-12 days

0

39

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

40

Scag 427111

Anti-Rotation Bracket
(Superseded to 427330)

$22.99

$

Usually ships in 2-12 days

0

41

Scag 04117-01

Nut, Flange Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

42

Scag 04063-28

Key, 1/4 x 1/4 x 3-1/2"

$1.49

$

In Stock, Qty 5

0

43

Scag 484276

Clutch, GT3.5 - 1.125 Bore
(Superseded to 462339)

$496.99

$

Usually ships in 2-12 days

0

44

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25

$2.99

$

In Stock, Qty 13

0

45

Scag 04030-05

Lockwasher, 7/16" Spring

$0.99

$

In Stock, Qty 8

0

46

Scag 04102-03

Bolt, Hex Head 7/16-20 x 2-1/4" w/Patch

$2.49

$

In Stock, Qty 13

0

47

Scag 483958

Diode, 600V - 6A

$2.49

$

In Stock, only 4 left!

0
