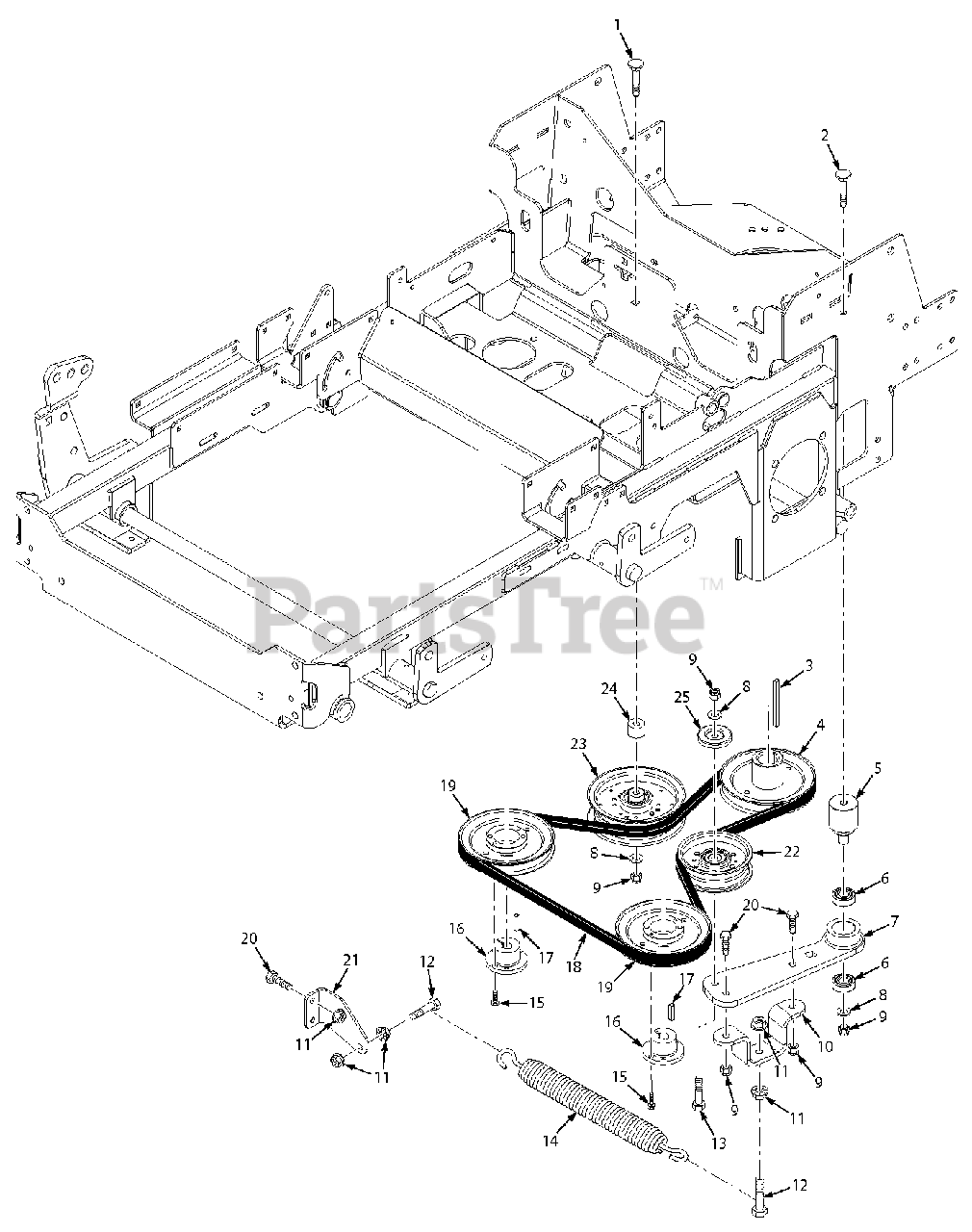

STCII-48V-23CV - Scag Tiger Cat II 48" Zero-Turn Mower, 23hp Kohler (SN: L8900001 - L8999999) Drive System Components Parts Diagram

Tiger Cat II 48" Zero-Turn Mower, 23hp Kohler

Drive System Components Parts Diagram

  • Title

1

Scag 04003-47

Bolt, Carriage 3/8-16 x 3-1/4"

$5.99

$

Usually ships in 2-12 days

0

2

Scag 04003-26

Bolt, Carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

0

3

Scag 04063-28

Key, 1/4 x 1/4 x 3-1/2"

$1.49

$

In Stock, Qty 5

0

4

Scag 485589

Pulley, 5.75" Dia. - 1.125 Bore

$47.99

$

In Stock, only 1 left!

0

5

Scag 431025

Pivot, Idler Arm

$22.99

$

In Stock, only 2 left!

0

6

Scag 48224

Bearing

$13.99

$

In Stock, Qty 20+

0

7

Scag 462860

Idler Arm Assembly

Note: (incl. #6)

$70.99

$

Usually ships in 2-12 days

0

8

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

9

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

10

Scag 425386

Mounting Bracket, Idler

$19.99

$

In Stock, only 1 left!

0

11

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

12

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8

$0.99

$

In Stock, Qty 20+

0

13

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

14

Scag 484202

Spring, Pump Drive

$103.99

$

In Stock, Qty 5

0

15

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 20+

0

16

Scag 482085

Hub, Tapered, 15mm Bore

$28.99

$

In Stock, only 1 left!

0

17

Scag 04063-14

Key, 5 x 5 x 25mm

$0.99

$

In Stock, Qty 5

0

18

Scag 485648

Belt, Pump Drive (48"/52")

$49.99

$

In Stock, only 2 left!

0

18

Scag 485649

Belt, Pump Drive (61")

$48.99

$

In Stock, Qty 20+

0

19

Scag 482744

Pulley, 5.75" OD Taper Bore

$30.99

$

In Stock, only 1 left!

0

20

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

21

Scag 427016

Bracket, Spring Anchor

$12.99

$

Usually ships in 2-12 days

0

22

Scag 484128

Pulley, 4" Dia. Idler

$23.99

$

In Stock, only 1 left!

0

23

Scag 483215

Pulley, 5" Dia. Idler

$62.99

$

In Stock, Qty 20+

0

24

Scag 43286

Spacer

$2.49

$

In Stock, only 2 left!

0

25

Scag 424367

Dust Shield

$2.49

$

Usually ships in 2-12 days

0
