STCII-48V-23CV - Scag Tiger Cat II 48" Zero-Turn Mower, 23hp Kohler (SN: L8900001 - L8999999) Cutter Deck Controls Parts Diagram

Tiger Cat II 48" Zero-Turn Mower, 23hp Kohler

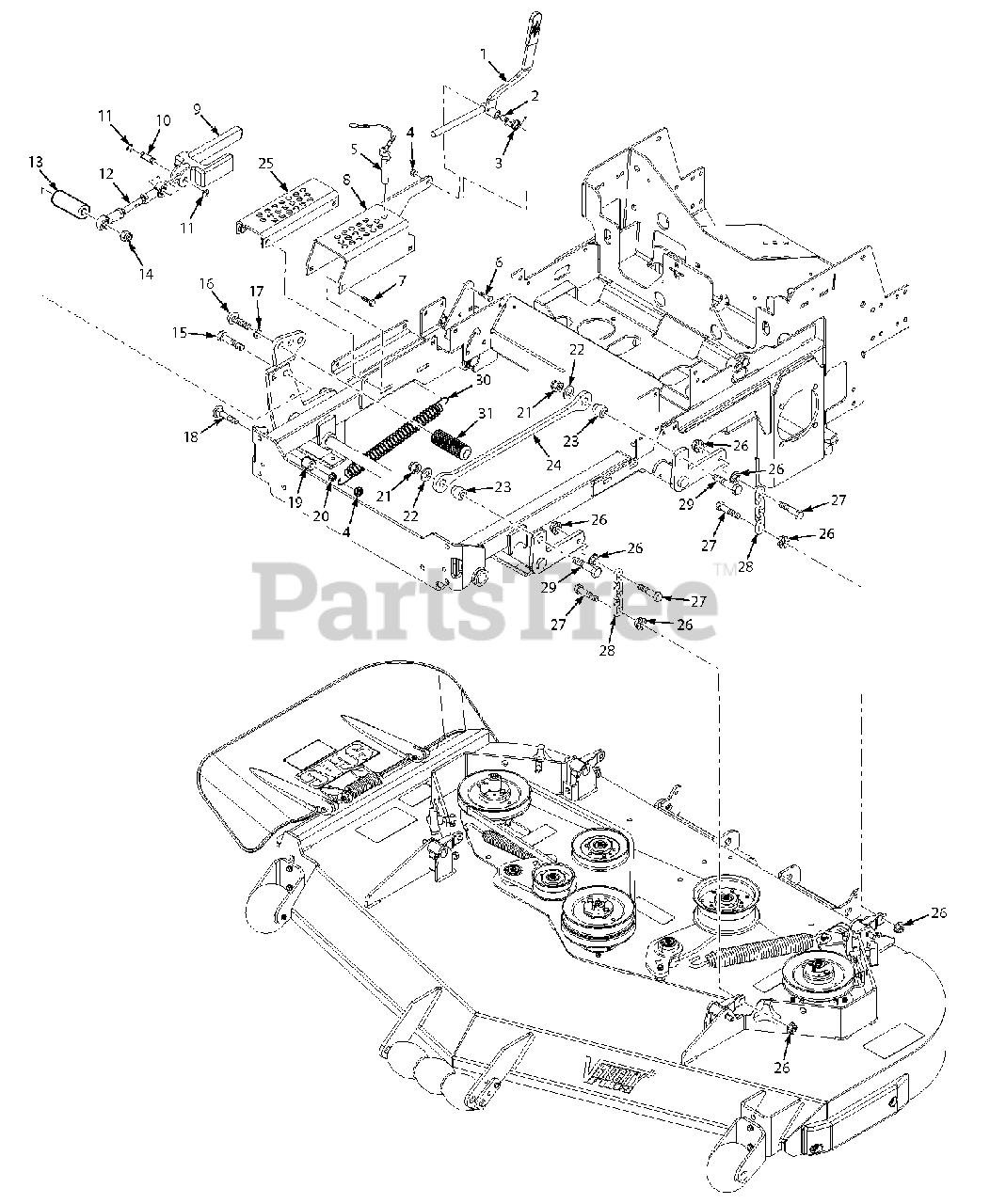

Cutter Deck Controls Parts Diagram

  • Title

1

Scag 462839

Deck Latch Assembly (Includes Grip)

$37.99

$

Usually ships in 2-12 days

0

1

Scag 485592

Grip, Deck Latch

$1.99

$

Usually ships in 2-12 days

0

2

Scag 43874

Spacer, Deck Latch

$10.99

$

Usually ships in 2-12 days

0

3

Scag 485704

Spring, Torsion - Lever Return

$3.49

$

Usually ships in 2-12 days

0

4

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

5

Scag 483345

Pin Assembly, w/Lanyard

$11.99

$

In Stock, Qty 6

0

6

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

7

Scag 04006-02

Bolt, Hex Wshr Head 5/16-18 x 1-1/4"

$1.99

$

Usually ships in 2-12 days

0

8

Scag 425737

Adjustment Bracket, Cutting Height

$

$

Not available

9

Scag 485570

Slide, Height Adjust

$41.99

$

Usually ships in 2-12 days

0

10

Scag 43487

Pin, Deck Lift

$26.99

$

In Stock, only 1 left!

0

11

Scag 04050-18

Retaining Ring, 1/2" Ext.

$17.99

$

In Stock, Qty 8

0

12

Scag 482534

Linkage Assembly, Deck Lift

$83.99

$

Usually ships in 2-12 days

0

13

Scag 43873

Spacer, Deck Lift Pedal

$14.99

$

Usually ships in 2-12 days

0

14

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

15

Scag 04001-87

Bolt, Hex Head 1/2-13 x 4"

$2.99

$

In Stock, Qty 10

0

16

Scag 04108-04

Capscrew, 5/8-11 x 1-1/2"

$2.99

$

Usually ships in 2-12 days

0

17

Scag 04030-07

Lockwasher, 5/8" Spring

$0.99

$

In Stock, Qty 19

0

18

Scag 04003-21

Bolt, Carriage 3/8-16 x 2-1/2"

$2.49

$

Usually ships in 2-12 days

0

19

Scag 43572

Spacer

$1.99

$

In Stock, Qty 5

0

20

Scag 040419-04

Nut, Serrated Flange 3/8-16

$

$

Currently unavailable

21

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

22

Scag 04040-13

Flatwasher, 1/2-.562 x 1.375 x .109

$0.99

$

In Stock, Qty 20+

0

23

Scag 431018

Pivot, Deck Link

$6.49

$

Usually ships in 2-12 days

0

24

Scag 427012

Link, Decklift

$21.99

$

Usually ships in 2-12 days

0

25

Scag 452408

Adjustment Bracket, Lower Cut Height

$65.99

$

Usually ships in 2-12 days

0

26

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

27

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

28

Scag 48540

Chain
(Superseded to 482628)

$11.99

$

In Stock, only 3 left!

0

29

Scag 04001-153

Bolt, Hex Head 1/2-13 x 2-1/4"

$2.49

$

In Stock, Qty 8

0

30

Scag 483177

Spring, Decklift

$65.99

$

Usually ships in 2-12 days

0

31

Scag 424504

Foot Pedal, Height Adjustment

$14.99

$

In Stock, only 1 left!

0
