STCII-48V-22FX - Scag Tiger Cat II 48" Zero-Turn Mower, 22hp Kawasaki (SN: N8700001 - N8799999) (Rev 01) STCII - KAWASAKI 26FT EFI ELECTRICAL SCHEMATIC Parts Diagram
Tiger Cat II 48" Zero-Turn Mower, 22hp Kawasaki

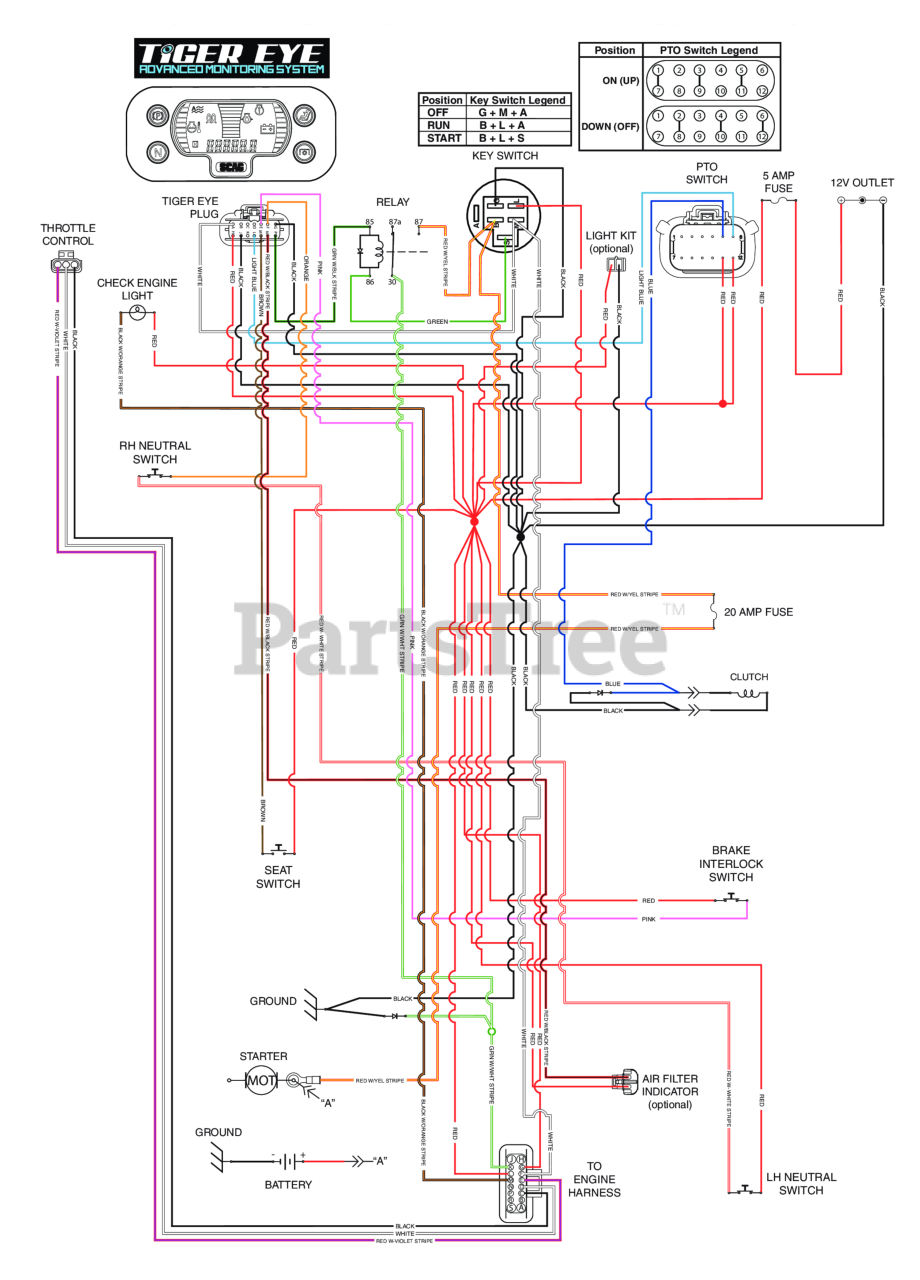

STCII - KAWASAKI 26FT EFI ELECTRICAL SCHEMATIC Parts Diagram
No Part List Information Available
$
$
Not available
