STCII-48V-22FS - Scag Tiger Cat II 48" Zero-Turn Mower, 22hp Kawasaki (SN: L8800001 - L8899999) STCII Foldable Roll -Over Protection System Parts Diagram

Tiger Cat II 48" Zero-Turn Mower, 22hp Kawasaki

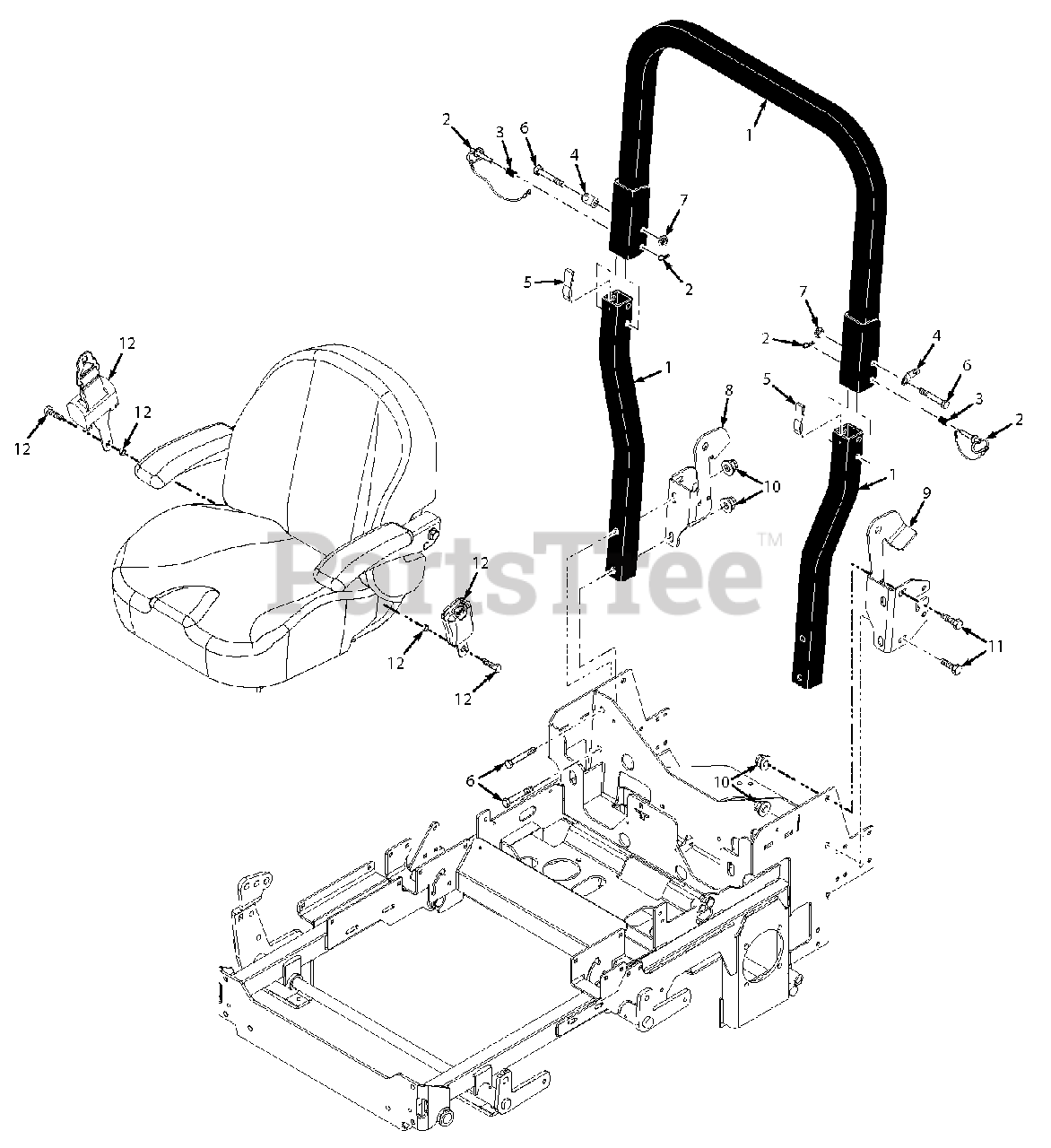

STCII Foldable Roll -Over Protection System Parts Diagram

  • Title

1

Scag 462414

ROPS Assembly, Foldable
(Superseded to 462935)

$665.99

$

Usually ships in 2-12 days

0

2

Scag 484168

Pin Assembly

Note: (incl. #3)

$27.99

$

In Stock, only 4 left!

0

3

Scag 484170

Spring, ROPS

$1.49

$

Usually ships in 2-12 days

0

4

Scag 484169

Clip, ROPS

$3.49

$

Usually ships in 2-12 days

0

5

Scag 484167

Spring, ROPS Anti-Rattle

$4.49

$

Usually ships in 2-12 days

0

6

Scag 04001-90

Bolt, Hex Head 1/2-13 x 3-1/4"

$2.99

$

Usually ships in 2-12 days

0

7

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

8

Scag 427029

ROPS Mount, RH

$

$

Not available

9

Scag 427028

ROPS Mount, LH

$

$

Not available

10

Scag 04117-04

Nut, 1/2-13 Flange Elastic Stop

$1.49

$

In Stock, Qty 8

0

11

Scag 04001-70

Bolt, Hex Head 1/2-13 x 1-1/4"

$1.49

$

In Stock, Qty 5

0

12

Scag 484717

Seat Belt Kit (Suspension Seat)

$167.99

$

Usually ships in 2-12 days

0

12

Scag 484527

Seat Belt Kit (Soft Ride Seat)

$118.99

$

Usually ships in 2-12 days

0
