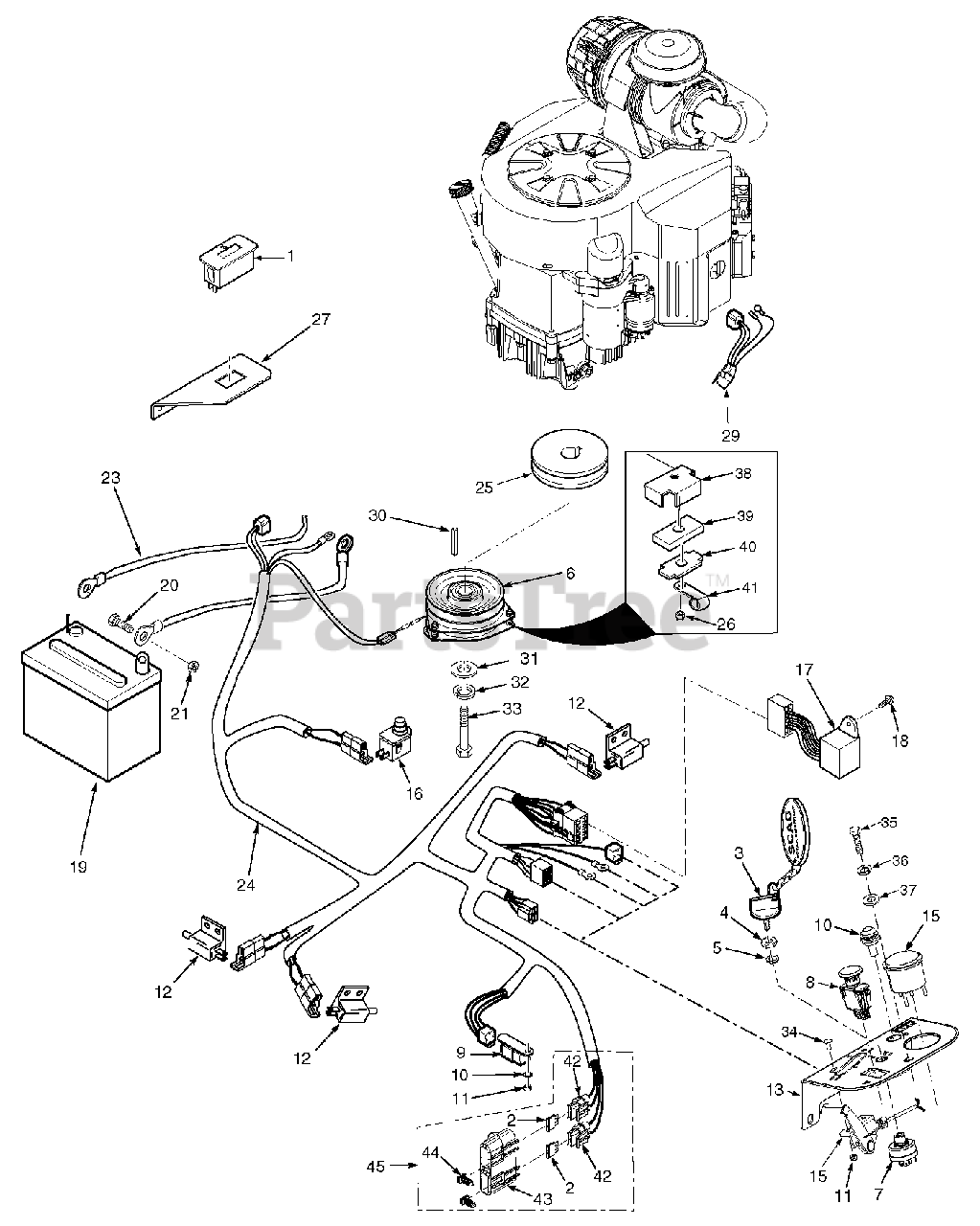

STC61V-26CV-EFI - Scag Tiger Cat 61" Zero-Turn Mower, 26hp Kohler (SN: J9400001 - J9499999) Electrical System- Kohler EFI Parts Diagram

Tiger Cat 61" Zero-Turn Mower, 26hp Kohler

Electrical System- Kohler EFI Parts Diagram

  • Title

1

Scag 484565

Hourmeter

$51.99

$

In Stock, only 1 left!

0

2

Scag 48298

Fuse, 20 amp

$3.99

$

Usually ships in 2-12 days

0

3

Scag 483366

Key, Ignition
(Superseded to 462069)

$8.49

$

In Stock, Qty 20+

0

3

Scag 462069

Key Assembly w/Fob

$8.49

$

In Stock, Qty 20+

0

4

Scag 48017-04

Nut, Hex 5/8-32

$1.49

$

In Stock, Qty 5

0

5

Scag 48017-03

Lockwasher, 5/8" Internal

$0.99

$

In Stock, Qty 6

0

6

Scag 461660

Electric PTO Clutch GT3.5

$455.99

$

In Stock, only 1 left!

0

7

Scag 48798

Switch, Ignition

$27.99

$

In Stock, Qty 20+

0

8

Scag 483957

Switch, PTO
(Superseded to 463034)

$37.99

$

In Stock, Qty 20+

0

9

Scag 483013

Relay

$20.99

$

In Stock, Qty 20+

0

10

Scag 481182

Indicator Light Assembly

$47.99

$

Usually ships in 2-12 days

0

11

Scag 04021-26

Nut, Elastic Stop #10-24

$0.99

$

In Stock, Qty 11

0

12

Scag 481637

Switch, N/O

$9.99

$

In Stock, Qty 20+

0

13

462xxx

Panel, Instrument w/Decal (Kohler EFI)

$

$

Not available

14

Scag 482032

Throttle Control

$32.99

$

In Stock, Qty 20+

0

15

Scag 481184

Voltmeter

$94.99

$

Usually ships in 2-12 days

0

16

Scag 481638

Switch, Seat

$15.99

$

In Stock, Qty 20+

0

17

Scag 483599

Module, Interlock

$133.99

$

In Stock, Qty 20+

0

18

Scag 04010-01

Screw, #10-32 x .5" Phillips Head

$0.99

$

In Stock, Qty 20+

0

19

Scag 483665

Battery, 350CCA (Not Available Through Scag)

$

$

Not available

20

Scag 04001-44

Bolt, Hex Head 1/4-20 x .5"

$0.99

$

In Stock, Qty 6

0

21

Scag 04020-02

Nut, Hex 1/4-20

$0.99

$

In Stock, Qty 10

0

22

Scag 48029-15

Cable, Battery Black (negative)

$17.99

$

In Stock, only 1 left!

0

23

Scag 48029-12

Cable, Battery Red (positive)

$17.99

$

In Stock, only 2 left!

0

24

Scag 484705

Wiring Harness, Main (Kohler EFI)

$343.99

$

Usually ships in 2-12 days

0

25

Scag 483081

Pulley, 5.45 OD x 1.125" Bore

$103.99

$

In Stock, only 3 left!

0

26

Scag 04021-10

Nut, Elastic Stop 5/16-18 Key

$0.99

$

In Stock, Qty 20+

0

27

Scag 424112

Mounting Bracket, Hour Meter

$10.99

$

Usually ships in 2-12 days

0

28

Scag 04010-11

Screw, #10-32 x 1.5" Phillips Head

$0.99

$

Usually ships in 2-12 days

0

29

Scag 484704

Adapter, Wiring Harness (Kohler EFI only)

$63.99

$

In Stock, only 1 left!

0

30

Scag 04063-23

Key, 1/4 x 1/4 x 3-1/4"

$1.99

$

In Stock, only 2 left!

0

31

Scag 04041-28

Flatwasher, 7/16-.469 x 1-3/4" x 1/4"

$2.99

$

In Stock, Qty 12

0

32

Scag 04030-05

Lockwasher, 7/16"

$0.99

$

In Stock, Qty 5

0

33

Scag 04001-101

Bolt, Hex Head 7/16-20 x 2-1/2" UNF

$1.99

$

In Stock, only 3 left!

0

34

Scag 04003-43

Bolt, Carriage #10-24 x 3/4"

$0.99

$

In Stock, Qty 6

0

35

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

36

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

37

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

38

Scag 423909

Backing Plate

$11.99

$

In Stock, only 1 left!

0

39

Scag 481716

Rubber Pad, Clutch Stop

$11.99

$

Usually ships in 2-12 days

0

40

Scag 422534

Plate, Backing

$5.49

$

In Stock, only 1 left!

0

41

Scag 48030-09

Clamp

$1.49

$

In Stock, Qty 5

0

42

Scag 483629

Fuse Holder

$7.49

$

In Stock, Qty 7

0

43

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

44

Scag 482588

Clip, Wire

$1.99

$

Usually ships in 2-12 days

0

45

Scag 483642

Double Fuse Assembly, Sealed

Note: (Incl. items 2, 42, 43, 44)

$43.99

$

Usually ships in 2-12 days

0
