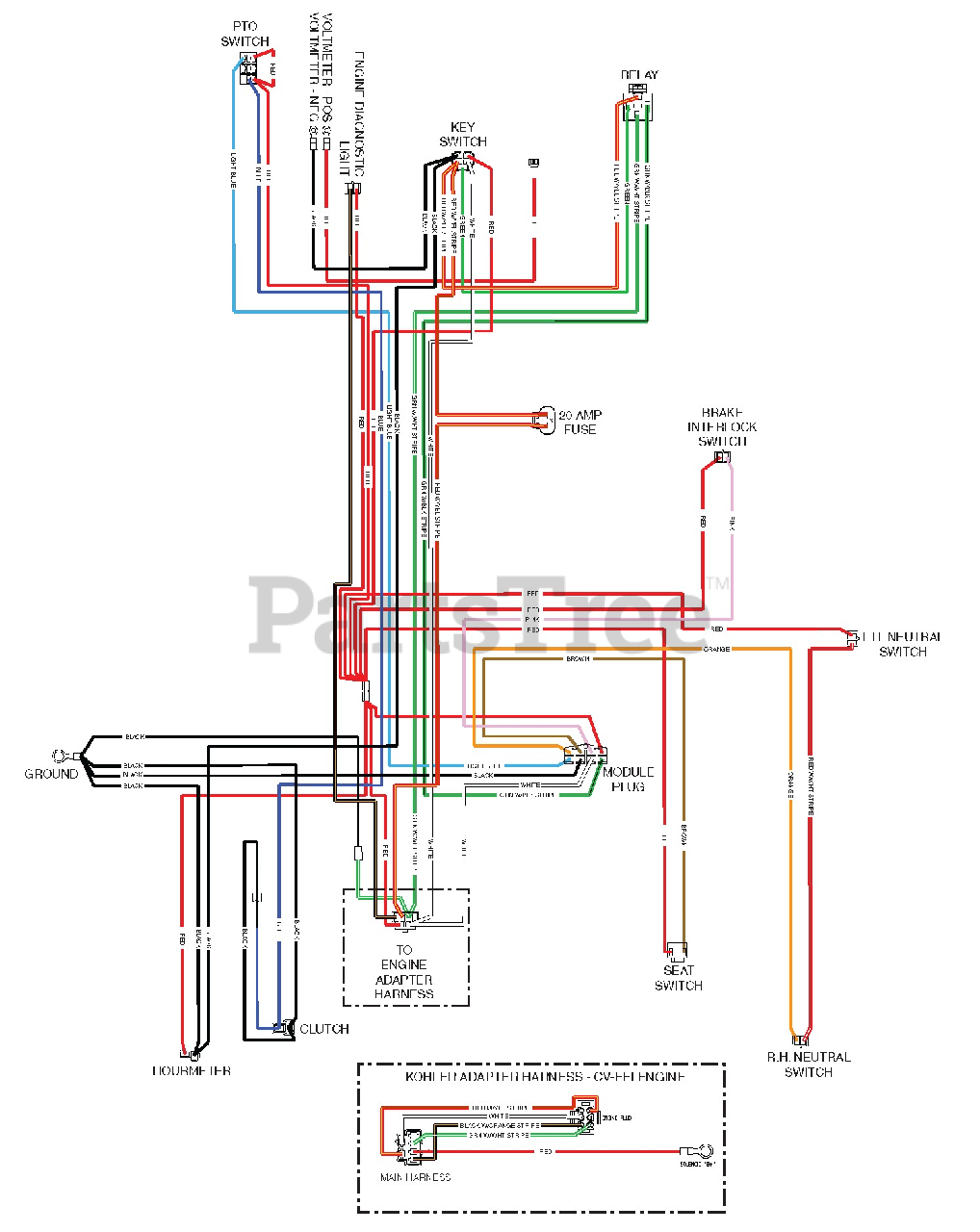

STC52V-25CV-EFI - Scag Tiger Cat 52" Zero-Turn Mower, 25hp Kohler (SN: K4300001 - K4399999) Electrical Schematic - Kohler EFI Parts Diagram

Tiger Cat 52" Zero-Turn Mower, 25hp Kohler

Electrical Schematic - Kohler EFI Parts Diagram

  • Title

No Part List Information Available

$

$

Not available
