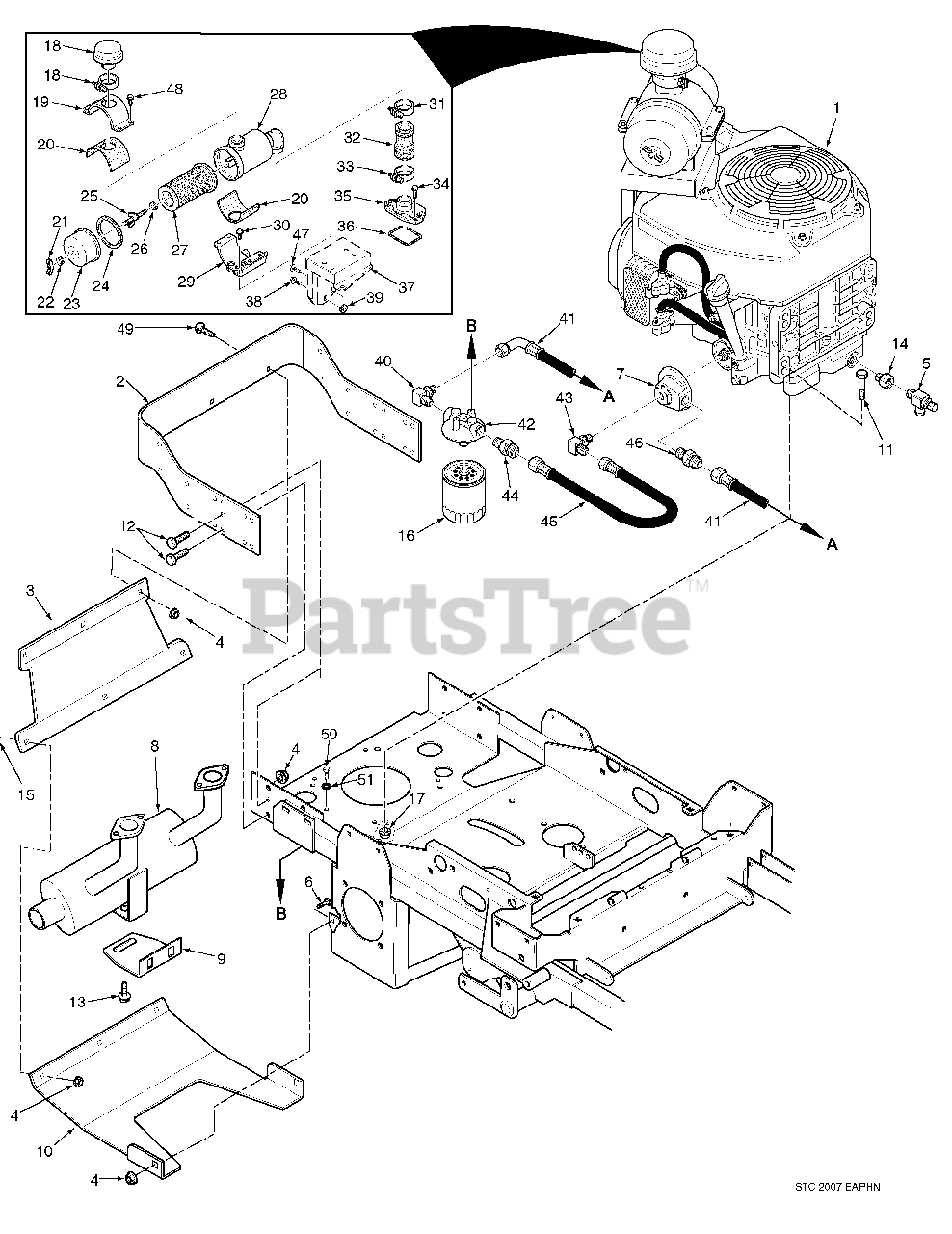

STC52V-24HN - Scag Tiger Cub 52" Zero-Turn Mower, 24hp Honda (SN: C6400001 - C6499999) Engine And Attaching Parts (Honda) Parts Diagram

Tiger Cub 52" Zero-Turn Mower, 24hp Honda

Engine And Attaching Parts (Honda) Parts Diagram

  • Title

1

Scag 482706

Engine

Note: Honda 24 HP (GXV670TAF2)

$

$

Currently unavailable

2

Scag 423770

Bumper, Rear

$115.99

$

In Stock, only 1 left!

0

3

Scag 424107

Shield, Rear

$60.99

$

Usually ships in 2-12 days

0

4

Scag 04019-04

Nut, Serr. Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

5

Scag 482354

Extension, Oil Drain 2.3"

$31.99

$

In Stock, only 1 left!

0

6

Scag 04003-23

Bolt, Carr. 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

7

Scag 482768

Adapter, Oil Filter

$77.99

$

Usually ships in 2-12 days

0

8

Scag 483267

Muffler, Honda

$369.99

$

Usually ships in 2-12 days

0

9

Scag 424133

Bracket, Muffler

$24.99

$

Usually ships in 2-12 days

0

10

Scag 423555

Plate, Skid

$146.99

$

Usually ships in 2-12 days

0

11

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 6

0

12

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

13

Scag 04011-12

Screw, 5/16-18 x 3/4" Self Tapping

$0.99

$

In Stock, only 1 left!

0

14

Scag 482995

Adapter, M20 x 1.5 / 3/8-18

$39.99

$

Usually ships in 2-12 days

0

15

Scag 04003-31

Bolt, Carr. 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

16

Scag 482770

Oil Filter

Note: Engine Oil Filter P/N Filtration Products - FPE15-10N-18 Baldwin - BT8323 Fleetguard - HF35099 Luberfiner - LFH5809 Wix - 51269 Zinga - BE10-18 (See chart for other filter options)

$43.99

$

Usually ships in 2-12 days

0

17

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

18

Pre-Cleaner, Engine Air

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only)

$

$

Not available

19

Honda 17208-ZJ1-840

Holder, Air Cleaner Upper

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only)

$35.99

$

Usually ships in 3-6 days

0

20

Honda 17207-ZJ1-840

Rubber, Air Cleaner Holder

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only)

$16.99

$

Usually ships in 3-6 days

0

21

Honda 90203-ZA0-800

Wing Nut - 16mm

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only)

$4.49

$

In Stock, only 1 left!

0

22

Honda 17232-891-000

Grommet, Air Cleaner

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only)

$5.99

$

In Stock, Qty 6

0

23

Honda 17230-759-003

Cover, Air Cleaner

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only)

$59.99

$

Usually ships in 3-6 days

0

24

Honda 17253-759-003

Seal, Air Cleaner

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only)

$17.99

$

Usually ships in 3-6 days

0

25

Honda 90113-759-003

Bolt, Air Cleaner

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only)

$14.99

$

Usually ships in 3-6 days

0

26

Honda 90502-759-003

Washer, Air Cleaner

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only)

$6.99

$

Usually ships in 3-6 days

0

27

Honda 17210-759-013

Element, Air Cleaner

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only)

$39.99

$

In Stock, only 1 left!

0

28

Honda 17220-ZN2-810

Housing, Air Cleaner

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only)

$96.99

$

Usually ships in 3-6 days

0

29

Honda 17209-ZJ1-840

Holder, Air Cleaner Lower

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only)

$77.99

$

Usually ships in 3-6 days

0

30

Honda 95701-06016-00

Bolt, Flange

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only) (6mm x 16)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 95018-50250

Band, Air Cleaner Connecting Tube

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only)

$10.99

$

Usually ships in 3-6 days

0

32

Honda 17251-ZN2-000

Tube, Air Cleaner Connecting

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only)

$25.99

$

Usually ships in 3-6 days

0

33

Honda 95018-58250

Band, Air Cleaner Connecting Tube

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only)

$7.49

$

Usually ships in 3-6 days

0

34

Honda 95701-06028-00

Bolt, Flange

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only) (6mm x 28)

$2.49

$

In Stock, Qty 7

0

35

Honda 17418-ZN1-000

Joint B, Connecting Tube

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only)

$14.99

$

In Stock, only 1 left!

0

36

Honda 17229-ZN1-000

Seal, Air Cleaner Housing

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only)

$7.99

$

In Stock, only 1 left!

0

37

Honda 17222-ZN2-000

Stay, Engine Air Cleaner

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only)

$70.99

$

Usually ships in 3-6 days

0

38

Honda 90014-952-000

Bolt, Flange

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only) (6mm x 14)

$2.99

$

In Stock, only 4 left!

0

39

Honda 91552-763-A00

Collar, Seat

Note: (Avail. through Honda Only) Parts Available though Local Honda Distributor Only.

$3.49

$

Usually ships in 3-6 days

0

40

Scag 48350-14

Elbow, 90 Degree 3/8 - 3/8

$14.99

$

Usually ships in 2-12 days

0

41

Scag 482760

Hose, Remote Oil Filter Inlet

$84.99

$

Usually ships in 2-12 days

0

42

Scag 482769

Filter Head

$33.99

$

Usually ships in 2-12 days

0

43

Scag 48350-14

Elbow, 90 Degree 3/8 - 3/8

$14.99

$

Usually ships in 2-12 days

0

44

Scag 48572-09

Tube, Union 1/2 - 3/8

$11.99

$

Usually ships in 2-12 days

0

45

Scag 482759

Hose, Remote Oil Filter Return

$64.99

$

Usually ships in 2-12 days

0

46

Scag 48572-09

Tube, Union 1/2 - 3/8

$11.99

$

Usually ships in 2-12 days

0

47

Honda 95701-08016-00

Bolt, Flange

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only) (8mm x 16)

$2.49

$

In Stock, Qty 7

0

48

Honda 95701-06012-00

Bolt, Flange

Note: Parts Available though Local Honda Distributor Only. (Avail. through Honda Only) (6mm x 12)

$2.49

$

In Stock, Qty 19

0

49

Scag 04104-01

Bolt, 3/8-16 x 1" Torx

$3.99

$

Usually ships in 2-12 days

0

50

Scag 04001-06

Bolt, Hex Head 1/4-20 x 5/8"

$0.99

$

In Stock, only 3 left!

0

51

Scag 04030-02

Lockwasher, 1/4" Spring

$0.99

$

In Stock, Qty 20+

0
