STC52V-23KA - Scag Tiger Cub 52" Zero-Turn Mower, 23hp Kawasaki (SN: B5200001 - B5299999) Roll Over Protection System Parts Diagram

Tiger Cub 52" Zero-Turn Mower, 23hp Kawasaki

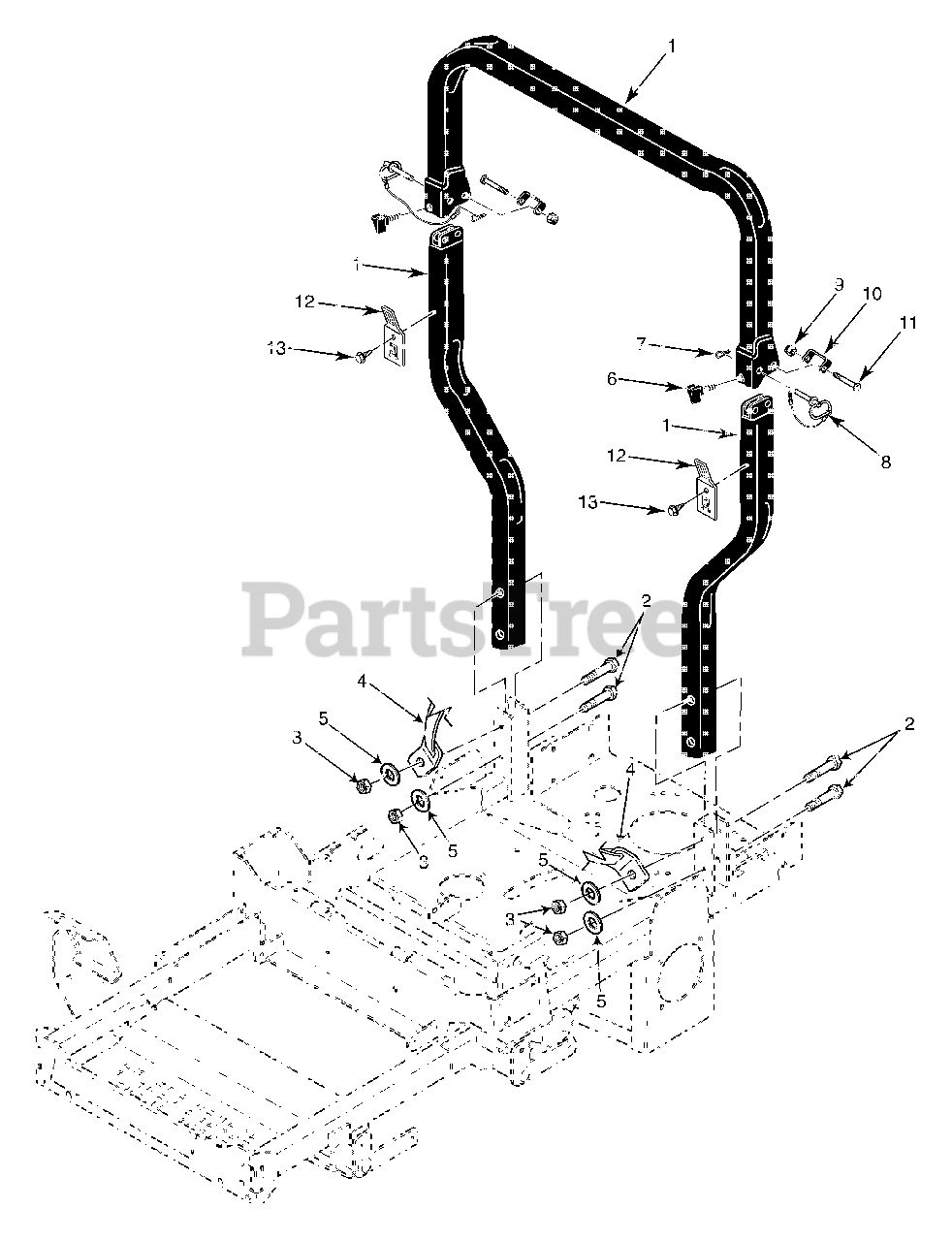

Roll Over Protection System Parts Diagram

  • Title

1

Scag 9512

STC Foldable ROPS Accessory

Note: (incl. all items listed)

$407.99

$

Usually ships in 2-12 days

0

2

Scag 04001-145

Bolt, Hex Head 1/2-13 x 3-1/2"

$2.49

$

In Stock, only 3 left!

0

3

Scag 04021-19

Nut, Center Lock 1/2-13

$0.99

$

In Stock, Qty 5

0

4

Scag 483150

Seat Belt

$173.99

$

Usually ships in 2-12 days

0

5

Scag 04040-13

Flatwasher, 1/2-.562 x 1.375 x .109

$0.99

$

In Stock, Qty 20+

0

6

Scag 483301

Thumb Screw, 5/16-18 NC x 3-4"

$7.99

$

Usually ships in 2-12 days

0

7

Scag 04062-06

Hair Pin, Cotter

$3.49

$

Usually ships in 2-12 days

0

8

Scag 483262

Pin
(Superseded to 484168)

$27.99

$

In Stock, only 4 left!

0

9

Scag 04021-19

Nut, Center Lock 1/2-13

$0.99

$

In Stock, Qty 5

0

10

Scag 424407

Bracket, Stop

$32.99

$

In Stock, only 1 left!

0

11

Scag 04001-145

Bolt, Hex Head 1/2-13 x 3-1/2"

$2.49

$

In Stock, only 3 left!

0

12

Scag 424400

Bracket, Seat Belt Hanger
(Superseded to 424462)

$43.99

$

Usually ships in 2-12 days

0

13

Scag 04011-13

Screw, 1/4-20 x 3/4"
(Superseded to 04011-14)

$0.99

$

In Stock, Qty 13

0
